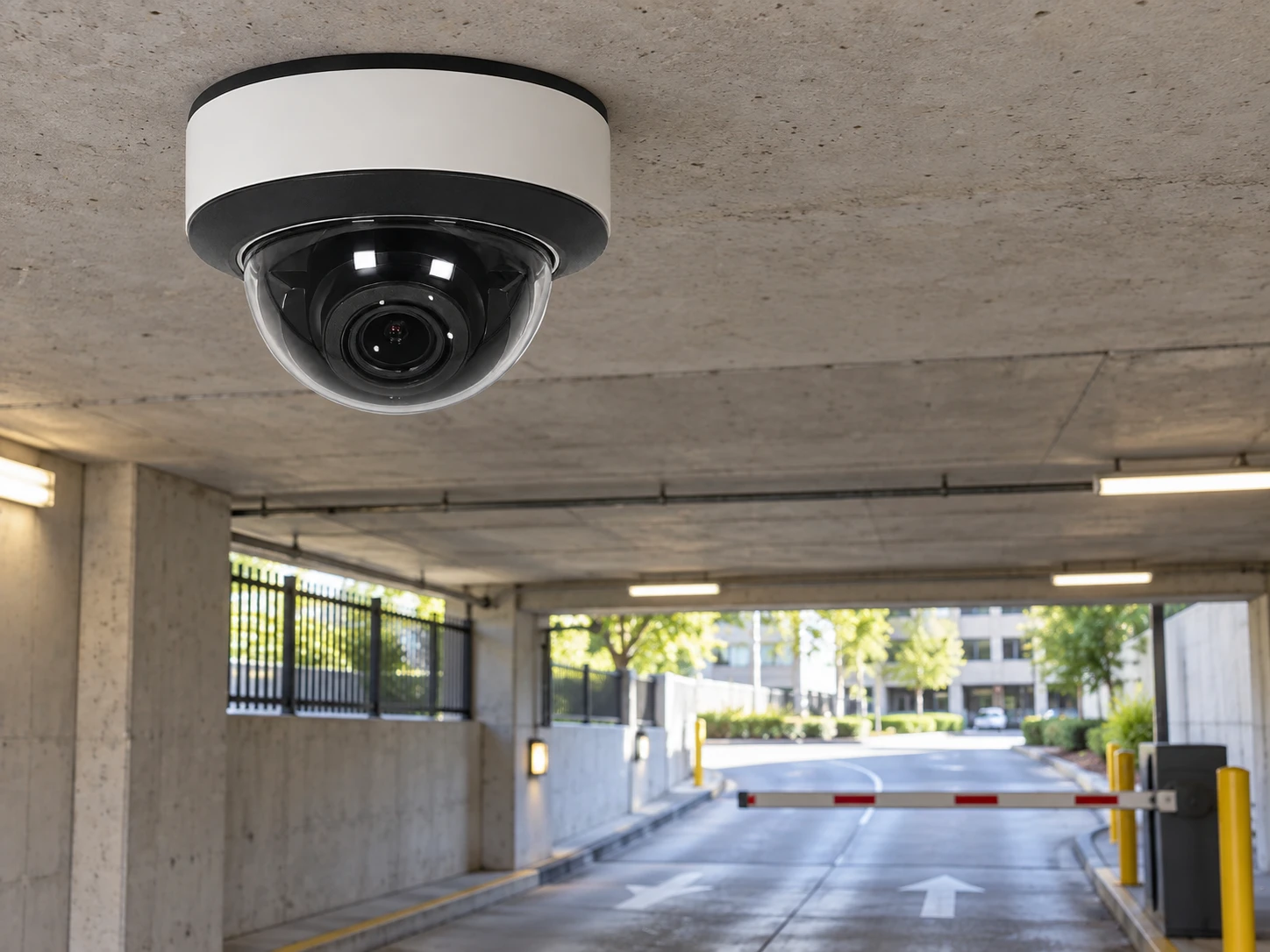

HDVD-SB8IRZ 8MP Motorized HD Vandal Dome — Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.

1 of 8

Open full-resolution image

HDVD-SB8IRZ

Name: HDVD-SB8IRZ 8MP Motorized HD Vandal Dome
Brand: Sibell
SKU: HDVD-SB8IRZ

8MP Motorized HD Vandal Dome

The motorized lens lets you refine the view of this 8MP HD vandal dome after mounting. It belongs to the coax camera range. Confirm supported camera control, recording resolution and signal format with the selected DVR before committing to a system design.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Key features

Feature illustrations are representative. See specifications for this model.

Resolution: A monitor shows a brick courtyard with a circular zoom inset revealing brick and leaf detail.

8MP 4K Resolution

Ultra HD 3840x2160 resolution captures crystal clear details at 15fps.

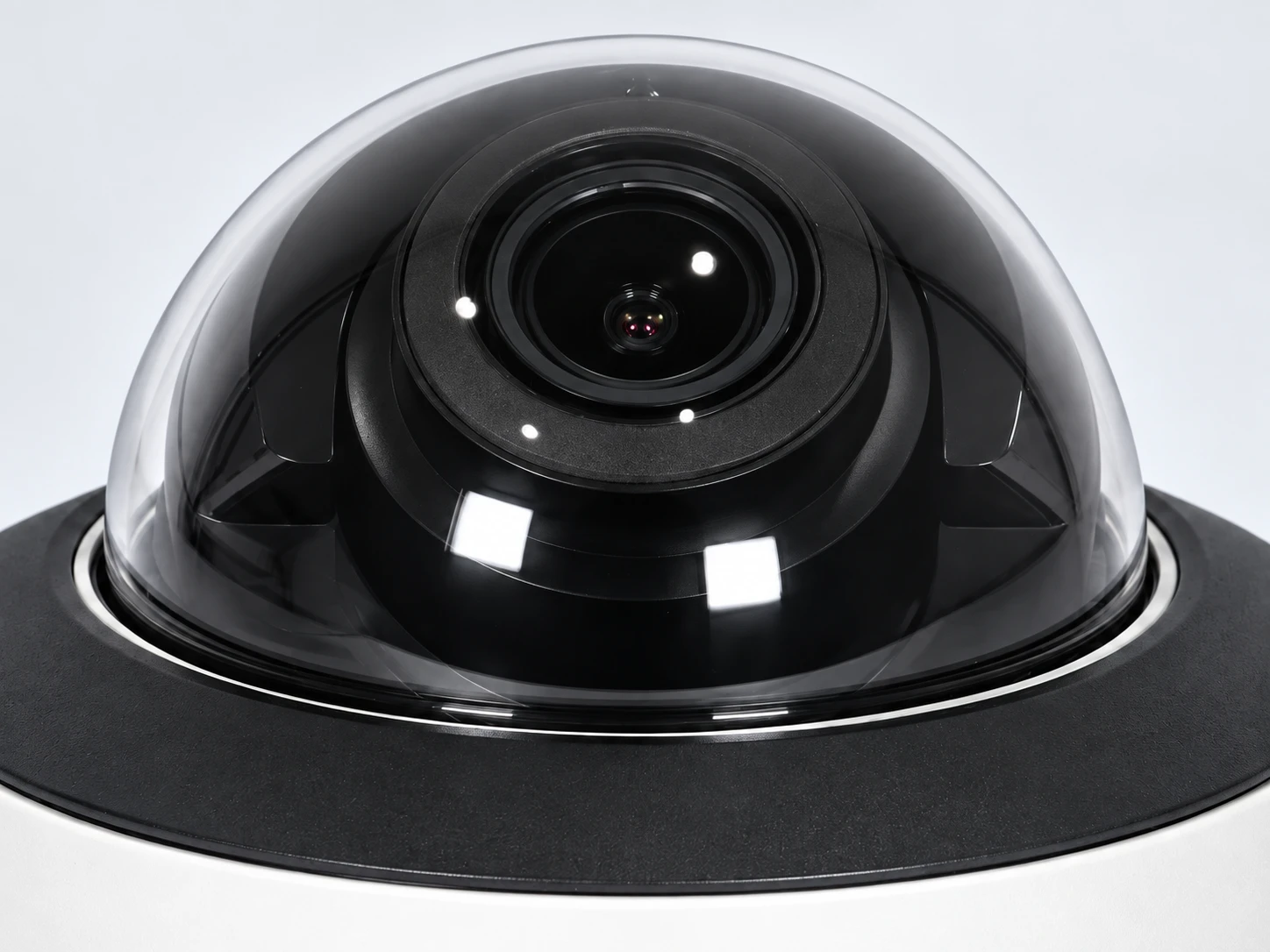

Motorized 2.8-12mm Lens

Remote zoom and focus adjustment for flexible field of view control.

Feature illustration: White dome security camera fixed beneath an exterior soffit, rain streaks and crisp water droplets, approaching storm beyond a commercial entrance

IP67 & IK10 Rated

Weatherproof and vandal-resistant housing for harsh environments.

Infrared night vision: A wall-mounted camera at dusk beside a monitor showing a clear black-and-white view of a side path.

30m IR Night Vision

Smart IR illumination provides clear images up to 30 meters in darkness.

Feature illustration: 4-FORMAT COMPATIBILITY

Multi-Format Output

Supports AHD, TVI, CVI, and CVBS for flexible system compatibility.

COC OSD Control

Control camera settings remotely over coax cable without extra wiring.

WDR: A lobby camera view shows both the reception desk and the bright, sunlit courtyard outside clearly.

Digital WDR & 3D NR

Enhanced image quality in challenging lighting with noise reduction.

Feature illustration: Technician connecting a real BNC coax plug to the coax input of an unbranded security DVR beside a compatible bullet camera, crisp connector detail, no Ethernet substitution

Easy Plug-and-Play Installation

Quick and simple setup with plug-and-play coax connections—no complicated configurations or network knowledge required.

Remote viewing: A person in a cafe holds a smartphone showing a live view of a home entrance.

Remote Viewing via Mobile App

Access live and recorded footage from anywhere using a secure mobile app. Stay connected with real-time alerts, playback options, and remote management of your entire system.

Feature illustration: 5-FORMAT COMPATIBILITY

Compatible with TVI / CVI / AHD / Analog

Supports multiple video formats including TVI, CVI, AHD, and traditional analog—making integration with existing coax systems easy and flexible.

Technical specifications

Image Sensor	1/2.5" CMOS
Resolution	8MP (3840x2160)
Frame Rate	15fps
Video Output	AHD / TVI / CVI / CVBS
Image System	PAL / NTSC Auto
Min. Illumination	Color: 0.01 [email protected] , AGC ON; B/W: 0 lux with IR
S/N Ratio	≥52dB (AGC OFF)
Type	Motorized zoom lens
Focal Length	2.8-12mm
Lens Mount	D14
IR Distance	20~30m
Smart IR	Yes
Day & Night	ICR
Digital WDR	Yes
3D NR	Yes
AGC	Yes
BLC	Yes

Auto White Balance	Yes
LSC	Yes
Saturation	Yes
Sharpness	Yes
Contrast	Yes
Auto Defect Correction	Yes
OSD Control	COC Control
Languages	11 languages
Power Supply	DC12V (±10%)
Power Consumption	IR OFF: <2W; IR ON: <5W
Dimensions	Ф141 x 100.2mm
Weight	Approx. 0.83KG
Angle Adjustment	Pan: 0°~345°; Tilt: 0°~77°; Rotation: 0°~345°
Ingress Protection	IP67 & IK10
Operating Temperature	-30°C ~ 50°C
Humidity	10% ~ 90% (relative humidity)
