24/7 Full Colour
White-light LED switches on automatically at low illumination for colour footage after dark.
20 - 30 m LED Range. Rated white-light view distance, with an image at 0 lux when the LED is on.

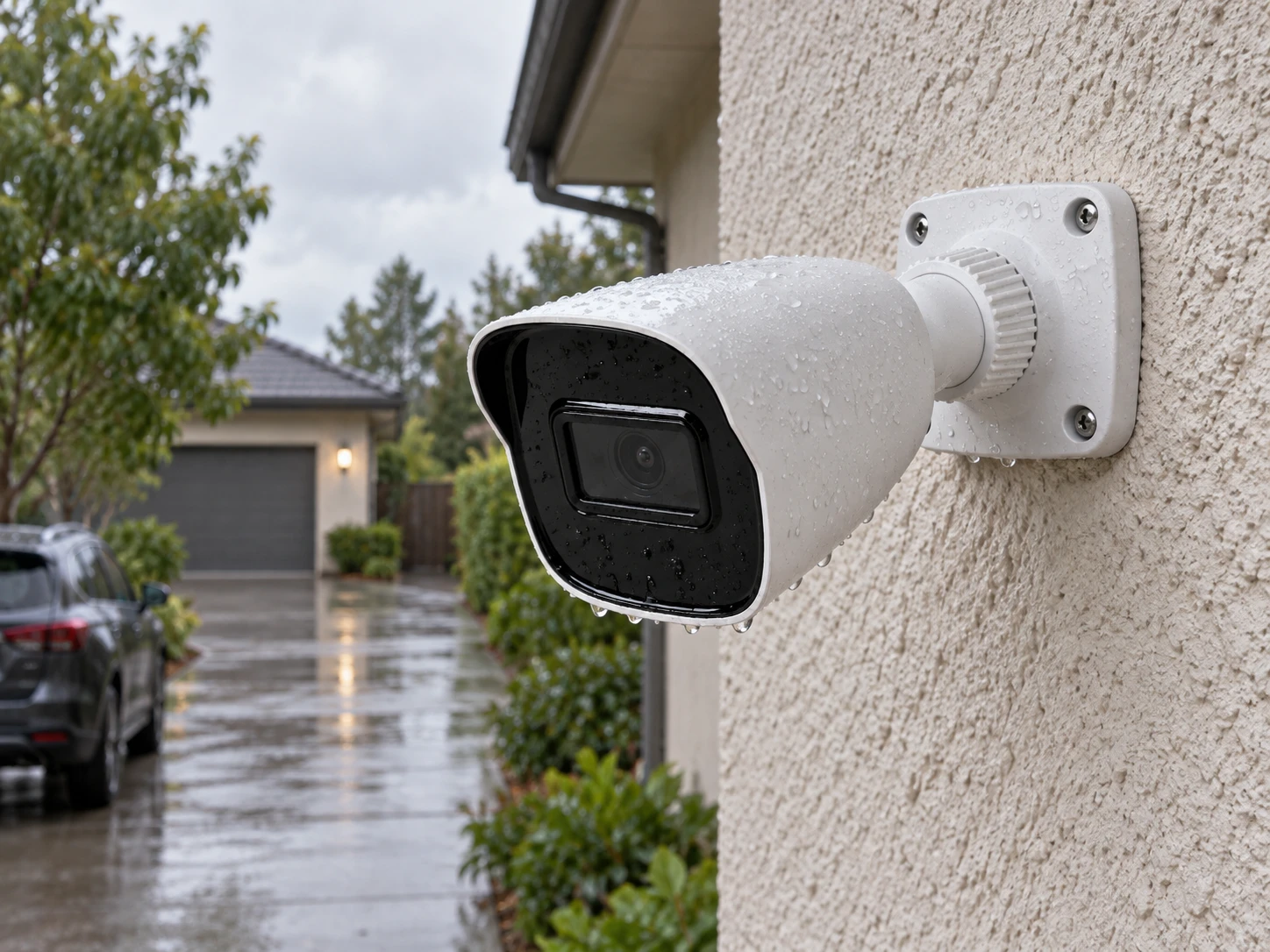

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.
1 of 6
Open full-resolution image HDOB-SBE5IR28F

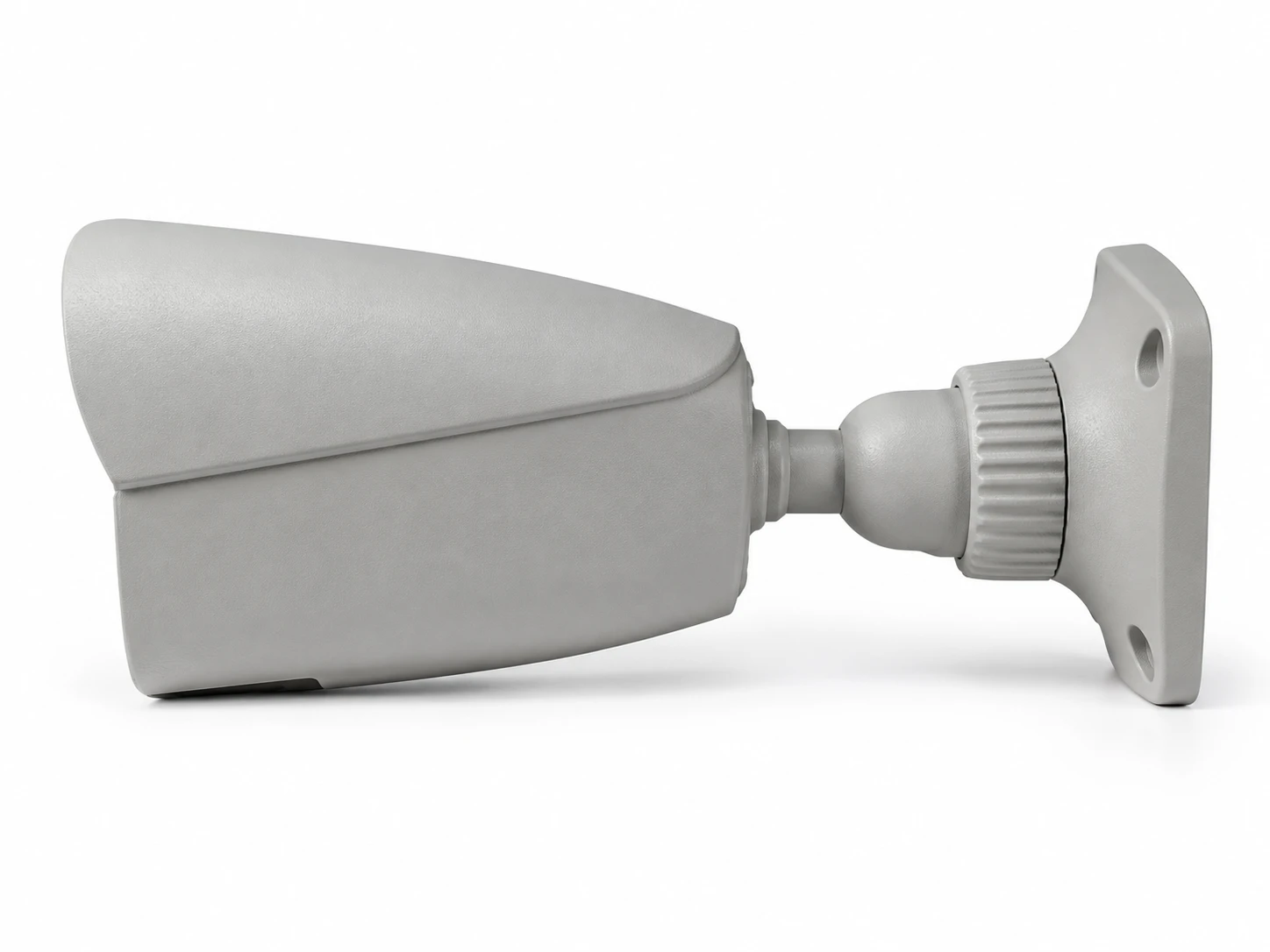

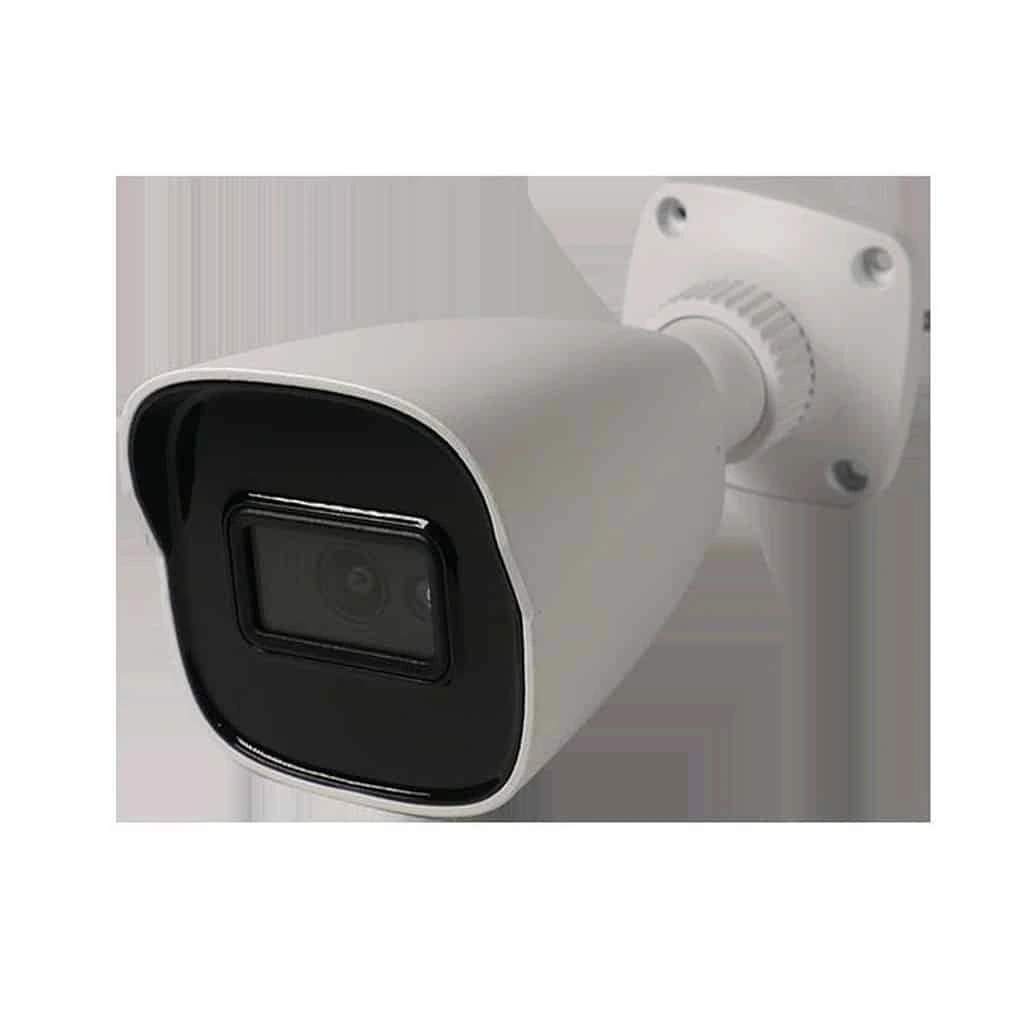

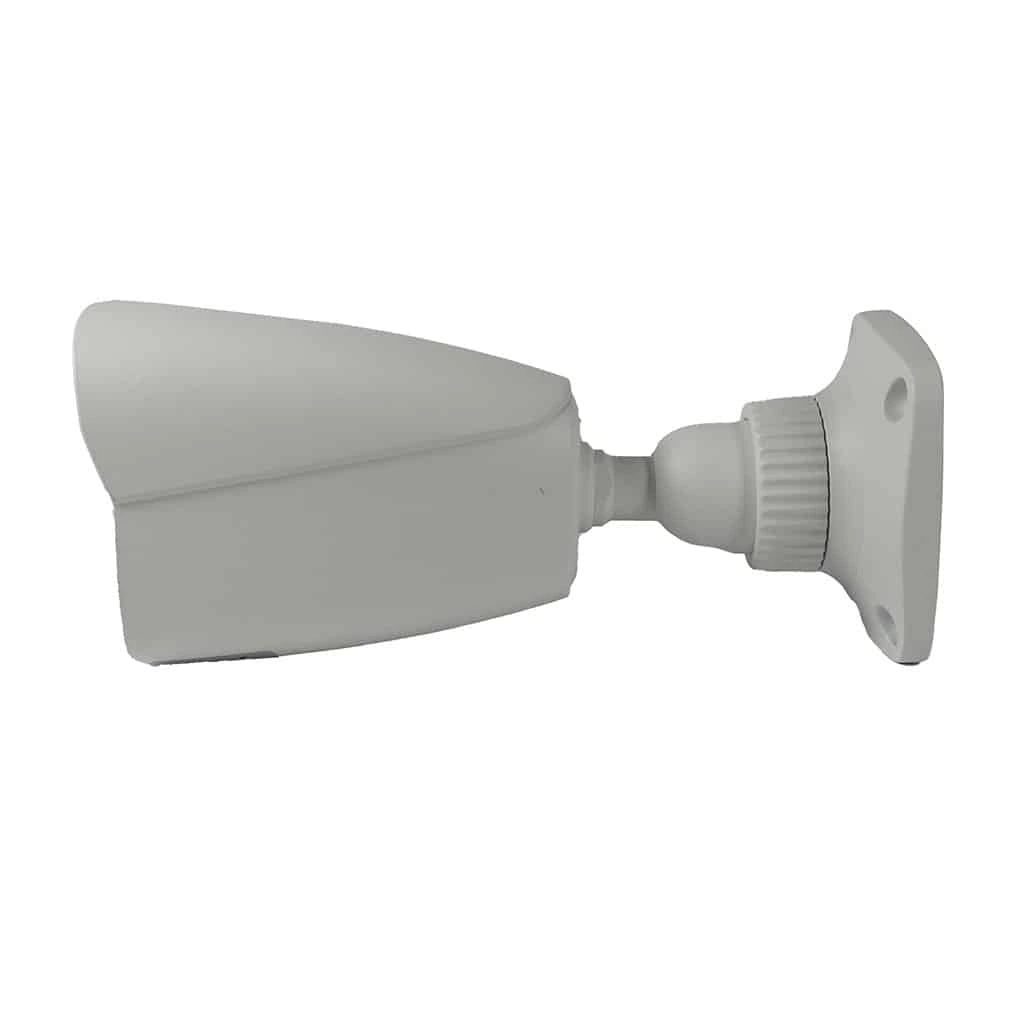

5MP HD Over Coax 24/7 Color 2.8mm Bullet Security Camera
A 5MP bullet for coax systems that holds color at night using a white LED rather than infrared, lighting to between 20 and 30 m. The 2.8 mm fixed lens sits behind an IP67 housing, and the video output switches between AHD, TVI and CVI so the camera can join an existing coax recorder without changing format; the settings are reached through the on-screen menu over the coax run. It takes 12 V DC and draws under 3 W with the LED on.
Pricing and availability are provided by our authorized reseller.
Key features
Feature illustrations are representative. See specifications for this model.
5MP Resolution
2560 x 1936 on a 1/2.5" CMOS sensor, 20fps at 5MP and 30fps at 4MP.
Fixed 2.8mm Lens
Wide fixed lens on an M12 mount - no focus or zoom adjustment on site.
AHD / TVI / CVI
Switchable coax output, so it works with the recorder already installed.
Menu Over Coax
OSD settings driven from the recorder through COC control, not at the camera.
IP67 Rated
Sealed housing rated for -30 to 50 C operation.
Easy Plug-and-Play Installation
Quick and simple setup with plug-and-play coax connections—no complicated configurations or network knowledge required.
Remote Viewing via Mobile App
Access live and recorded footage from anywhere using a secure mobile app. Stay connected with real-time alerts, playback options, and remote management of your entire system.
Wide Dynamic Range (WDR)
WDR balances lighting in high-contrast scenes, ensuring clear video by brightening dark areas and dimming overly bright zones—ideal for entrances, windows, and any areas with shifting light conditions.
Long-Distance Transmission (up to 1600ft)
Transmit HD video over coax cable up to 1600 feet without signal degradation, making it ideal for large properties or distant camera runs.
Technical specifications
| Image Sensor | 1/2.5" CMOS |
|---|---|
| Resolution | 5MP |
| Image Size | 2560 x 1936 |
| Lens | 2.8 mm fixed |
| Lens Mount | M12 |
| Video Output | AHD / TVI / CVI |
| Image System | PAL / NTSC |
| Frame Rate | 5MP at 20fps / 4MP at 30fps |
| Electronic Shutter | Auto; 1/60s - 1/100000s (NTSC) |
| Minimum Illumination | 0 lux with LED on |
| LED View Distance | 20 - 30 m (66 - 98 ft) |
| Signal to Noise Ratio | 52dB or better (AGC off) |
| Ingress Protection | IP67 |
| Function Control | OSD via COC (coax) control |
| Smart LED | Yes |
| Digital WDR | Yes |
| Digital Noise Reduction | Yes, 2D DNR |
|---|---|
| Global Exposure | Yes |
| Central Exposure | Yes |
| AGC | Yes |
| Auto White Balance | Yes |
| BLC | Yes |
| Contrast | Yes |
| Sharpness | Yes |
| Defect Correction | Auto |
| Angle Adjustment | Pan 0-360 deg; Tilt 0-80 deg; Rotation 0-360 deg |
| Power Supply | DC12V (+/- 10%) |
| Power Consumption | LED off: under 1.5W; LED on: under 3W |
| Operating Environment | -30 to 50 C, 10% to 90% relative humidity |
| Dimensions | 165.7 x 69 x 69 mm (6.52 x 2.71 x 2.71 in) |
| Weight | Approx. 0.37 kg (0.81 lb) |
A standalone PDF datasheet is not currently linked for this product. Product and compatibility information is available from the reseller.
