16 Channels
Records up to 16 cameras with 96 Mbps total bandwidth.

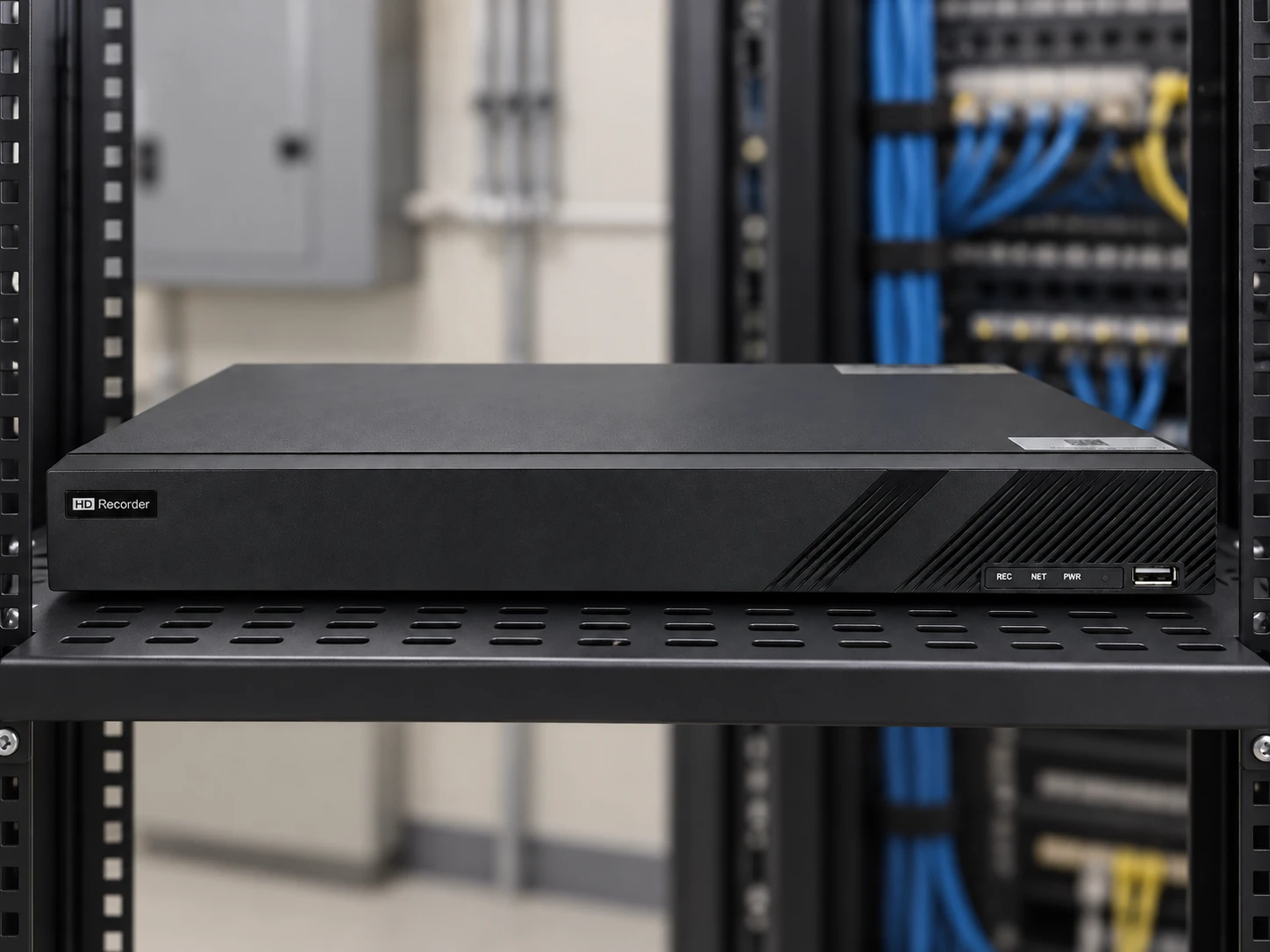

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.
1 of 6
Open full-resolution image PENDVR-SB16M-4K

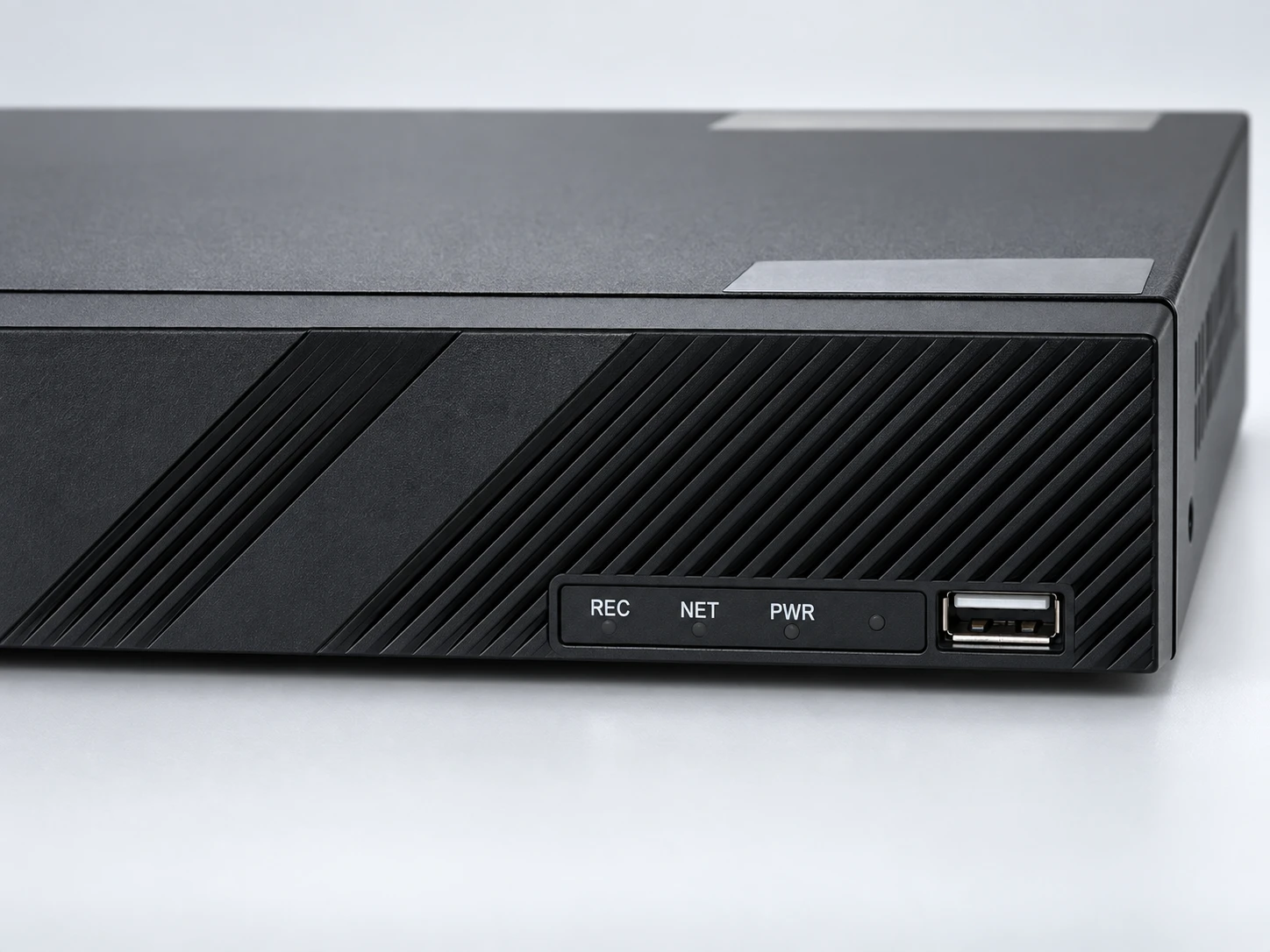

16CH Sibell 4K Penta-Brid DVR (1U)
A sixteen-channel Penta-Brid recorder in a 1U chassis. It is a candidate for installations with supported coax camera formats. Compare per-channel recording limits and storage requirements, especially when mixing resolutions or planning to retain existing cameras.
Pricing and availability are provided by our authorized reseller.
Key features
Feature illustrations are representative. See specifications for this model.
2 SATA Bays
Storage capacity sized to the recorder's channel count and retention needs.
Modern Compression
H.265 keeps storage consumption down.
Free Remote Apps
Remote viewing via Super Live Plus.

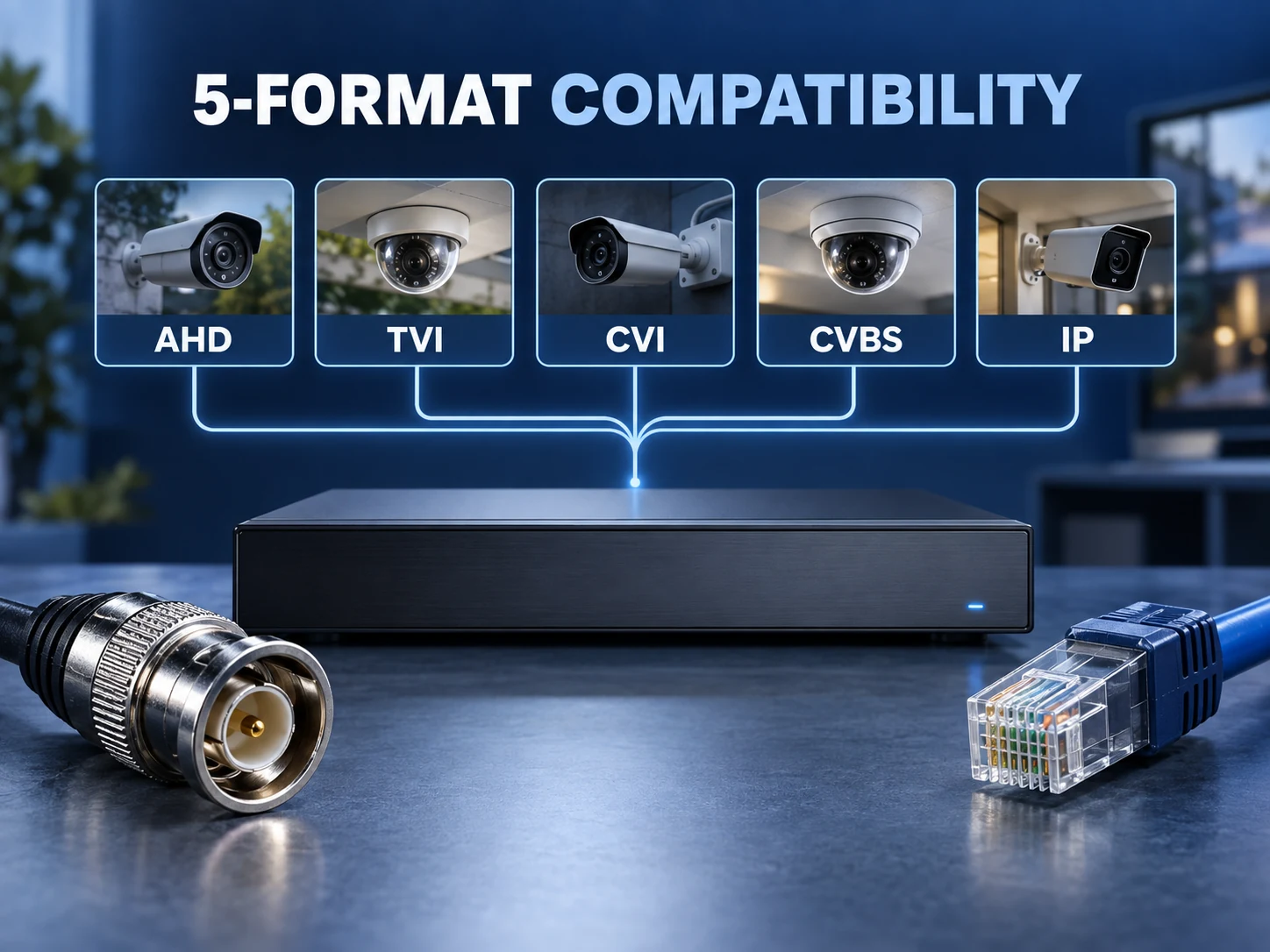

Penta-Brid Inputs
Records HD-over-coax (AHD/TVI/CVI), legacy analog, and IP cameras together.
NDAA Compliant
Conforms to National Defense Authorization Act requirements.
Technical specifications
| Number Of Cameras | 16 |
|---|---|
| Number Of SATA Connections | 2 |
| Has Alarm Inputs / Outputs | Yes |
| Video Output Types | HDMI/VGA/BNC |
| Video Output Resolutions: | 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1 |
| Size | 1U |
| Resolutions Capable | 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps |
| Max Bandwidth | 96 Mbps |
| Display Screen Split | 1/4/6/8/9/13/16/25 |
| Compression of Video | H.265 |
| Connection Apps | Super Live Plus |
|---|---|
| Perimeter Protection | No |
| Object Detection | No |
| Face Detection | No |
| Face Recognition | No |
| Smart Motion Detection | No |
| LPR | No |
| Available installed storage | 2TB, 4TB, 6TB, 10TB, 12TB, 16TB, 20TB |
| Largest offered drive configuration | 2 × 10TB Seagate surveillance drives |
Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
