8 Channels
Records up to 8 cameras with 96 Mbps total bandwidth.

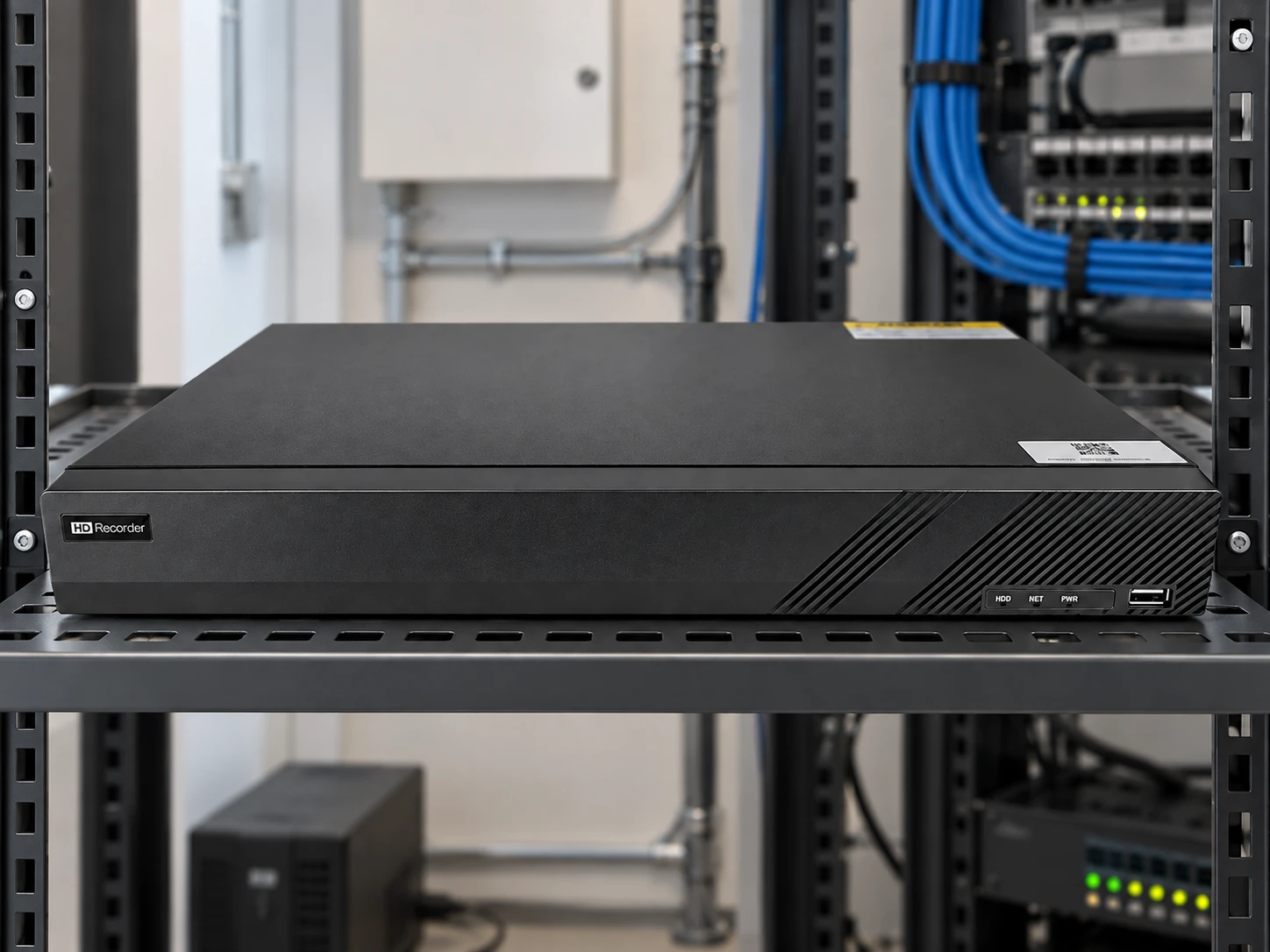

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.
1 of 7

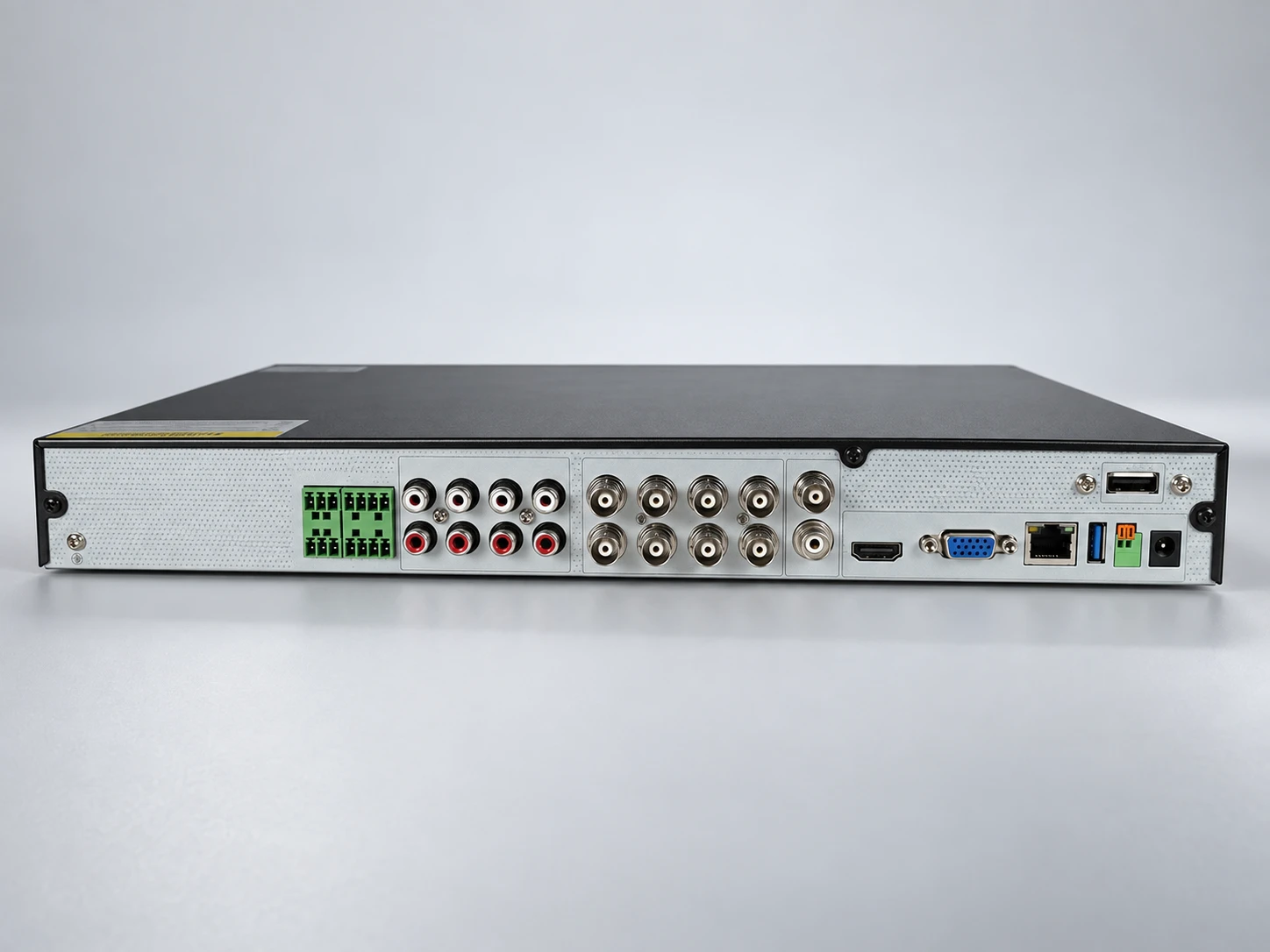

Open full-resolution image PENDVR-SB8ME-4K-H
8CH Sibell 4K H.265+ Penta-Brid DVR
An eight-channel 4K Penta-Brid DVR with H.265+ listed in its feature set. Use the recording specifications to compare this model with four- and sixteen-channel options. Confirm the performance available at your selected resolution instead of treating maximum input resolution as recording speed.
Pricing and availability are provided by our authorized reseller.
Key features
Feature illustrations are representative. See specifications for this model.
2 SATA Bays
Storage capacity sized to the recorder's channel count and retention needs.
Modern Compression
H.265+ keeps storage consumption down.
Recorder-Level AI
Perimeter Protection, Smart Motion Detection.
Penta-Brid Inputs
Records HD-over-coax (AHD/TVI/CVI), legacy analog, and IP cameras together.
NDAA Compliant
Conforms to National Defense Authorization Act requirements.
Technical specifications
| Number Of Cameras | 8 |
|---|---|
| Number Of SATA Connections | 2 |
| Has Alarm Inputs / Outputs | Yes |
| Video Output Types | HDMI/VGA/BNC |
| Video Output Resolutions: | (3840 × 2160) / (1920 × 1080) / (1280 × 1024) / (1024 × 768) |
| Size | 1U |
| Resolutions Capable | 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 3MP/1080P/720P/WD1/D1 |
| Max Bandwidth | 96 Mbps |
| Display Screen Split | 1/4/6/8/9/13/16 |
| Compression of Video | H.265+ |
|---|---|
| Perimeter Protection | Yes |
| Object Detection | No |
| Face Detection | No |
| Face Recognition | No |
| Smart Motion Detection | Yes |
| LPR | No |
| Available installed storage | 2TB, 4TB, 6TB, 10TB, 12TB, 16TB, 20TB |
| Largest offered drive configuration | 2 × 10TB Seagate surveillance drives |
Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
