32 Channels
Records up to 32 cameras with 128 Mbps total bandwidth.

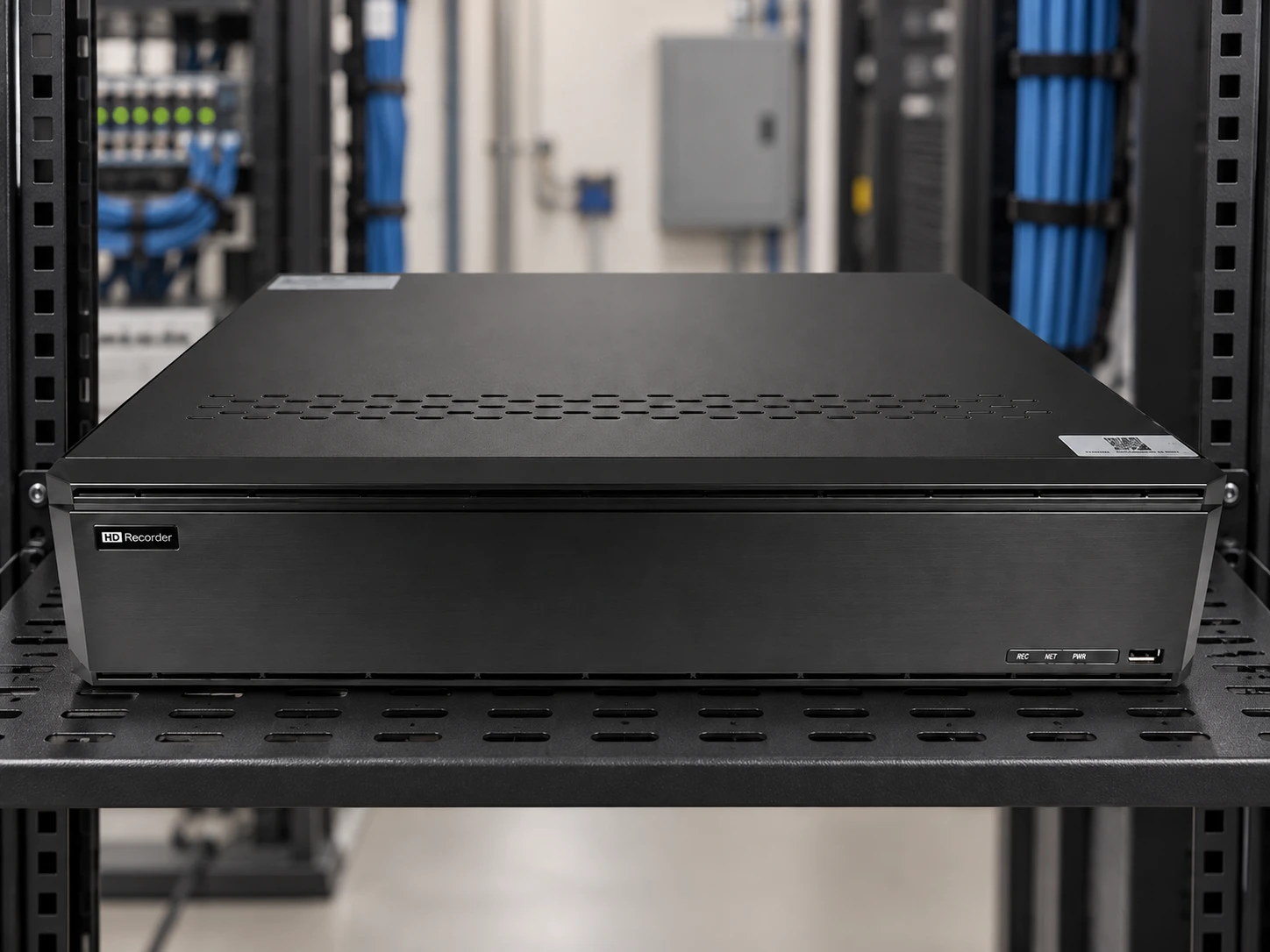

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.
1 of 7
Open full-resolution image PENDVR-SB324K

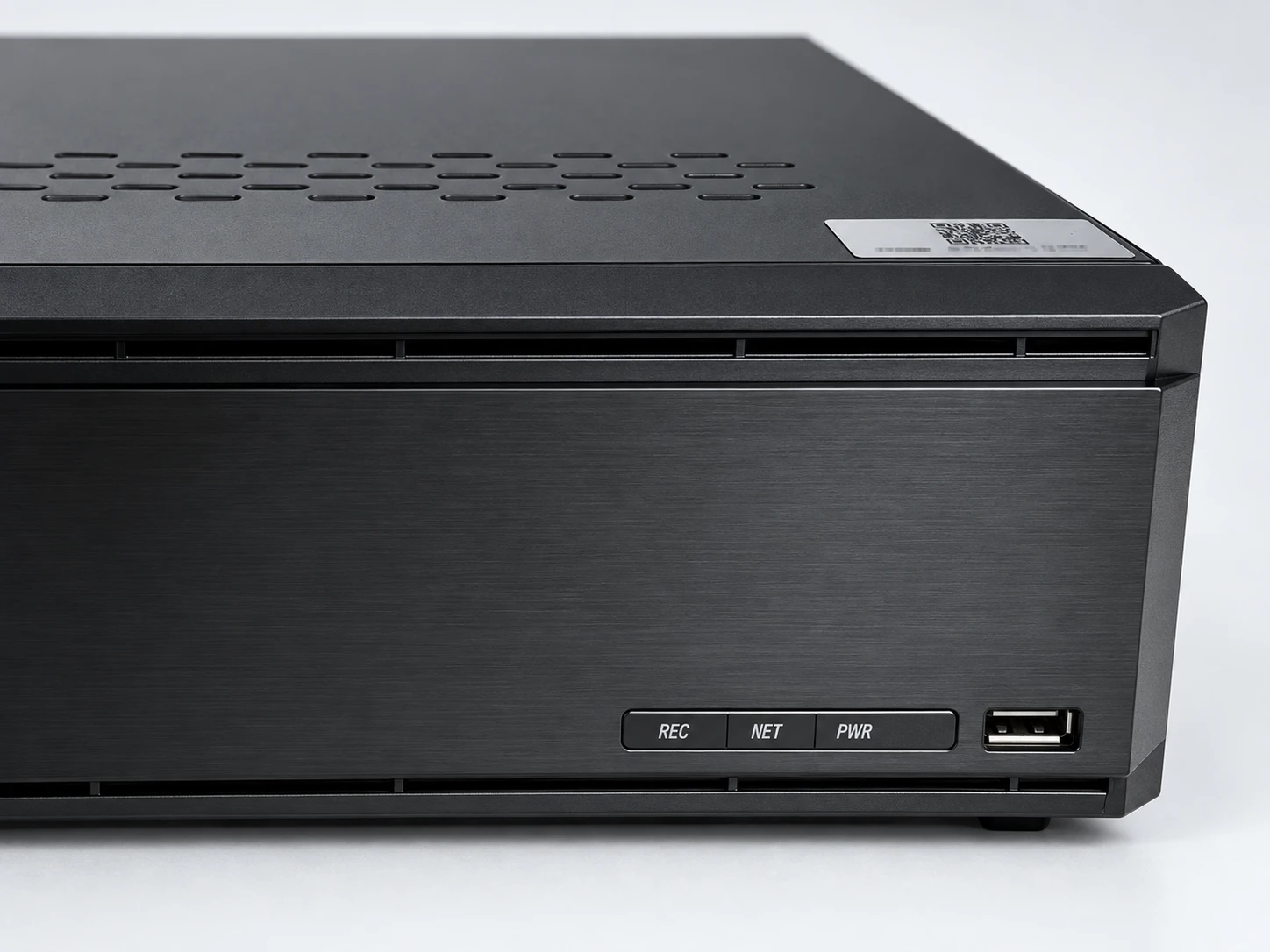

32CH Sibell 4K Penta-Brid DVR (2U, 8 SATA)
A 32-channel Penta-Brid DVR with eight SATA connections in a 2U chassis. This configuration combines a larger camera count with multiple drive connections. Check supported input formats and recording rates for each planned camera type when designing a mixed system.
Pricing and availability are provided by our authorized reseller.
Key features
Feature illustrations are representative. See specifications for this model.

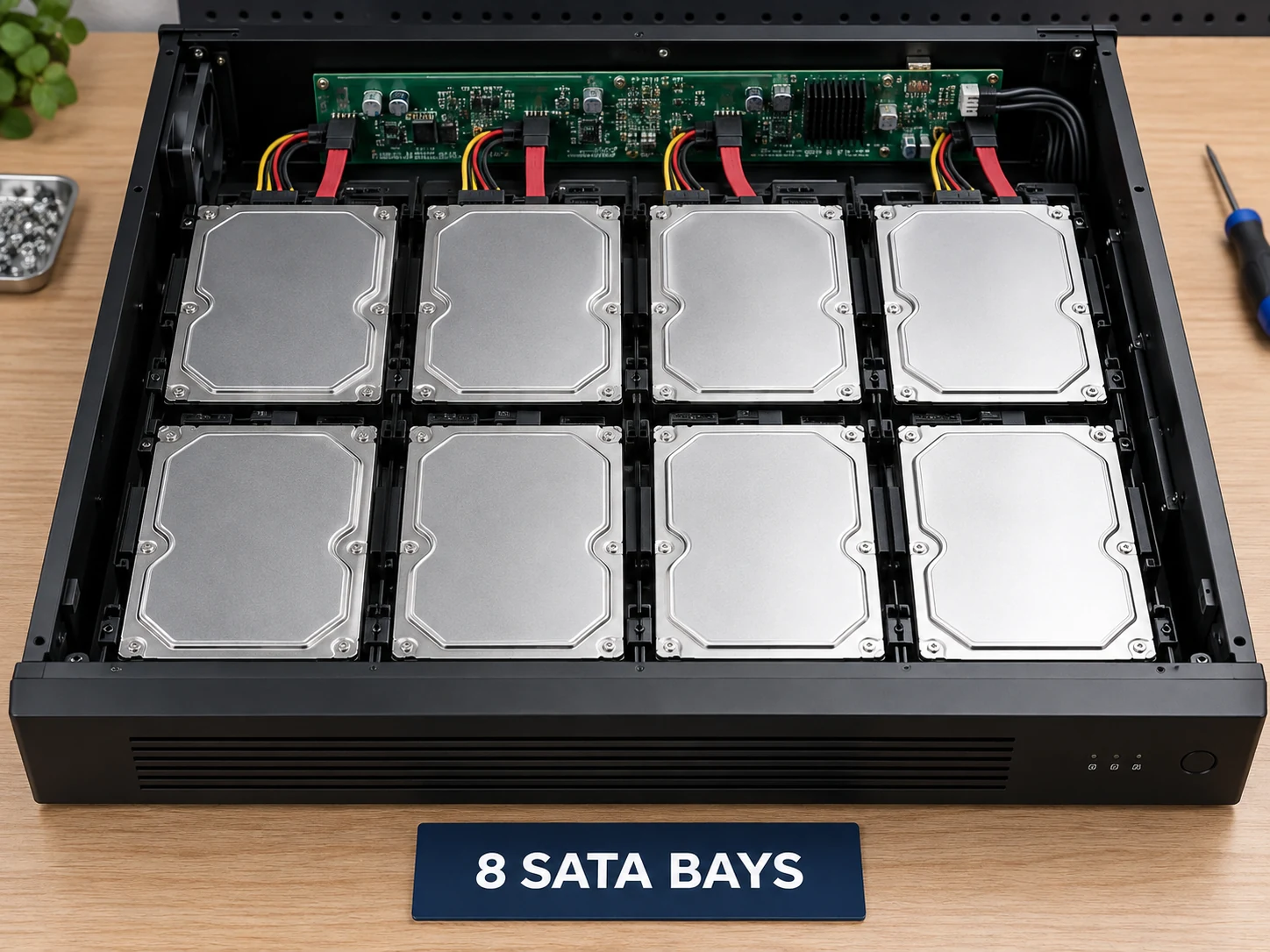

8 SATA Bays
Storage capacity sized to the recorder's channel count and retention needs.
Modern Compression
H.264 / H.265 keeps storage consumption down.
Penta-Brid Inputs
Records HD-over-coax (AHD/TVI/CVI), legacy analog, and IP cameras together.
NDAA Compliant
Conforms to National Defense Authorization Act requirements.
Technical specifications
| Number Of Cameras | 32 |
|---|---|
| Number Of SATA Connections | 8 |
| Has Alarm Inputs / Outputs | Yes |
| Video Output Types | 2 HDMI, 1 VGA |
| Video Output Resolutions: | 3840 x 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Size | 2U |
| Resolutions Capable | 4K, 5MP, 4MP, 3MP, 1080P, 720P |
| Max Bandwidth | 128 Mbps |
| Display Screen Split | 1/4/8/9/16/25/36 |
| Compression of Video | H.264 / H.265 |
|---|---|
| Perimeter Protection | No |
| Object Detection | No |
| Face Detection | No |
| Face Recognition | No |
| Smart Motion Detection | No |
| LPR | No |
| Available installed storage | 2TB, 4TB, 6TB, 10TB, 12TB, 16TB, 20TB, 24TB, 32TB, 36TB, 40TB, 48TB, 64TB, 80TB |
| Largest offered drive configuration | 8 × 10TB Seagate surveillance drives |
Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
