16 Analog + 4 IP
Sixteen BNC inputs at 5MP plus four IP channels on 24 Mbps of bandwidth.
Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.
1 of 6
Open full-resolution image QDVR-SB16C-5MP

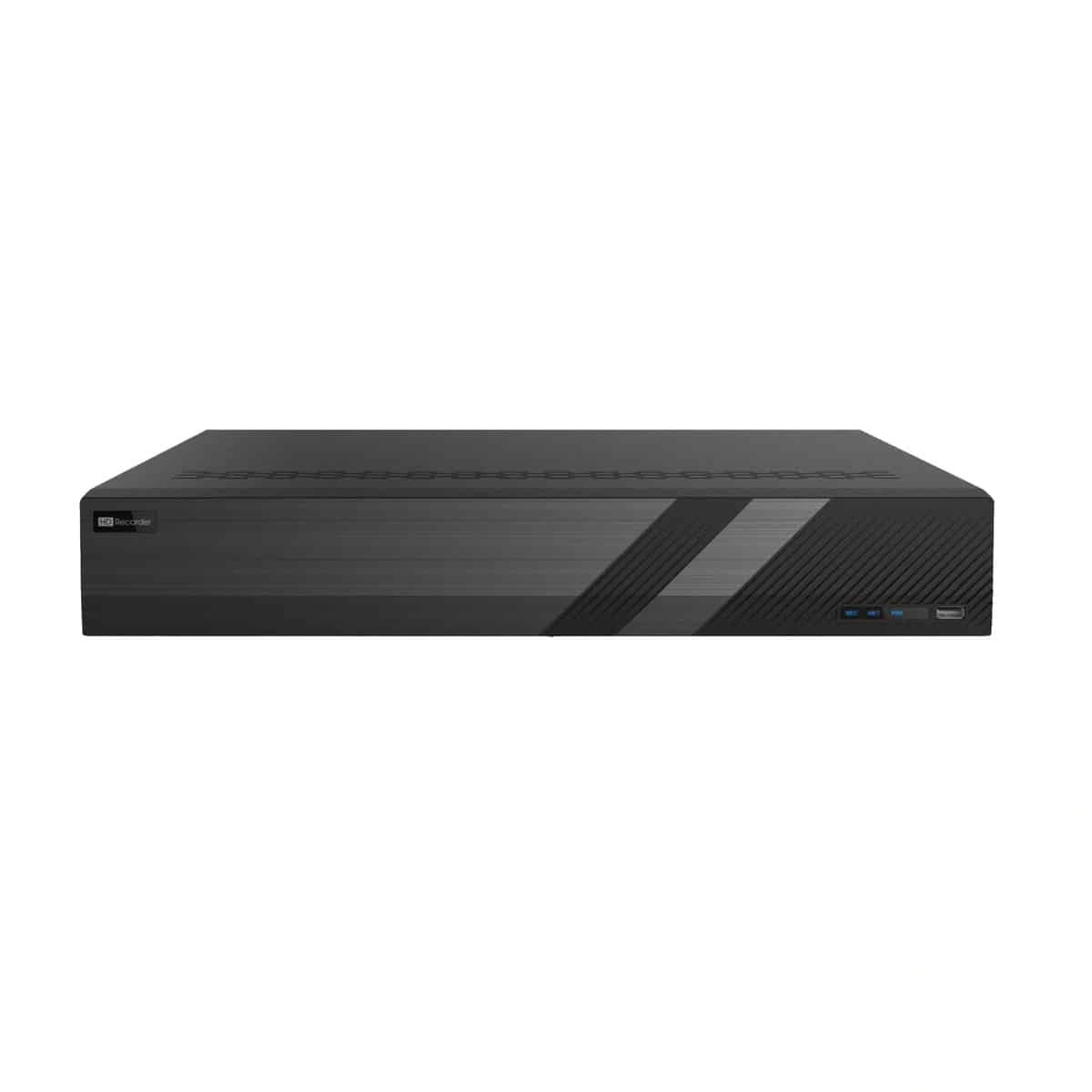

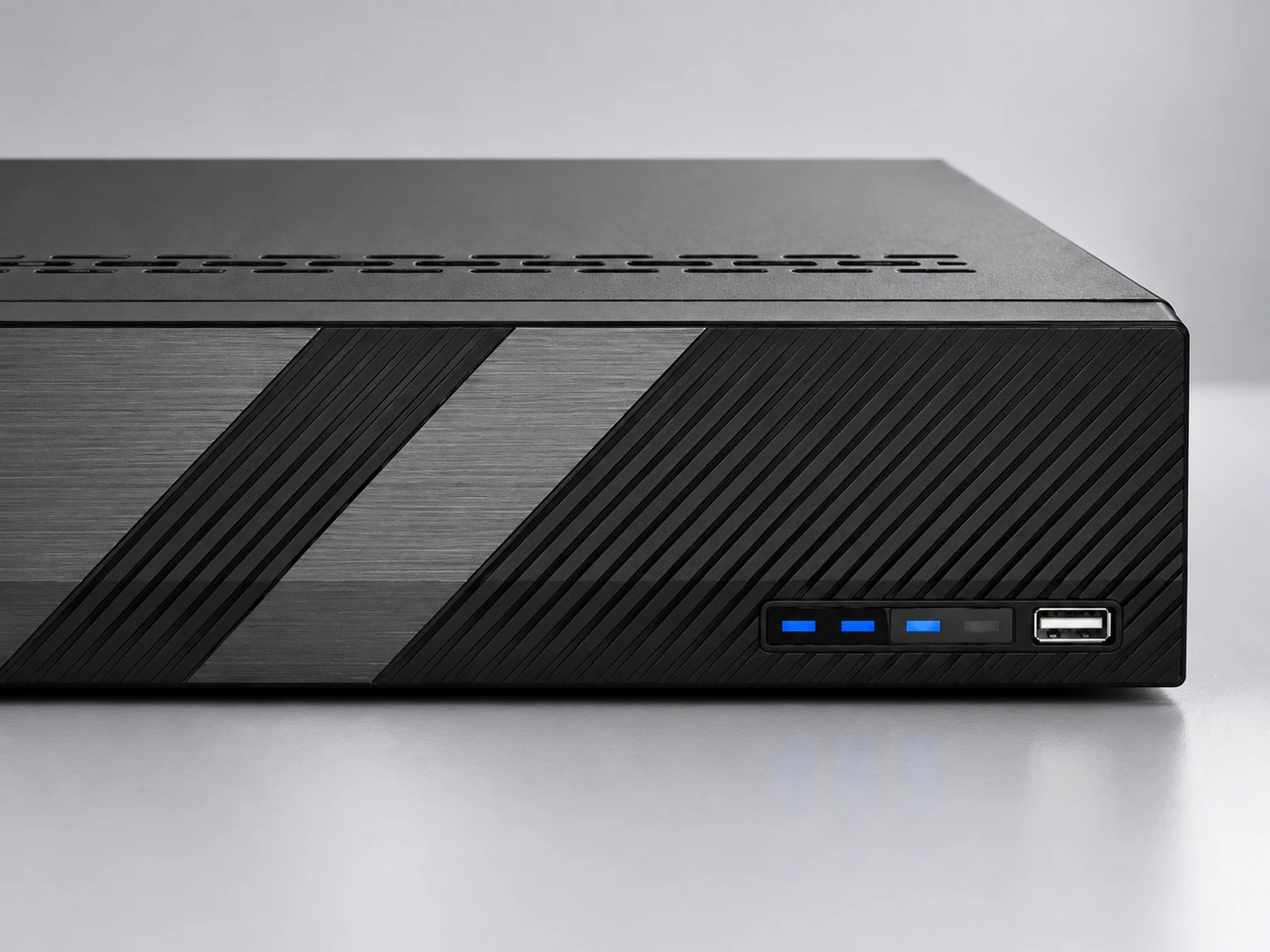

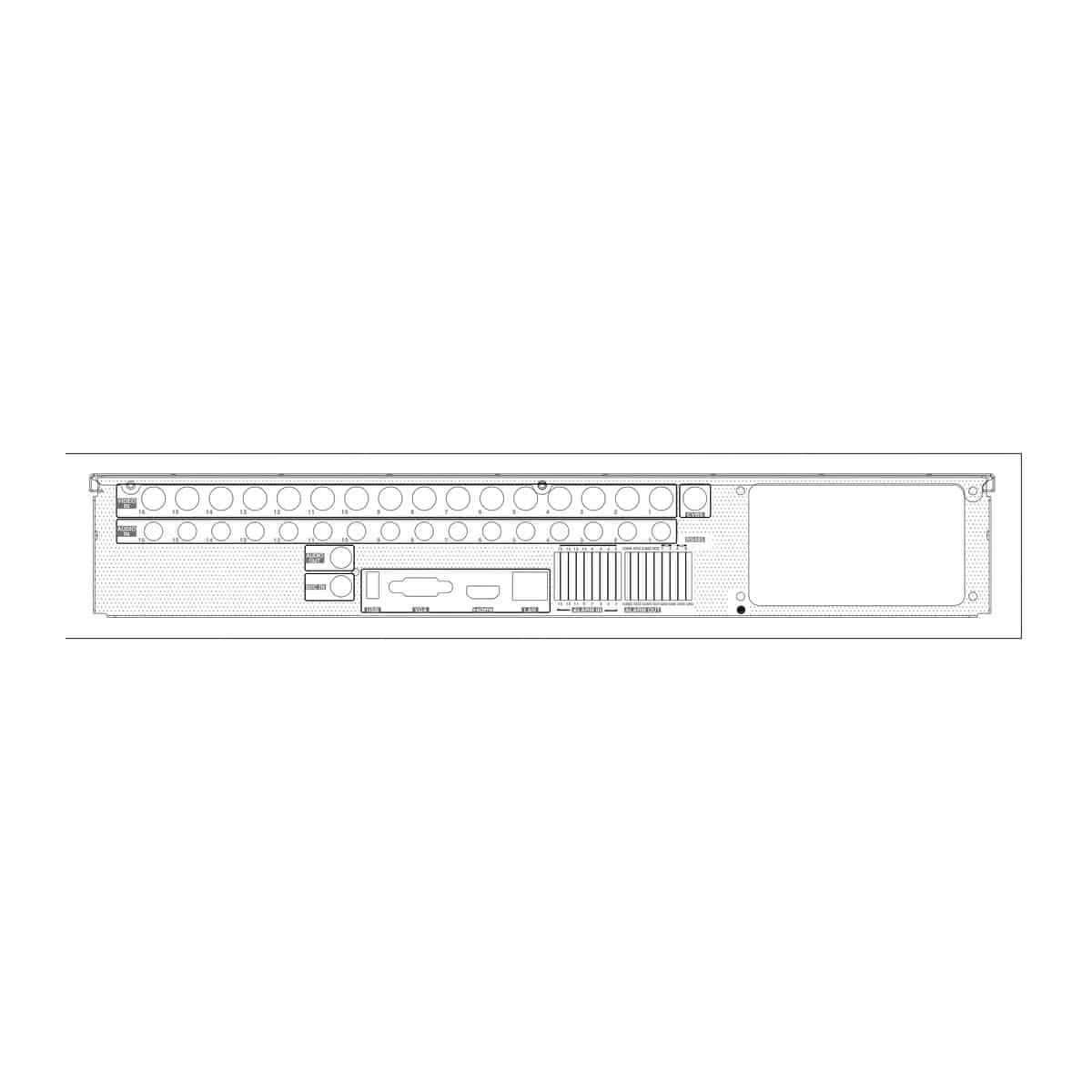

16CH 5MP Hybrid DVR (1.5U)
A 16-channel hybrid DVR that records sixteen coax cameras at up to 5MP and adds four IP channels on top, in a 1.5U chassis with four SATA bays taking 8 TB each. The coax inputs accept TVI, AHD and CVI, so a mixed installation does not have to be standardised before it is recorded. Video comes out over HDMI at up to 4K, VGA, and a BNC that can be set as either the main or a spot output, with sixteen audio inputs, sixteen alarm inputs and four alarm outputs behind it. Recording is H.264 High Profile; the datasheet and the manual linked on this page carry the full specification.
Pricing and availability are provided by our authorized reseller.
Key features
Feature illustrations are representative. See specifications for this model.
Four SATA Bays
Up to 8 TB per drive across four bays for long retention at full resolution.
Multi-Format Coax
TVI and AHD at 5MP, CVI at 1080P, all on the same sixteen inputs.

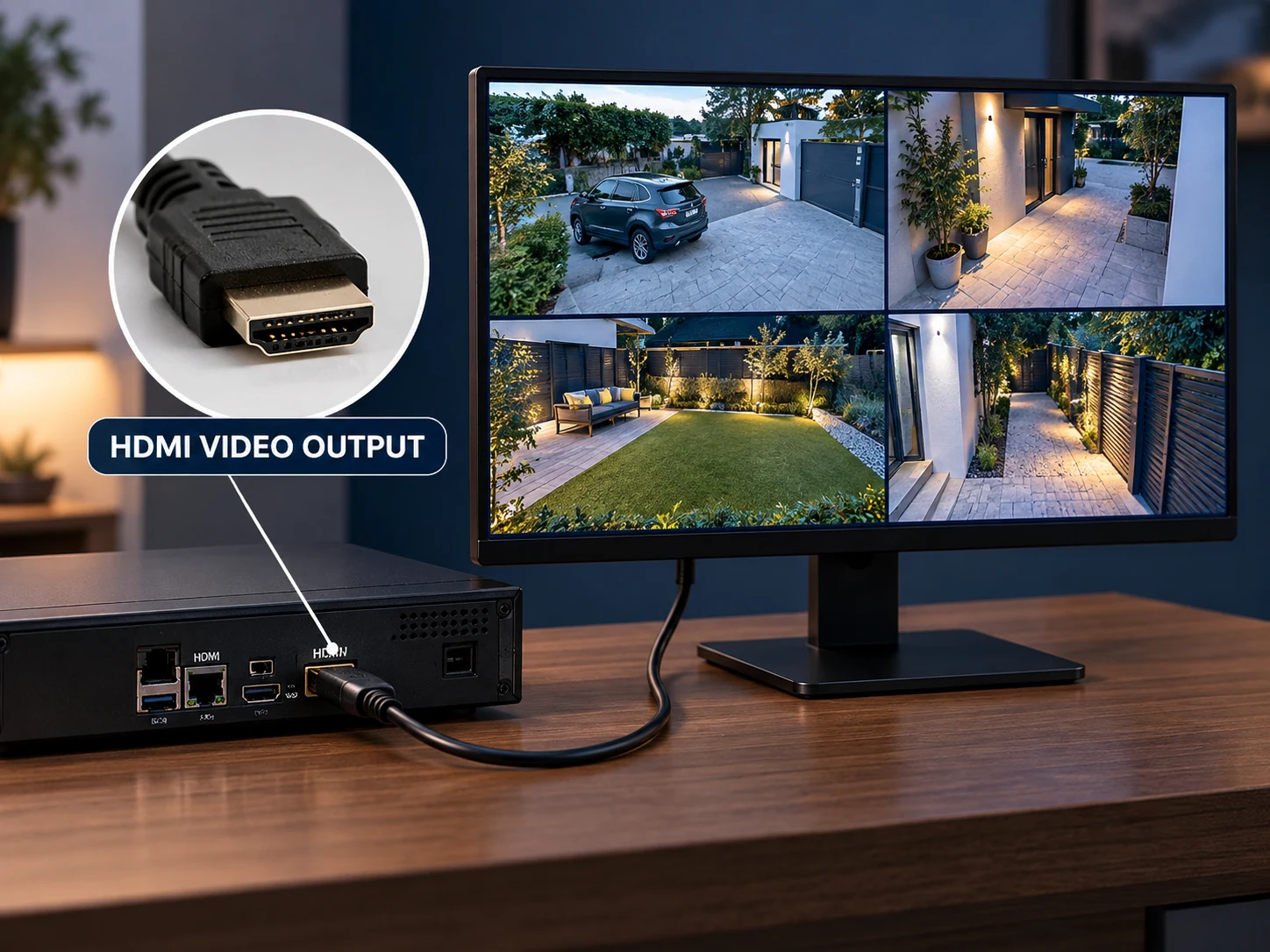

4K HDMI Output
HDMI at 4K x 2K plus VGA and a BNC CVBS spot output.
16 Audio Inputs
One RCA audio input per camera channel, plus output and two-way audio.

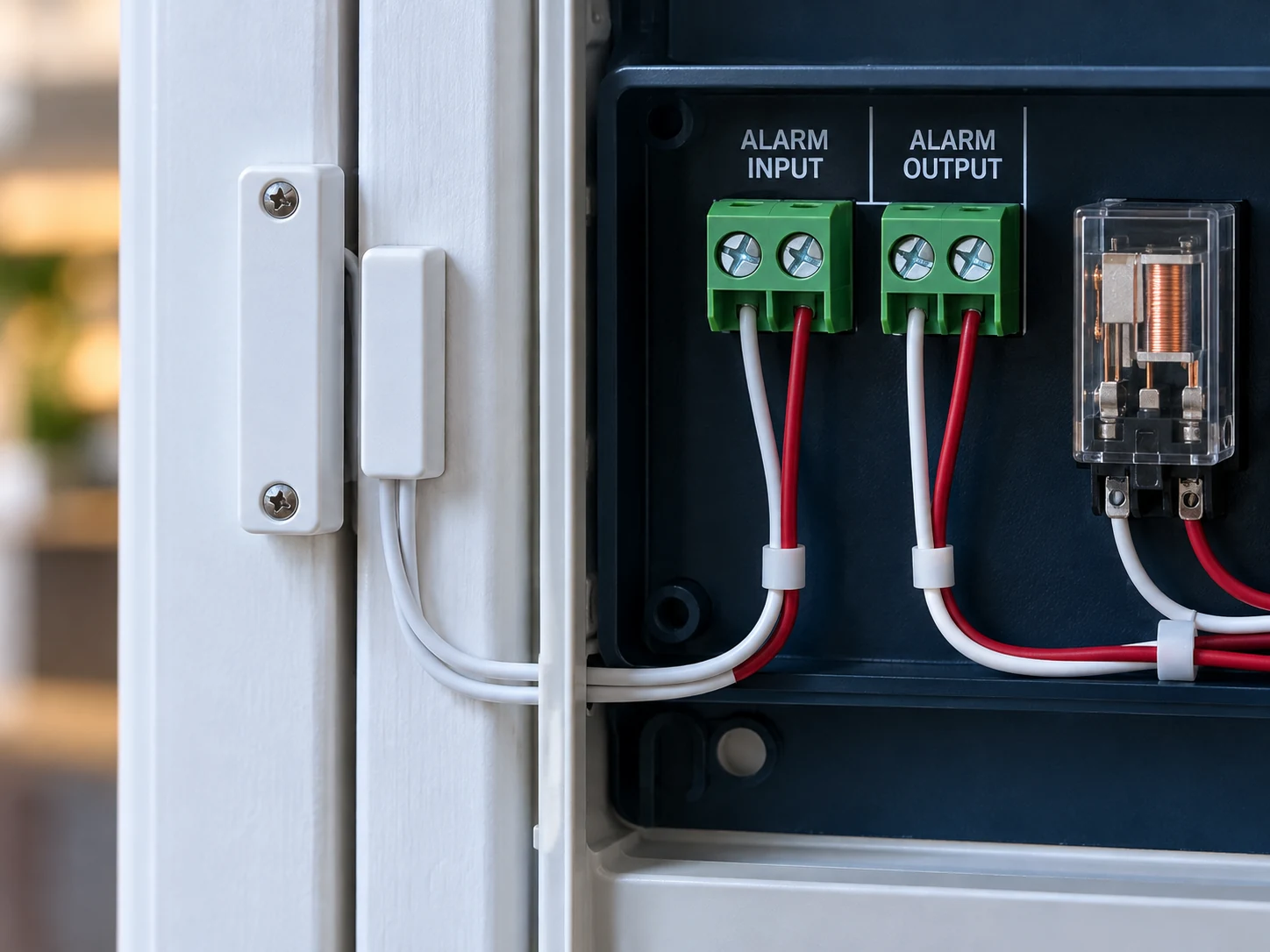

16 In / 4 Out Alarm
Triggers recording, snapshots, PTZ presets and e-mail notifications.
Mobile and Web Access
iOS and Android apps with NAT and QR code setup; multi-user web client.
Technical specifications
| Compression | H.264 High Profile |
|---|---|
| CPU | Cortex A9 |
| Operating System | Embedded Linux |
| Analog Inputs | 16 x BNC |
| Analog Resolution | TVI / AHD: 5MP@20fps; 4MP, 3MP, 1080P, 720P, WD1 real time. CVI: 1080P, 720P real time |
| IP Input / Access Bandwidth | 4 IP cameras / 24 Mbps |
| Video Output | HDMI x 1 (4K x 2K / 1920 x 1080 / 1280 x 1024); VGA x 1 (1920 x 1080 / 1280 x 1024); BNC x 1 CVBS (main or spot output) |
| Audio Input | 16 x RCA |
| Audio Output | 1 x RCA |
| Two-Way Audio | 1 x RCA |
| Recording Resolution | 5MP, 4MP, 4MP lite, 3MP, 1080P, 720P, WD1 |
| Frame Rate | 5MP: 10fps; 4MP / 3MP: 15fps (NTSC); 4MP lite / 1080P / 720P / WD1: 30fps (NTSC) |
| IP Channel Resolution | 4MP, 3MP, 1080P, 960P, 720P at 30fps (NTSC) |
| Bit Rate | 768 Kbps - 8 Mbps |
| Recording Mode | Manual, timer, motion, sensor |
| Playback Channels | 16 |
| Search | Time slice / time / event / tag search |
| Smart Search | Colour-coded record timeline by event type |
| Alarm Input | 16 |
| Alarm Output | 4 |
|---|---|
| Alarm Modes | Manual, sensor, motion, exception |
| Triggering | Record, snap, preset, e-mail |
| HDD Bays | 4 x SATA |
| Maximum Capacity Per Drive | 8 TB |
| Backup | USB flash drive, USB mobile HDD, network backup |
| Interface | 1 x RJ45 10 / 100 / 1000 Mbps |
| Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
| Mobile Apps | iOS and Android |
| Web Client | Multiple users online |
| RS485 | 2 x RS485 (PTZ and keyboard) |
| USB | USB 2.0 x 1 (front), USB 3.0 x 1 (rear) |
| Remote Controller | Yes |
| Power Supply | ATX 250W |
| Power Consumption | 20W or less (without HDD) |

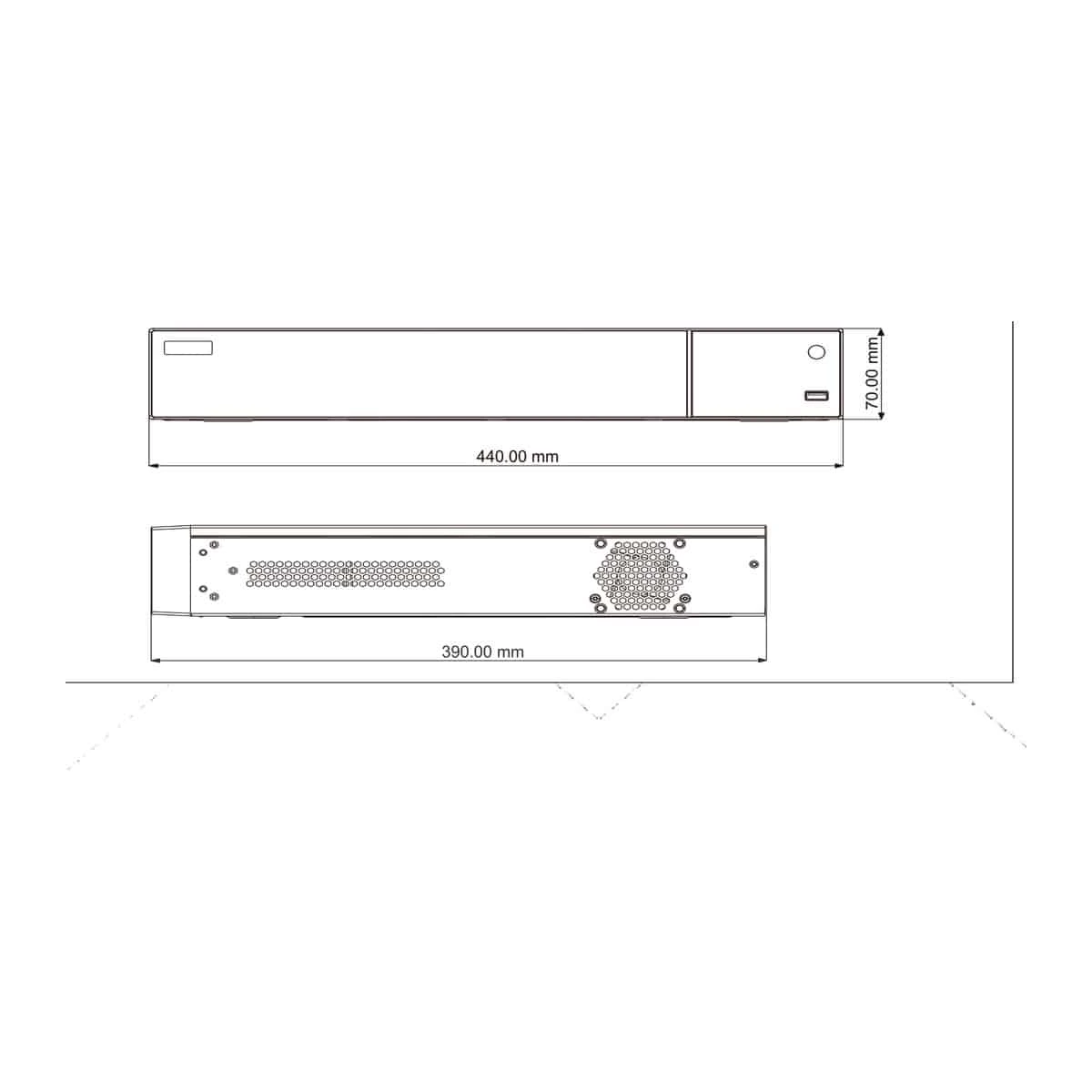

| Dimensions | 440 x 390 x 70 mm (W x D x H) |
| Operating Environment | -10 to 50 C, 10% to 90% humidity |
| Available installed storage | 2TB, 4TB, 6TB, 8TB, 10TB, 12TB, 16TB, 20TB, 24TB, 32TB |
| Largest offered drive configuration | 4 × 8TB Seagate surveillance drives |
Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
