HDOB-SBE8IR3

Name: HDOB-SBE8IR3 8MP HD Fixed Lens Bullet
Brand: Sibell
SKU: HDOB-SBE8IR3

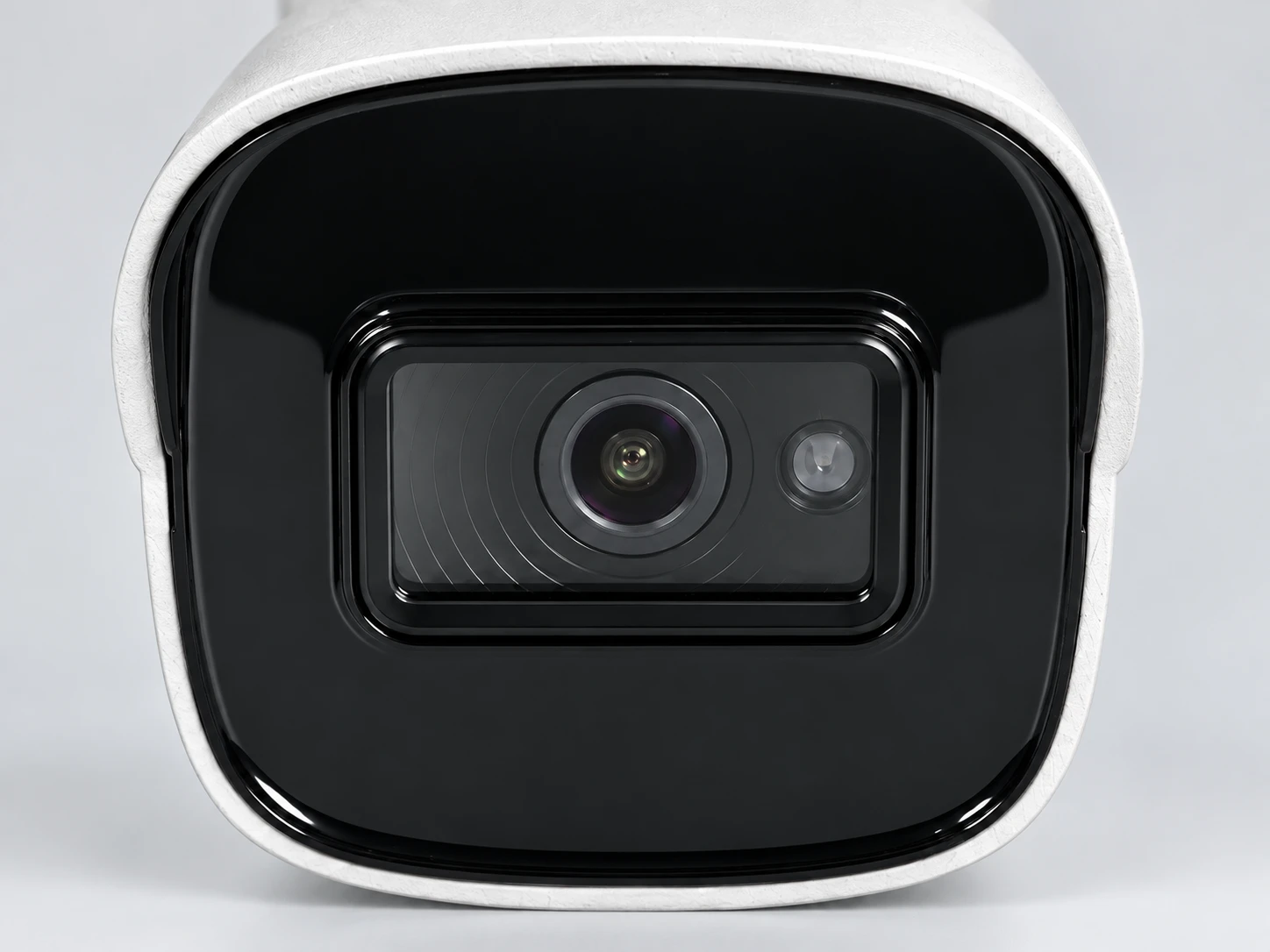

8MP HD Fixed Lens Bullet

A fixed-lens bullet for a straightforward coax camera position. This 8MP model uses a 3.6mm lens, so establish the mounting distance and desired coverage before fixing the bracket. Check the recorder’s supported signal format and frame rate when upgrading an existing cable run.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Key features

Feature illustrations are representative. See specifications for this model.

Resolution: A monitor shows a brick courtyard with a circular zoom inset revealing brick and leaf detail.

8MP Ultra HD

Crystal clear 3840x2160 resolution captures every detail at 15fps.

Feature illustration: 4-FORMAT COMPATIBILITY

Quad Format Output

Supports AHD/TVI/CVI/CVBS for flexible system compatibility.

Feature illustration: White dome security camera fixed beneath an exterior soffit, rain streaks and crisp water droplets, approaching storm beyond a commercial entrance

IP67 Weatherproof

Fully protected against dust and water for harsh outdoor environments.

COC Control

Adjust OSD menu settings remotely via coaxial cable control.

Infrared night vision: A wall-mounted camera at dusk beside a monitor showing a clear black-and-white view of a side path.

65ft Night Vision

Smart IR illumination provides clear images up to 65 feet in darkness.

ICR Day/Night

Auto IR-cut filter switching ensures true color day and B/W night imaging.

WDR: A lobby camera view shows both the reception desk and the bright, sunlit courtyard outside clearly.

Digital WDR

Wide Dynamic Range balances bright and dark areas for clear images.

Feature illustration: Technician connecting a real BNC coax plug to the coax input of an unbranded security DVR beside a compatible bullet camera, crisp connector detail, no Ethernet substitution

Easy Plug-and-Play Installation

Quick and simple setup with plug-and-play coax connections—no complicated configurations or network knowledge required.

Remote viewing: A person in a cafe holds a smartphone showing a live view of a home entrance.

Remote Viewing via Mobile App

Access live and recorded footage from anywhere using a secure mobile app. Stay connected with real-time alerts, playback options, and remote management of your entire system.

Feature illustration: LONG-DISTANCE TRANSMISSION

Long-Distance Transmission (up to 1600ft)

Transmit HD video over coax cable up to 1600 feet without signal degradation, making it ideal for large properties or distant camera runs.

Technical specifications

Image Sensor	1/2.7" CMOS
Resolution	8MP (3840x2160)
Frame Rate	15fps (60Hz), 12.5fps (50Hz)
Video Output	AHD / TVI / CVI / CVBS
Image System	PAL / NTSC Auto
Min. Illumination	Color: 0.01 [email protected] , AGC ON; B/W: 0 lux with IR
S/N Ratio	≥52dB (AGC OFF)
Electronic Shutter	Auto
Focal Length	3.6mm
Lens Mount	M12
Type	Fixed Lens
IR Distance	20~30m
Smart IR	Yes
Day & Night ICR	Yes
Digital WDR	Yes
Digital NR	Yes
AGC	Yes

BLC	Yes
Auto White Balance	Yes
Defog	No
LSC	No
HLC	Yes
Sharpness	No
Mirror	No
Auto Defect Correction	Yes
OSD Control	COC Control
Power Supply	DC12V (±10%)
Power Consumption	IR OFF: <1W; IR ON: <4W
Dimensions	167.5 x 74.5 x 74.5 mm
Weight	Approx. 0.37KG
Angle Adjustment	Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°
IP Rating	IP67
Operating Temperature	-30°C ~ 50°C
Humidity	10% ~ 90% (relative humidity)
