HDOB-SB8IR28

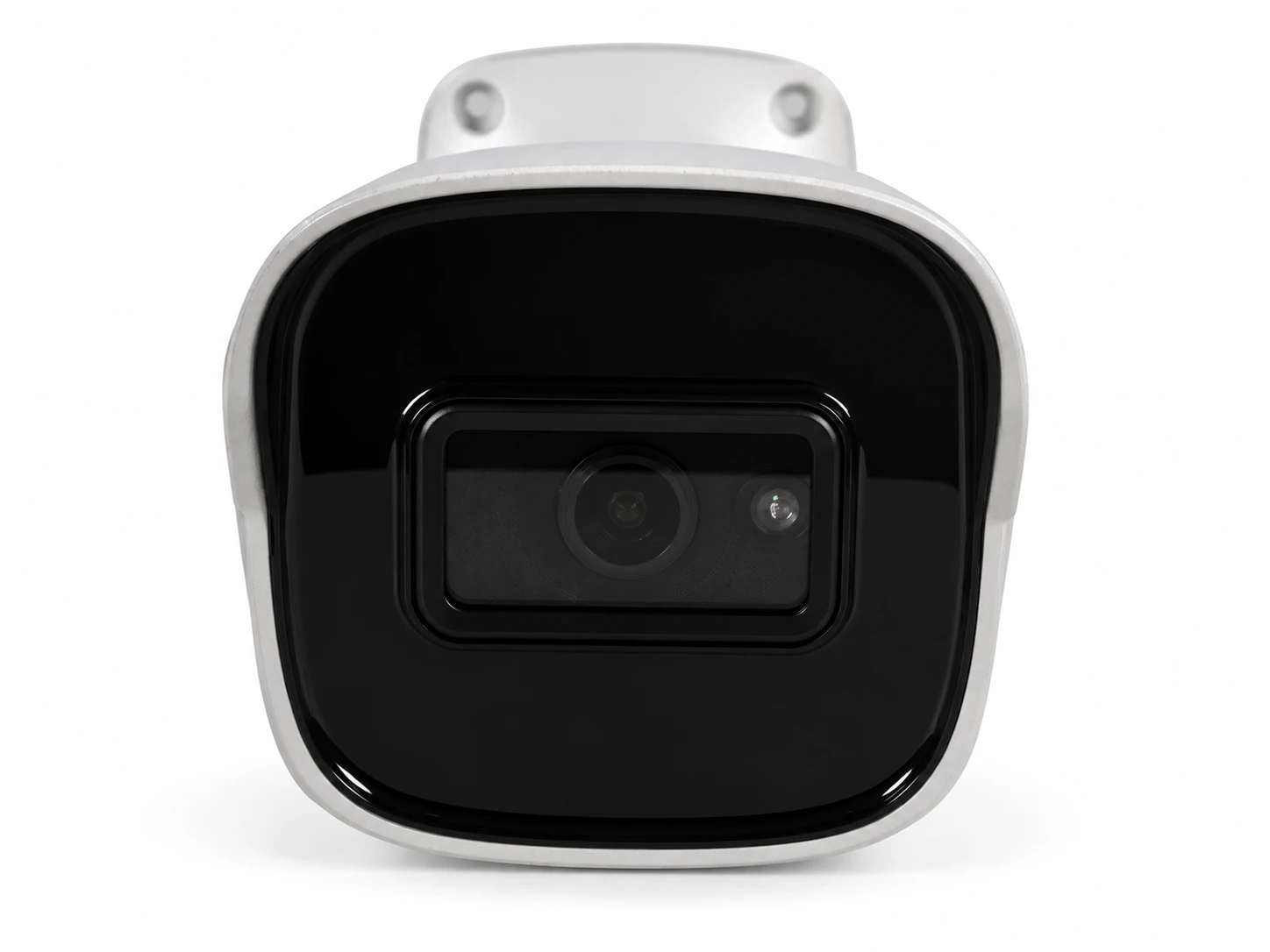

Name: HDOB-SB8IR28 HD Fixed Lens 8MP Bullet Camera
Brand: Sibell
SKU: HDOB-SB8IR28
Availability: InStock

HD Fixed Lens 8MP Bullet Camera

Compare this fixed-lens 8MP bullet when specifying a coax installation with a consistent viewing direction. The housing and lens are selected as a unit rather than adjusted through motorized zoom. Review image format, cable route and recorder compatibility before installation.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Technical specifications

Image Sensor	1/2.5" CMOS
Resolution	8MP
Image Size	3840x2160
Frame Rate	8MP@15fps, 4MP@30fps
Video Output	AHD / TVI / CVI / CVBS
Image System	PAL / NTSC
Electronic Shutter	Auto
Min. Illumination	Color: 0.01 [email protected] , AGC ON; B/W: 0 lux with IR
S/N Ratio	≥52dB (AGC OFF)
TVL Resolution	Up to 1700 TVL
Focal Length	3.6mm (2.8mm optional)
Lens Mount	M12
IR Distance	20~30m
Day & Night	ICR
Function Control	OSD (COC Control)
Digital WDR	No
3D NR	Yes
AGC	No
Auto White Balance	Yes
BLC	Yes
Defog	No
LSC	No
Saturation	Yes
Sharpness	Yes
Contrast	Yes
Smart IR	Yes
Image Setting	Yes
Defect Correction	Auto
Languages	11 languages
Pan	0°~360°
Tilt	0°~80°
Rotation	0°~360°
Power Supply	DC12V (±10%)
Power Consumption	IR OFF: <2W; IR ON: <5W
Dimensions	167.5 x 74.5 x 74.5 mm
Weight	Approx. 0.38KG
Ingress Protection	IP67
Working Environment	-30°C ~ 50°C, 10% ~ 90% (relative humidity)
Available Accessories	JB-SB301
