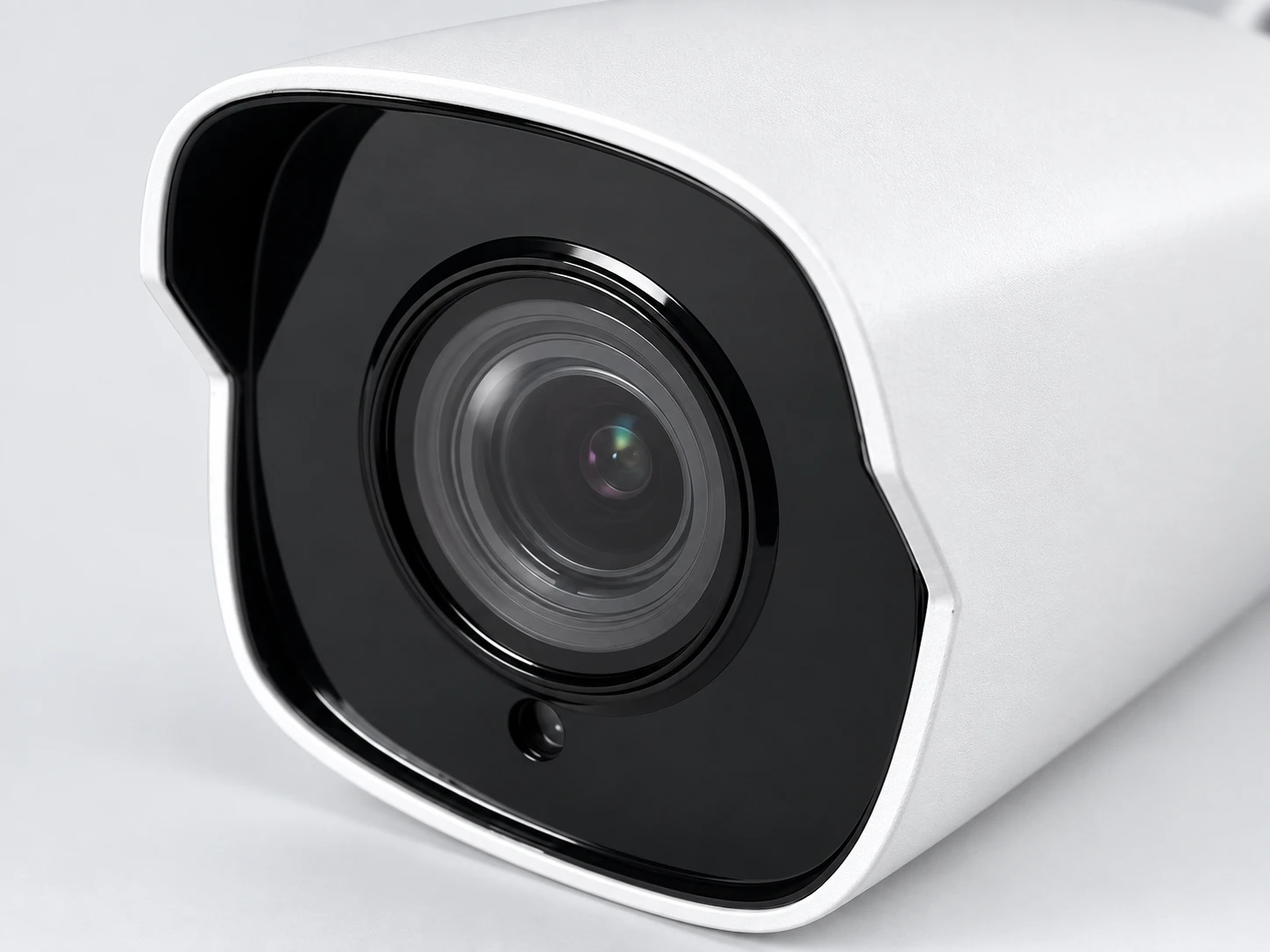

HDOB-SB8IRZ 8MP HD Moto Lens Bullet
Open full-resolution image

HDOB-SB8IRZ

8MP HD Moto Lens Bullet

Frame a coax camera view after installation with a motorized lens. The 8MP HDOB-SB8IRZ is useful to compare when a fixed lens would commit you to one field of view. Confirm the recorder supports the intended resolution and lens-control method.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Technical specifications

Image Sensor1/2.5" CMOS
Resolution8MP (3840x2160)
Frame Rate8MP@15fps / 5MP@20fps / 4MP@30fps
TVL ResolutionUp to 1700 TVL
Video OutputAHD/TVI/CVI/CVBS
Image SystemPAL/NTSC
Electronic ShutterAuto
Min. IlluminationColor: 0.01 [email protected] , AGC ON; B/W: 0 lux with IR
S/N Ratio52dB (AGC OFF)
Day & NightICR
Focal Length3.6mm (2.8mm optional) / 2.8-12mm
Lens MountM12 or CS (optional)
IR Distance20-30m
OSD MenuYes (COC Control)
Digital WDRYes
3DNRYes
AGCNo
Auto White BalanceYes
BLCYes
DefogNo
LSCNo
SmartIRYes
Image SettingYes
Defect CorrectionAuto
SaturationYes
SharpnessYes
ContrastYes
Power SupplyDC12V (±15%)
Power ConsumptionIR OFF: <2W; IR ON: <5W
DimensionsØ86.7 x 219.4mm
WeightApprox. 0.58KG
Angle AdjustmentPan: 0°-360°; Tilt: 0°-90°; Rotation: 0°-360°
Ingress ProtectionIP66
Operating Temperature-30°C to 50°C
Humidity10% - 90% (relative humidity)
Language11 languages
COC SupportYes
960H CVBS OutputYes

Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
