HDOD-SBE5IR28AF

Name: HDOD-SBE5IR28AF 5MP HD Over Coax Dual Illumination 2.8mm Turret Security Camera with Built-in Mic
Brand: Sibell
SKU: HDOD-SBE5IR28AF

5MP HD Over Coax Dual Illumination 2.8mm Turret Security Camera with Built-in Mic

A 5MP turret for coax systems with two illuminators built in: an infrared LED for discreet monochrome night vision out to 20 to 30 m, and a warm-white LED that lights the scene for colour footage up to 20 m, chosen from the camera menu. A microphone sits in the housing and its audio travels down the same coax as the video, so a recorder that supports coaxial audio (TVI signal mode) records sound without a second cable. The 2.8 mm fixed lens sits behind an IP67 housing on a round base that pans, tilts and rotates without a separate bracket, and the output switches between AHD, TVI, CVI and CVBS so the camera can join an existing coax recorder without changing format. It takes 12 V DC and draws under 4 W with the illuminator on. HDOB-SBE5IR28F is the white-light bullet built on the same platform, without the microphone.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Key features

Feature illustrations are representative. See specifications for this model.

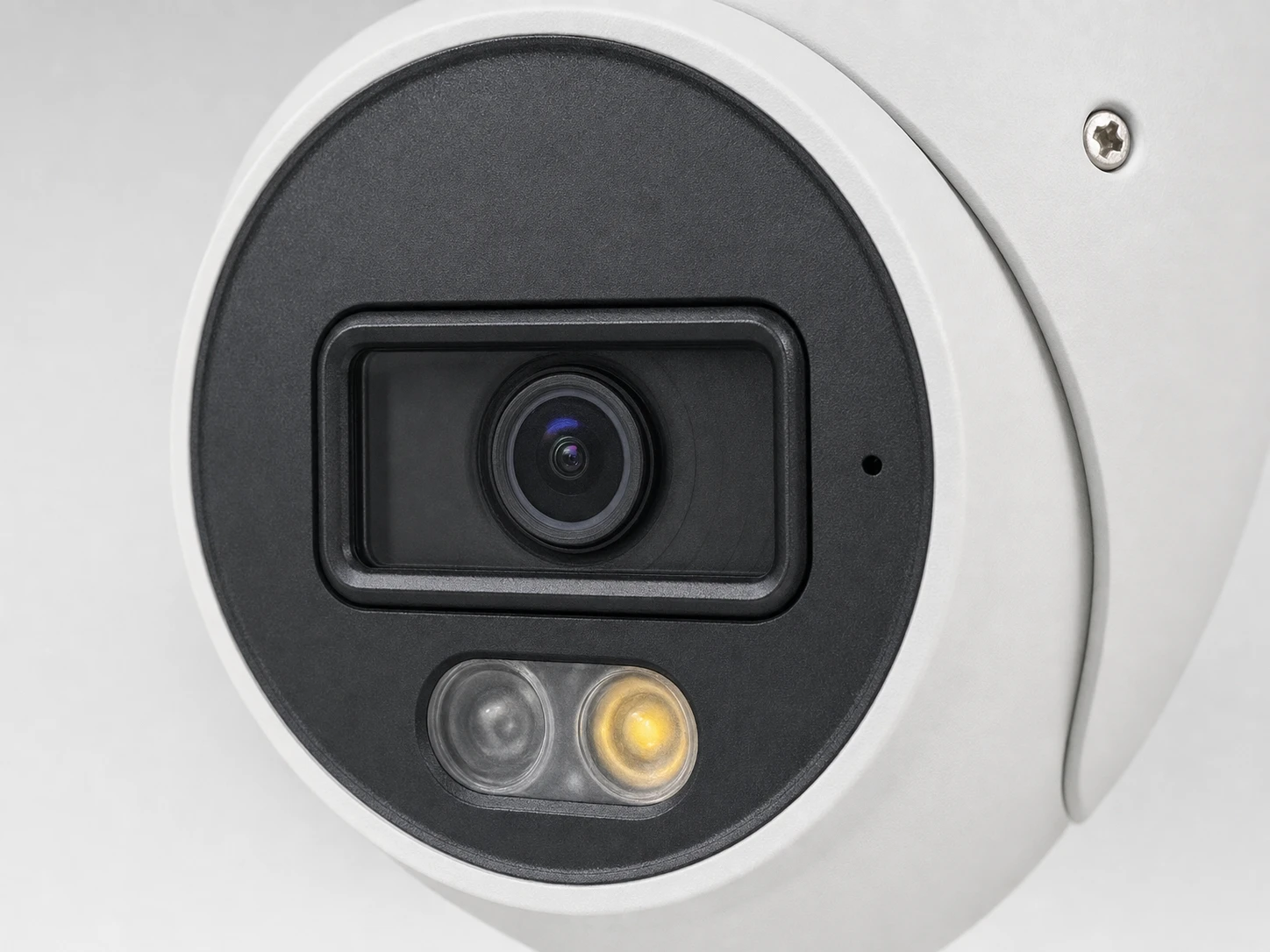

Dual Illumination

Infrared LED for discreet night vision to 20 - 30 m, plus a warm-white LED for colour footage up to 20 m; the illuminator is chosen in the camera menu.

Resolution: A monitor shows a brick courtyard with a circular zoom inset revealing brick and leaf detail.

5MP Resolution

2944 x 1656 on a 1/2.5" CMOS sensor, 20fps at 5MP and 25/30fps at 4MP.

Feature illustration: Close-up of a compact fixed security-camera lens with clean optical glass, a broad courtyard softly reflected in the lens

Fixed 2.8mm Lens

Wide fixed lens on an M12 mount - no focus or zoom adjustment on site.

Feature illustration: Macro of the small microphone opening in a security camera body, nearby human conversation softly out of focus, no exposed giant microphone

Built-in Microphone

One-channel microphone in the turret; its audio travels over the same coax to the recorder in TVI signal mode.

Feature illustration: 4-FORMAT COMPATIBILITY

AHD / TVI / CVI

Switchable coax output, with CVBS as well, so it works with the recorder already installed.

Menu Over Coax

OSD settings driven from the recorder through COC control, not at the camera.

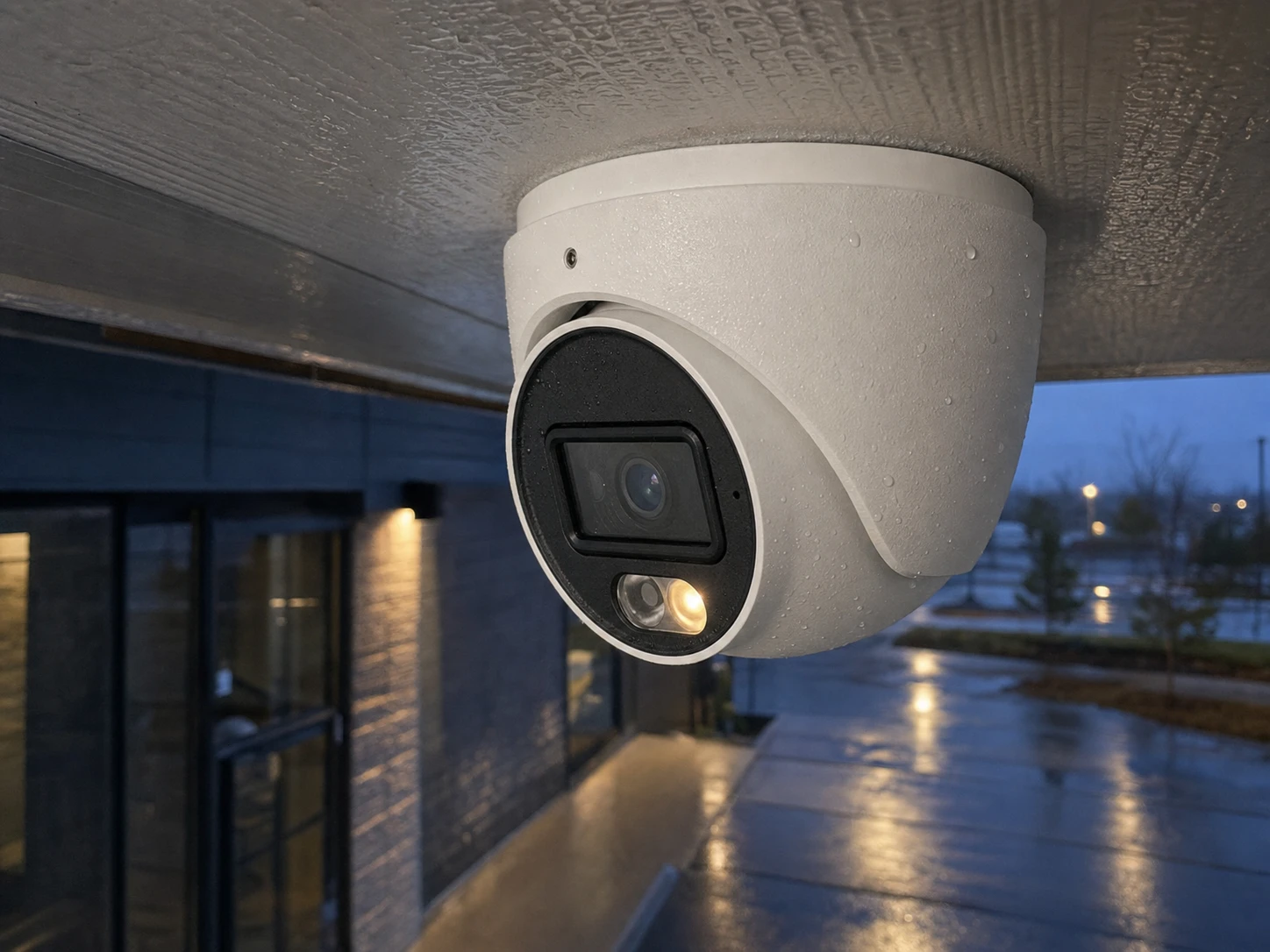

Feature illustration: White dome security camera fixed beneath an exterior soffit, rain streaks and crisp water droplets, approaching storm beyond a commercial entrance

IP67 Rated

Sealed housing rated for -30 to 50 C operation.

Feature illustration: Camera watching a garden gate at blue hour with warm white supplemental lighting, vivid natural colors and realistic night ambience

24/7 Full Colour

In white-light mode the LED comes on at low illumination and footage stays in colour, up to 20 m.

Technical specifications

Image Sensor	1/2.5" CMOS
Resolution	5MP
Image Size	2944 x 1656
Lens	2.8 mm fixed
Lens Mount	M12
Video Output	AHD / TVI / CVI / CVBS
Audio	1-channel built-in microphone
Coaxial Audio	Yes (TVI signal mode)
Image System	PAL / NTSC
Frame Rate	TVI / AHD: 2944 x 1656 at 20fps, 2560 x 1440 at 25/30fps; CVI: 2560 x 1440 at 25/30fps
Electronic Shutter	Auto
Minimum Illumination	0.005 lux at F1.2 (AGC on); 0 lux with LED on
Night Illumination	Dual: infrared 20 - 30 m (66 - 98 ft); white light up to 20 m (66 ft)
Signal to Noise Ratio	52dB or better (AGC off)
Ingress Protection	IP67
Function Control	OSD via COC (coax) control

Digital WDR	Yes
Digital Noise Reduction	Yes, 2D DNR (3D with compatible recorders)
AGC	Yes
Auto White Balance	Yes
BLC	Yes
Contrast	Yes
Saturation / Colour Gain	Yes
Sharpness	Yes
Image Setting	Yes
Defect Correction	Auto
Angle Adjustment	Pan 0-360 deg; Tilt 0-75 deg; Rotation 0-360 deg
Power Supply	DC12V (+/- 10%)
Power Consumption	LED off: under 1W; LED on: under 4W
Operating Environment	-30 to 50 C, 10% to 90% relative humidity
Dimensions	Dia. 94.6 x 82.8 mm (3.72 x 3.26 in)
Weight	Approx. 0.4 kg (0.88 lb)
