8MP Ultra HD
3840x2160 resolution captures crystal clear details at 15fps.

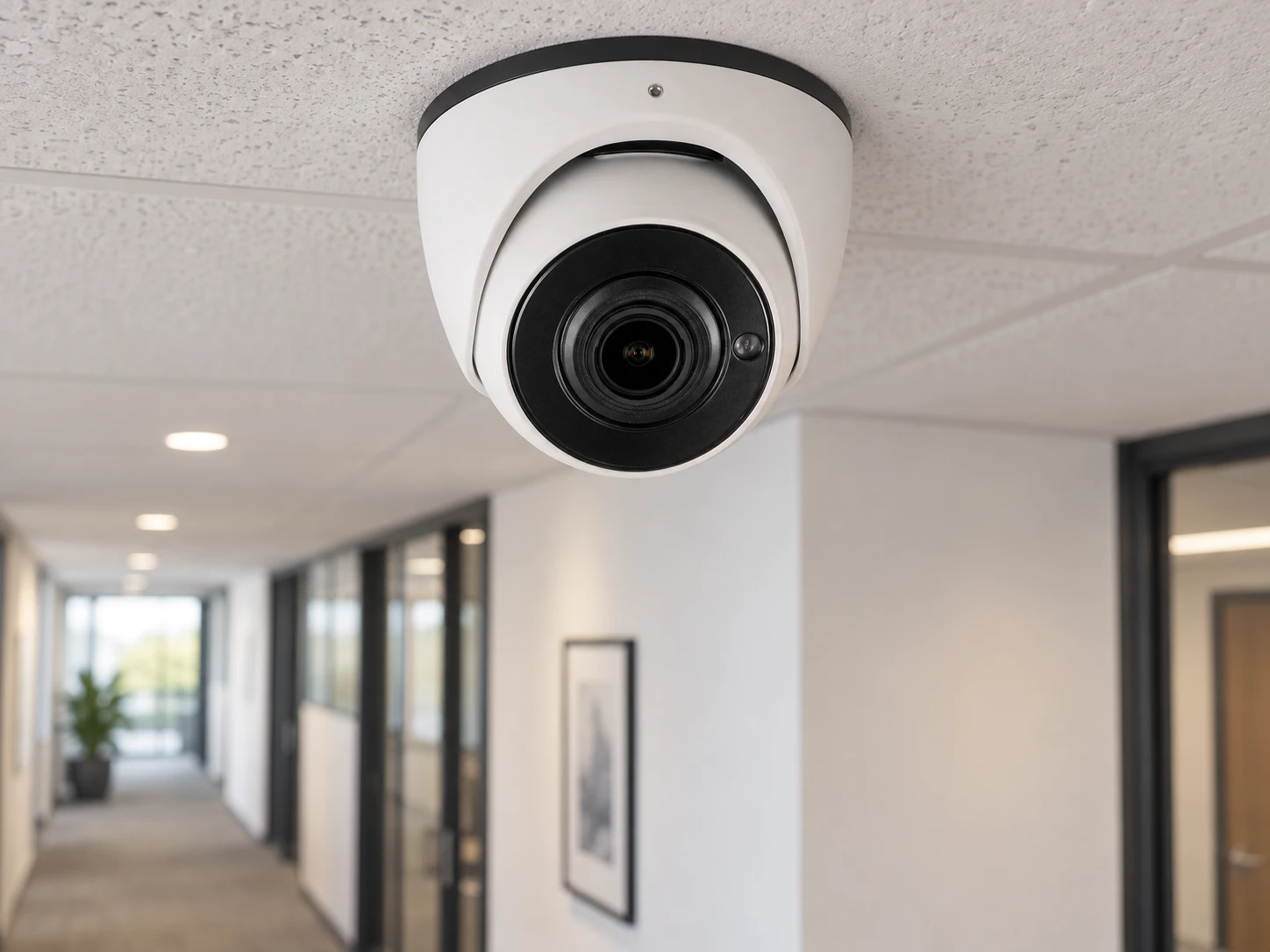

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.
1 of 8
Open full-resolution image HDOD-SB8IRZ

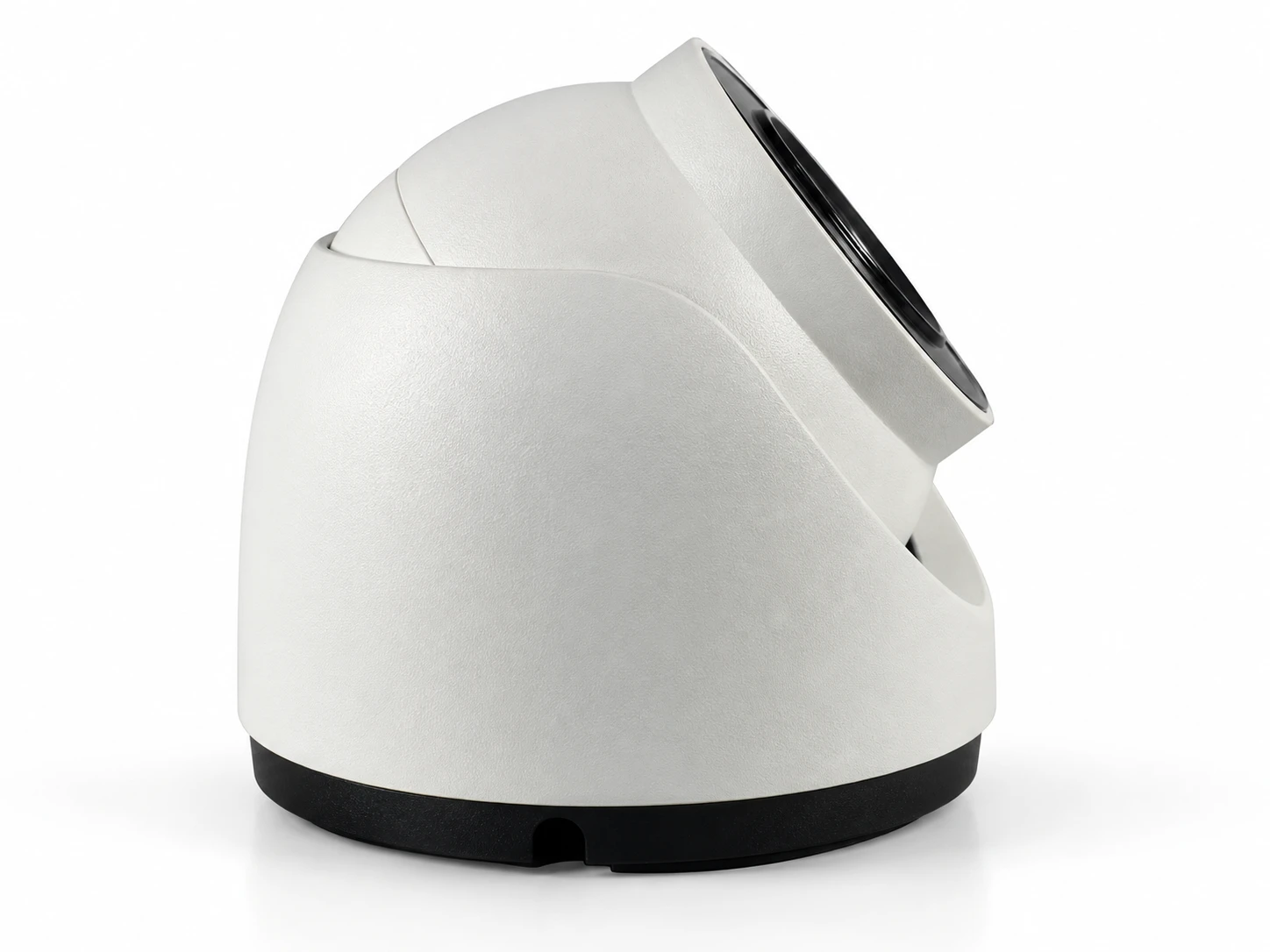

8MP HD Motorized Lens Dome Camera
An 8MP HD-over-coax dome with a motorized lens for adjusting the scene after mounting. Compare this format with the fixed-lens dome when the required field of view is uncertain. Verify the DVR supports the intended signal, resolution and lens-control functions.
Pricing and availability are provided by our authorized reseller.
Key features
Feature illustrations are representative. See specifications for this model.
2.8-12mm Motorized Lens
Adjustable zoom lens for flexible field of view coverage.
Quad Format Output
Supports AHD/TVI/CVI/CVBS for universal DVR compatibility.
98ft Night Vision
Smart IR illumination provides clear images up to 30 meters.
IP66 Weatherproof
Fully protected against dust and water for outdoor installation.
COC Control
Control camera settings remotely through coaxial cable (OSD menu).
Low Light Performance
0.01 lux color sensitivity with automatic ICR day/night switching.
Full Angle Adjustment
360° pan, 90° tilt, 360° rotation for complete coverage flexibility.
Easy Plug-and-Play Installation
Quick and simple setup with plug-and-play coax connections—no complicated configurations or network knowledge required.
Remote Viewing via Mobile App
Access live and recorded footage from anywhere using a secure mobile app. Stay connected with real-time alerts, playback options, and remote management of your entire system.
Wide Dynamic Range (WDR)
WDR balances lighting in high-contrast scenes, ensuring clear video by brightening dark areas and dimming overly bright zones—ideal for entrances, windows, and any areas with shifting light conditions.
Compatible with TVI / CVI / AHD / Analog
Supports multiple video formats including TVI, CVI, AHD, and traditional analog—making integration with existing coax systems easy and flexible.
Technical specifications
| Image Sensor | 1/2.5" CMOS |
|---|---|
| Resolution | 8MP (3840x2160) |
| Frame Rate | 8MP@15fps / 5MP@20fps / 4MP@30fps |
| Video Output | AHD / TVI / CVI / CVBS |
| Image System | PAL / NTSC Auto |
| Min. Illumination | Color: 0.01 [email protected] , AGC ON; B/W: 0 lux with IR |
| S/N Ratio | ≥52dB (AGC OFF) |
| Electronic Shutter | Auto |
| TVL Resolution | Up to 1700 TVL |
| Type | Motorized |
| Focal Length | 2.8-12mm |
| Lens Mount | D14 |
| IR Distance | 20-30m |
| Day & Night | ICR |
| Digital WDR | Yes |
| 3D NR | Yes |
| AGC | Yes |
| BLC | Yes |
| Auto White Balance | Yes |
| LSC | Yes |
|---|---|
| Saturation | Yes |
| Sharpness | Yes |
| Contrast | Yes |
| Smart IR | Yes |
| Auto Defect Correction | Yes |
| OSD Control | COC Control |
| Languages | 11 languages |
| Pan | 0°~360° |
| Tilt | 0°~90° |
| Rotation | 0°~360° |
| Power Supply | DC12V (±15%) |
| Power Consumption | IR OFF: <2W; IR ON: <5W |
| Dimensions | Ø 130.3 x 110mm |
| Weight | Approx. 0.66KG |
| Ingress Protection | IP66 |
| Operating Temperature | -30°C ~ 50°C |
| Humidity | 10% ~ 90% (relative humidity) |
Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
