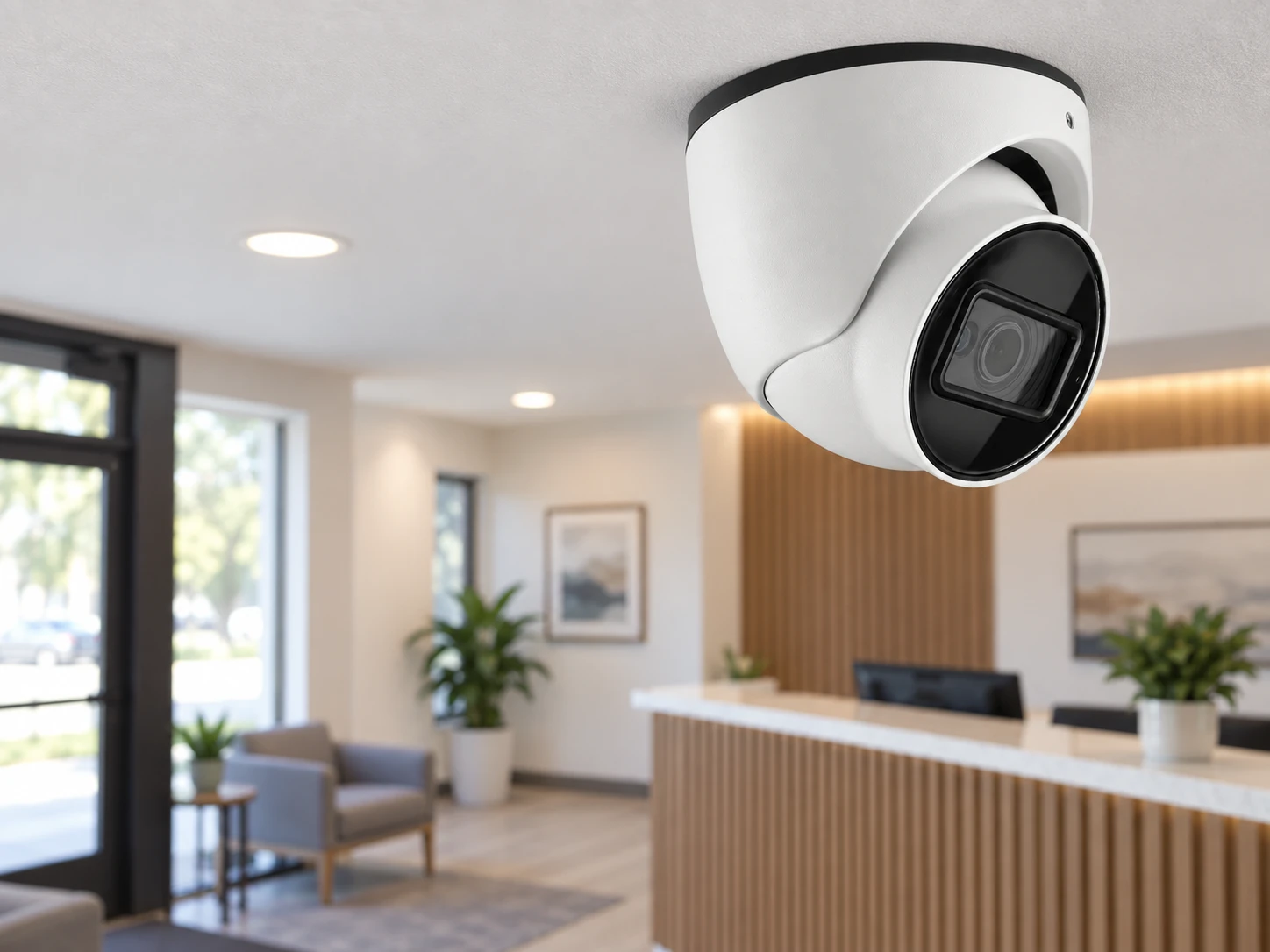

HDOD-SB8IR28 8MP HD Fixed Lens Dome Camera — Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.

1 of 10

Open full-resolution image

HDOD-SB8IR28

Name: HDOD-SB8IR28 8MP HD Fixed Lens Dome Camera
Brand: Sibell
SKU: HDOD-SB8IR28

8MP HD Fixed Lens Dome Camera

An 8MP fixed-lens option for an HD-over-coax system. The dome format provides an alternative to a projecting bullet housing. Select the mounting point around the fixed field of view and confirm the recorder can accept the camera’s chosen output mode.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Key features

Feature illustrations are representative. See specifications for this model.

Resolution: A monitor shows a brick courtyard with a circular zoom inset revealing brick and leaf detail.

8MP Ultra HD

Crystal clear 3840x2160 resolution at 15fps captures every detail.

Feature illustration: 4-FORMAT COMPATIBILITY

Multi-Format Output

Supports AHD, TVI, CVI, and CVBS for flexible system integration.

Feature illustration: White dome security camera fixed beneath an exterior soffit, rain streaks and crisp water droplets, approaching storm beyond a commercial entrance

IP67 Weatherproof

Fully protected against dust and water for reliable outdoor use.

Infrared night vision: A wall-mounted camera at dusk beside a monitor showing a clear black-and-white view of a side path.

20-30m Night Vision

Infrared illumination provides clear images in complete darkness.

True Day/Night ICR

Auto color to B/W with ICR switch for accurate imaging in any light.

OSD Menu Control

Easy on-screen configuration with 11 language support via COC.

Noise reduction: A monitor compares a grainy and a clear view of the same hallway, with a magnified inset.

3D Noise Reduction

Advanced filtering delivers clearer images in low-light conditions.

Feature illustration: Technician connecting a real BNC coax plug to the coax input of an unbranded security DVR beside a compatible bullet camera, crisp connector detail, no Ethernet substitution

Easy Plug-and-Play Installation

Quick and simple setup with plug-and-play coax connections—no complicated configurations or network knowledge required.

Remote viewing: A person in a cafe holds a smartphone showing a live view of a home entrance.

Remote Viewing via Mobile App

Access live and recorded footage from anywhere using a secure mobile app. Stay connected with real-time alerts, playback options, and remote management of your entire system.

Feature illustration: 5-FORMAT COMPATIBILITY

Compatible with TVI / CVI / AHD / Analog

Supports multiple video formats including TVI, CVI, AHD, and traditional analog—making integration with existing coax systems easy and flexible.

Technical specifications

Image Sensor	1/2.5" CMOS
Resolution	8MP (3840x2160)
Frame Rate	8MP@15fps / 5MP@20fps / 4MP@30fps
TVL Resolution	Up to 1700 TVL
Video Output	AHD / TVI / CVI / CVBS
Image System	PAL/NTSC
Electronic Shutter	Auto
Scan Type	Progressive scan
Min. Illumination	Color: 0.01 [email protected] , AGC ON; B/W: 0 lux with IR
S/N Ratio	≥52dB (AGC OFF)
Focal Length	2.8mm
Lens Mount	M12
IR Distance	20~30m
Day/Night	ICR switch
Digital WDR	Yes
3D NR	No
AGC	Yes
Auto White Balance	Yes
BLC	No
Defog	No

LSC	Yes
Saturation	Yes
Sharpness	Yes
Contrast	Yes
Smart IR	Yes
Defect Correction	Yes
OSD Menu	Yes (COC Control)
Language	11 languages
COC Support	Yes
960H CVBS Output	Yes
Pan	0°~360°
Tilt	0°~75°
Rotation	0°~360°
Power Supply	DC12V (±10%)
Power Consumption	IR OFF: <2W; IR ON: <4.5W
Dimensions	Ø94.6 x 82.8mm
Weight	Approx. 0.39KG
Ingress Protection	IP67
Operating Temperature	-30°C ~ 50°C
Humidity	10% ~ 90% (relative humidity)
