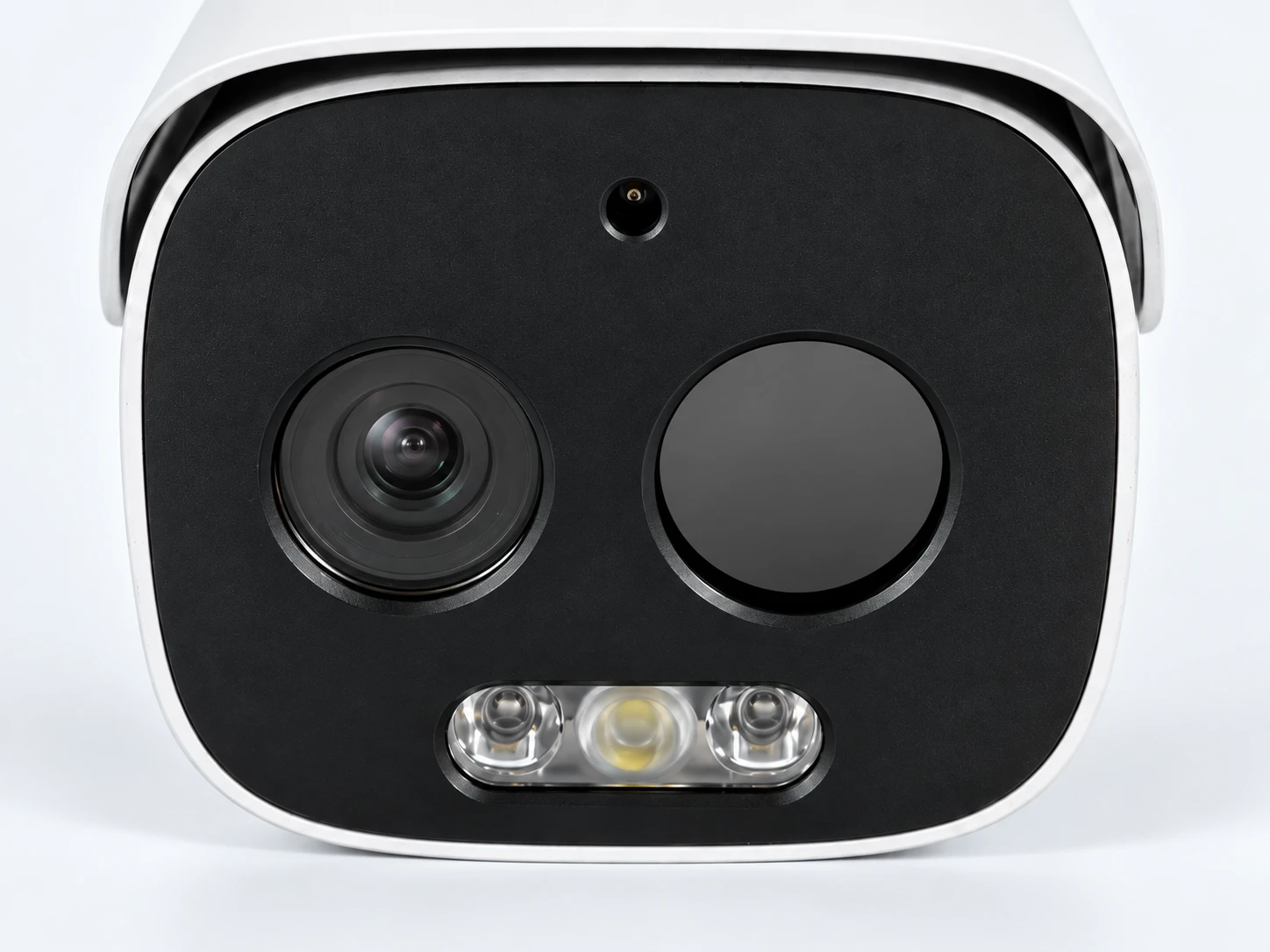

IPOB-SBTD5IR25 5MP Dual-Sensor Thermal/Optical Bullet (25mm/16mm)
Open full-resolution image

IPOB-SBTD5IR25

5MP Dual-Sensor Thermal/Optical Bullet (25mm/16mm)

A dual-sensor thermal/optical bullet listed with a 25mm/16mm lens pairing and 5MP optical imaging. Compare the two sensor views independently when designing coverage. Thermal and optical resolutions describe different imaging systems; review both sets of specifications in the datasheet.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Technical specifications

FeaturesTrue WDR, HLC, 3D DNR, BLC, Built-in white light and loudspeaker
Lens25mm/16mm Fixed Lens
MP5MP
Image Resolutions5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), 3MP(2304× 1296 ),1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240
Sensor Size1/2.7 inch CMOS
IR Distance70-100m
IP RatingIP66
VoltageDC 12V / PoE
Temp Range‐22° F to 140° F, Less than 95% RH
Dimensions10.96in x 3.94in x 3.49in
Weight2.60 lbs
AudioBuilt In Mic
SD Card CompatibleYes

Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
