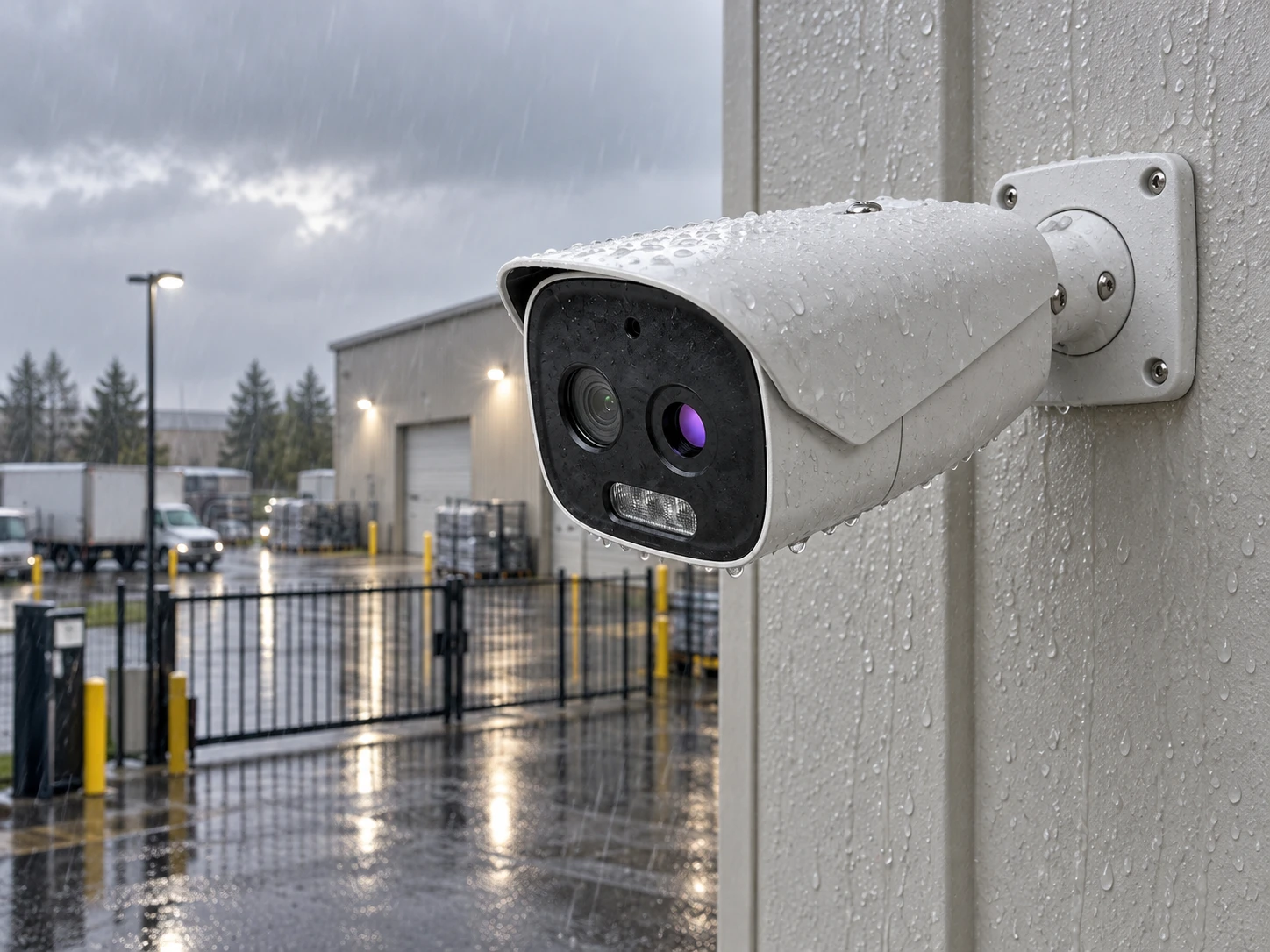

IPOB-SBTD5IR12 5MP Dual-Sensor Thermal/Optical Bullet (12.3mm/8mm) — Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.

1 of 7

Open full-resolution image

IPOB-SBTD5IR12

Name: IPOB-SBTD5IR12 5MP Dual-Sensor Thermal/Optical Bullet (12.3mm/8mm)
Brand: Sibell
SKU: IPOB-SBTD5IR12

5MP Dual-Sensor Thermal/Optical Bullet (12.3mm/8mm)

A 5MP dual-sensor bullet with the 12.3mm/8mm lens pairing. Compare it with the 7mm and 25mm thermal variants using the actual field-of-view specifications. Select the sensor coverage around the scene instead of assuming optical resolution describes thermal detail.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Key features

Feature illustrations are representative. See specifications for this model.

Resolution: A monitor shows a brick courtyard with a circular zoom inset revealing brick and leaf detail.

5MP Resolution

Sharp detail from a 1/2.7 inch BSI + NIR progressive CMOS sensor.

Feature illustration: Close-up of a compact fixed security-camera lens with clean optical glass, a broad courtyard softly reflected in the lens

Fixed Lens

12.3mm Thermal Lens / 8mm Optical Lens.

Night Vision

Illumination reach: 98 Feet.

Smart motion detection: A camera watches a driveway while a tablet highlights a walking person with a yellow box.

Smart Detection

Perimeter Protection, Face Detection.

Feature illustration: Macro of the small microphone opening in a security camera body, nearby human conversation softly out of focus, no exposed giant microphone

Audio

Built In Mic.

Feature illustration: Outdoor bullet security camera weathering driving rain above a windblown industrial courtyard, droplets frozen in side light

IP66 Weatherproof

Sealed for outdoor installation.

Feature illustration: Security camera beside two neatly arranged alternative power connections, Ethernet plug and low-voltage barrel lead, both clearly shown separately

Flexible Power

DC 12V / PoE.

Technical specifications

Features	True WDR, HLC, 3D DNR, BLC, Built-in white light and loudspeaker
Lens	12.3mm Thermal Lens / 8mm Optical Lens
MP	5MP
Image Resolutions	5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), 3MP(2304× 1296 ),1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240
Sensor Size	1/2.7 inch BSI + NIR progressive CMOS
IR Distance	98 Feet
IP Rating	IP66
Voltage	DC 12V / PoE
Temp Range	‐22° F to 140° F, Less than 95% RH
Dimensions	10.9in x 4in x 3.4in

Weight	3.96 lbs
Audio	Built In Mic
SD Card Compatible	Yes
Perimeter Protection	Yes
Object Detection	No
Face Detection	Yes
Face Recognition	No
Smart Motion Detection	No
LPR	No
