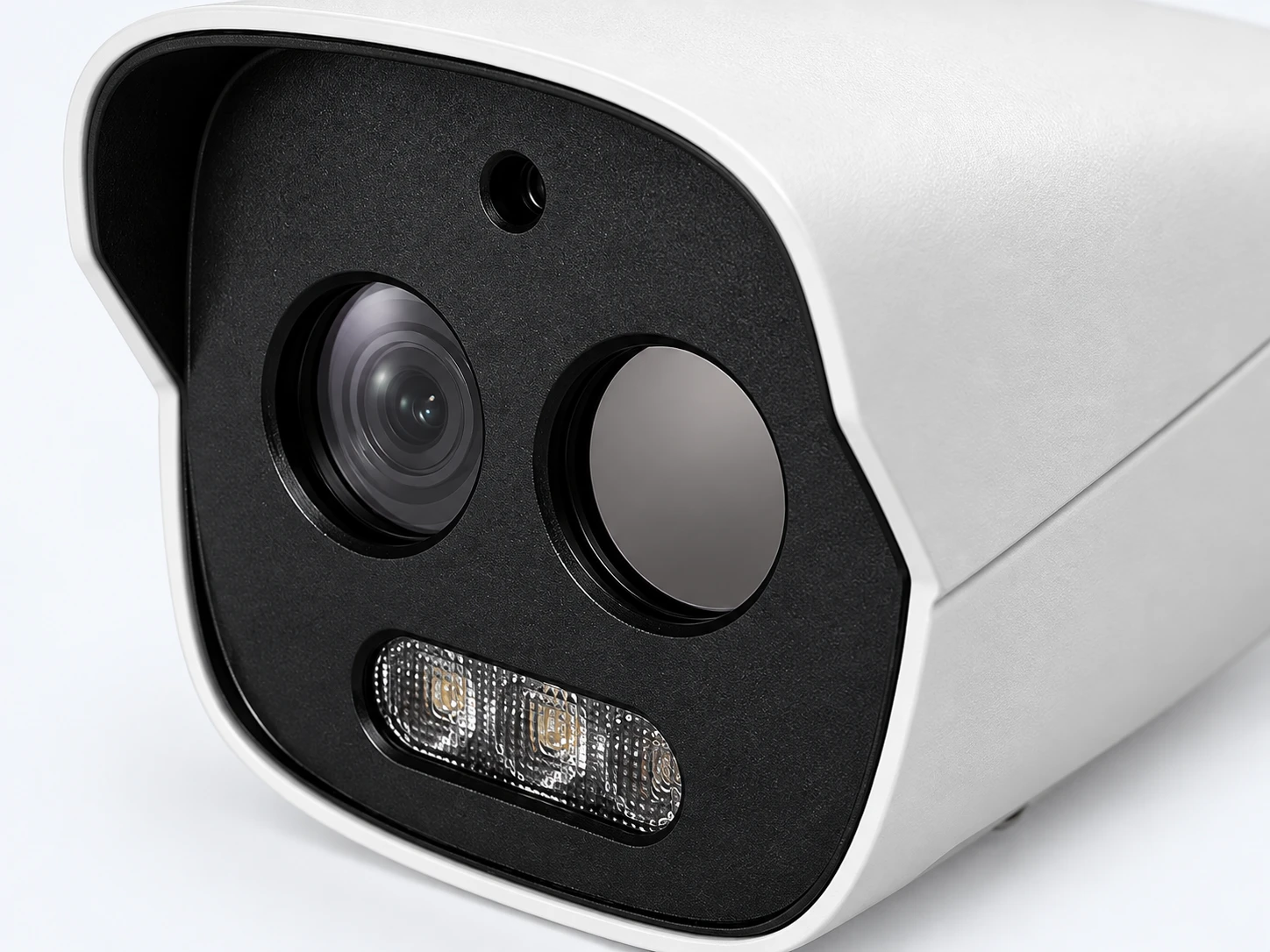

IPOB-SBETD5IR7 5MP Dual-Sensor Thermal/Optical Bullet (7mm/8mm)
Open full-resolution image

IPOB-SBETD5IR7

5MP Dual-Sensor Thermal/Optical Bullet (7mm/8mm)

This thermal/optical bullet uses the 7mm/8mm lens pairing in the dual-sensor range. It is a different field-of-view option from the longer-lens models. Evaluate the thermal view, optical view and installation geometry together before choosing a mounting location.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Technical specifications

FeaturesTrue WDR, HLC, 3D DNR, BLC,
Lens7 mm Thermal Lens / 8mm Optical Lens
MP5MP
Image Resolutions5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), 3MP(2304× 1296 ),1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240
Sensor Size1/2.7 inch BSI + NIR progressive CMOS
IR Distance98 Feet
IP RatingIP66
VoltageDC 12V / PoE
Temp Range‐22° F to 140° F, Less than 95% RH
Dimensions8.5in x 3.1in x 3.1in
Weight1.54 lbs
AudioCapable With External Mic
SD Card CompatibleYes
Perimeter ProtectionYes
Object DetectionNo
Face DetectionYes
Face RecognitionNo
Smart Motion DetectionNo
LPRNo

Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.

Additional documents

Related thermal cameras

View all thermal cameras

Recorders to pair with IPOB-SBETD5IR7

View all recorders

Confirm channel count, resolution support and available capacity against the datasheet before specifying a recorder.
