32 Channels, Up to 12MP
Records 32 IP cameras at up to 12MP each with 192 Mbps total bandwidth.
Illustrated installation. Surrounding equipment and furnishings are not included.
1 of 7
Open full-resolution image NVR-SB32C-P4K
32CH Sibell 4K 1.5U H.265+ NVR with 16 PoE Ports
A 32-channel network recorder with sixteen integrated PoE ports and a 1.5U chassis. Camera-channel capacity and physical PoE-port count are different limits. Plan the external network for cameras beyond the onboard ports, including bandwidth and power requirements. Choose up to 64TB of storage across four SATA bays (4 × 16TB). We install, configure, and set up your selected drives in the recorder before shipping.
Pricing and availability are provided by our authorized reseller.
Key features
Feature illustrations are representative. See specifications for this model.

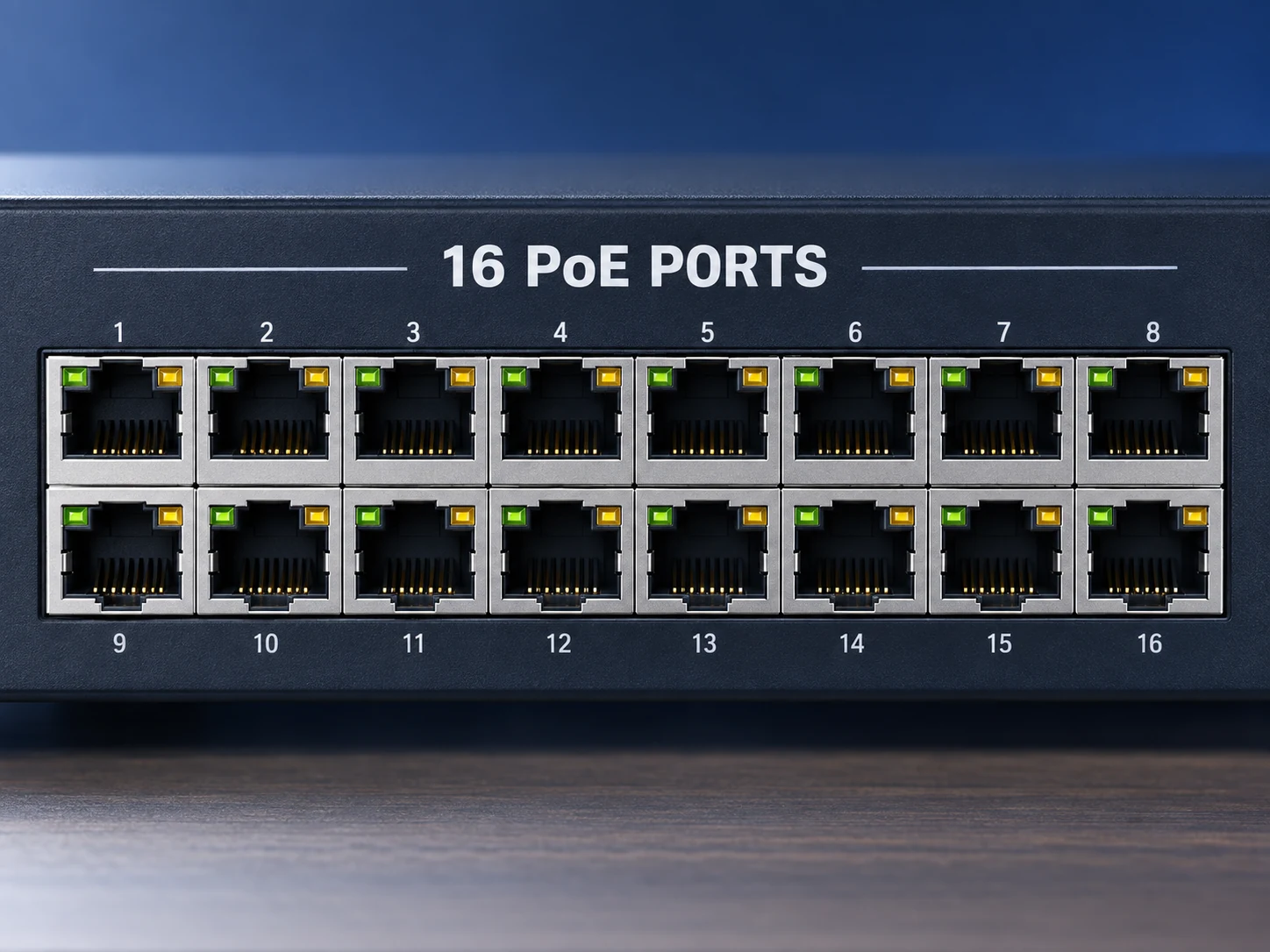

16 Built-in PoE Ports
Power and connect 16 cameras directly with single-cable runs.
4 SATA Bays
Storage capacity to sustain continuous 4K recording.
Recorder-Level AI
Object detection, face detection, and license plate recognition.
H.265S/H.265+ Compression
Modern codecs that materially cut storage consumption.
4K HDMI + VGA Output
Local monitoring up to 4K × 2K with splits from 1 to 36 panes.
Free Mobile Apps
Remote viewing via Sibell Mobile, Super Live Plus, and NVMS Lite.
Technical specifications
| Number Of Cameras | 32 |
|---|---|
| Number Of SATA Connections | 4 |
| Has Alarm Inputs / Outputs | Yes |
| Video Output Types | HDMI/VGA |
| Video Output Resolutions: | 4K × 2K / 1920 × 1080 / 1280 × 1024 |
| Size | 1.5U |
| Resolutions Capable | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF |
| Max Bandwidth | 192 Mbps |
| Display Screen Split | 1/4/6/8/9/13/16/25/32/36 |
| Compression of Video | H.265S/H.265+/H.265/H.264 |
| Connection Apps | Sibell Mobile, Super Live Plus, NVMS Lite |
|---|---|
| Perimeter Protection | No |
| Object Detection | Yes |
| Face Detection | Yes |
| Face Recognition | No |
| Smart Motion Detection | No |
| LPR | Yes |
| Maximum supported storage | 64TB total across 4 SATA bays (4 × 16TB) |
| Available installed storage | 2TB, 4TB, 6TB, 10TB, 12TB, 16TB, 20TB, 24TB, 32TB, 36TB, 40TB, 48TB, 64TB |
| Largest offered drive configuration | 4 × 16TB Seagate surveillance drives |
Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
