32 Channels
Records up to 32 cameras with 192 Mbps total bandwidth.

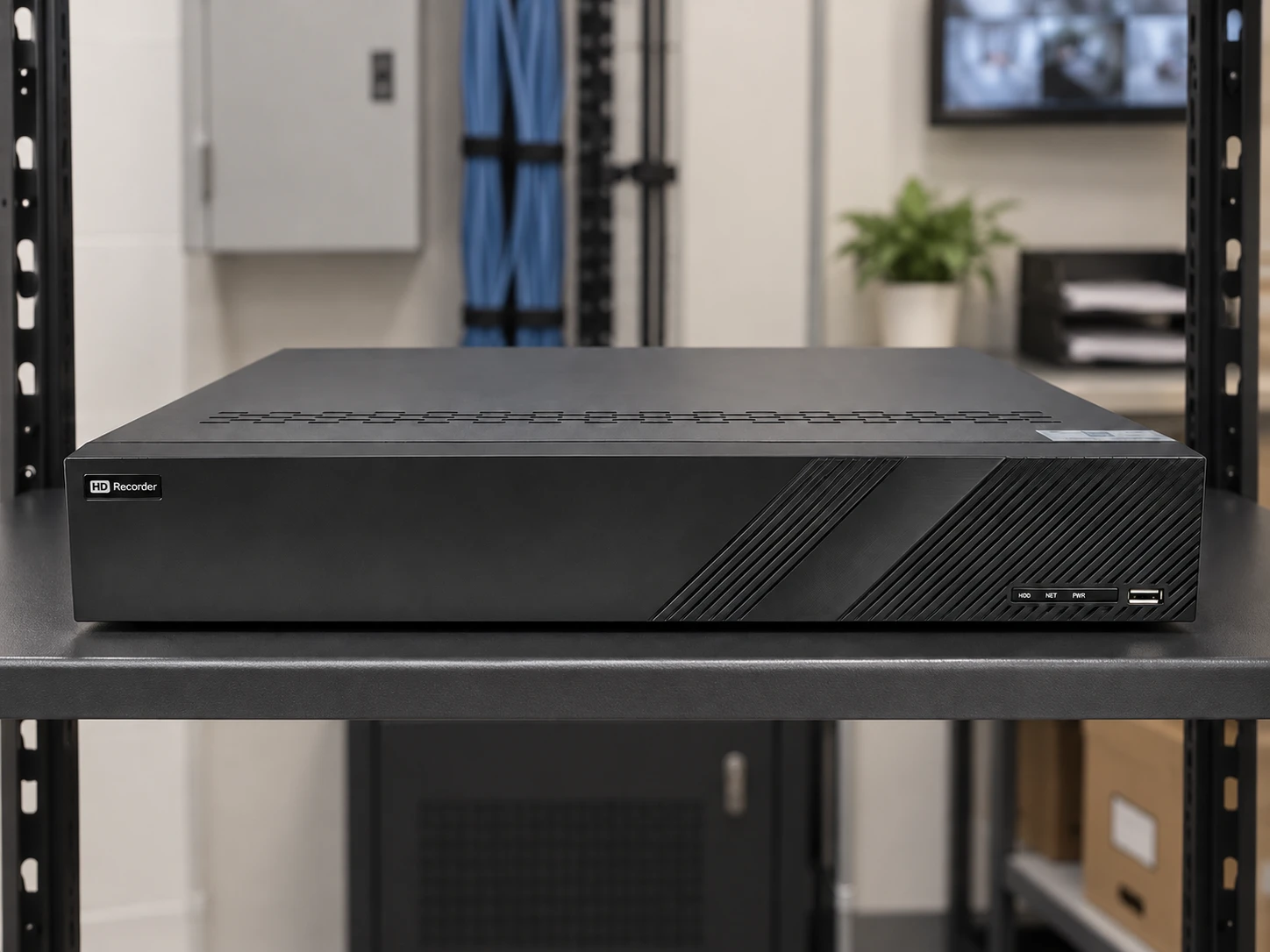

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.
1 of 7
Open full-resolution image NVR-SB32-P4K
32CH Sibell 4K NVR with 16 PoE Ports (2U, 8 SATA)
A 32-channel IP recorder with sixteen PoE ports and eight SATA connections in a 2U chassis. The additional drive connections provide a different storage configuration from smaller recorders. Confirm supported disks, capacity limits and network bandwidth before sizing the installation.
Pricing and availability are provided by our authorized reseller.
Key features
Feature illustrations are representative. See specifications for this model.
8 SATA Bays
Storage capacity sized to the recorder's channel count and retention needs.
Modern Compression
H.265S/H.265+/H.265/H.264 keeps storage consumption down.
Recorder-Level AI
Object Detection, Face Detection, LPR.
Free Remote Apps
Remote viewing via Sibell Mobile, Super Live Plus, NVMS Lite.
NDAA Compliant
Conforms to National Defense Authorization Act requirements.
Technical specifications
| Number Of Cameras | 32 |
|---|---|
| Number Of SATA Connections | 8 |
| Has Alarm Inputs / Outputs | Yes |
| Video Output Types | HDMI/VGA |
| Video Output Resolutions: | 4K × 2K / 1920 × 1080 / 1280 × 1024 |
| Size | 2U |
| Resolutions Capable | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF |
| Max Bandwidth | 192 Mbps |
| Display Screen Split | 1/4/6/8/9/13/16/25/32/36 |
| Compression of Video | H.265S/H.265+/H.265/H.264 |
| Connection Apps | Sibell Mobile, Super Live Plus, NVMS Lite |
|---|---|
| Perimeter Protection | No |
| Object Detection | Yes |
| Face Detection | Yes |
| Face Recognition | No |
| Smart Motion Detection | No |
| LPR | Yes |
| Available installed storage | 2TB, 4TB, 6TB, 10TB, 12TB, 16TB, 20TB, 24TB, 32TB, 36TB, 40TB, 48TB, 64TB, 80TB |
| Largest offered drive configuration | 8 × 10TB Seagate surveillance drives |
Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
