128 Channels
Records up to 128 cameras with 768 Mbps total bandwidth.

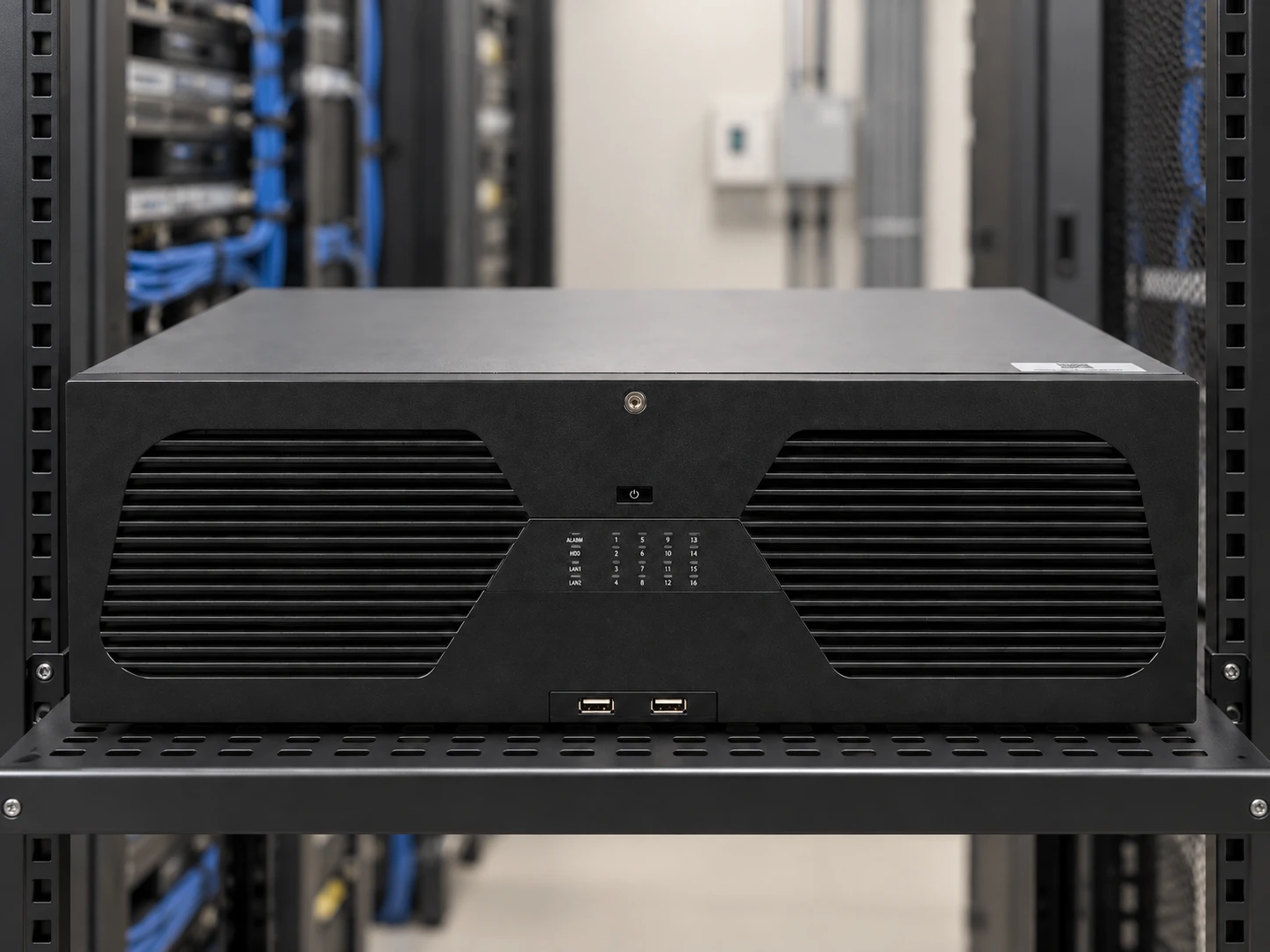

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.
1 of 6
Open full-resolution image NVR-SB128AI

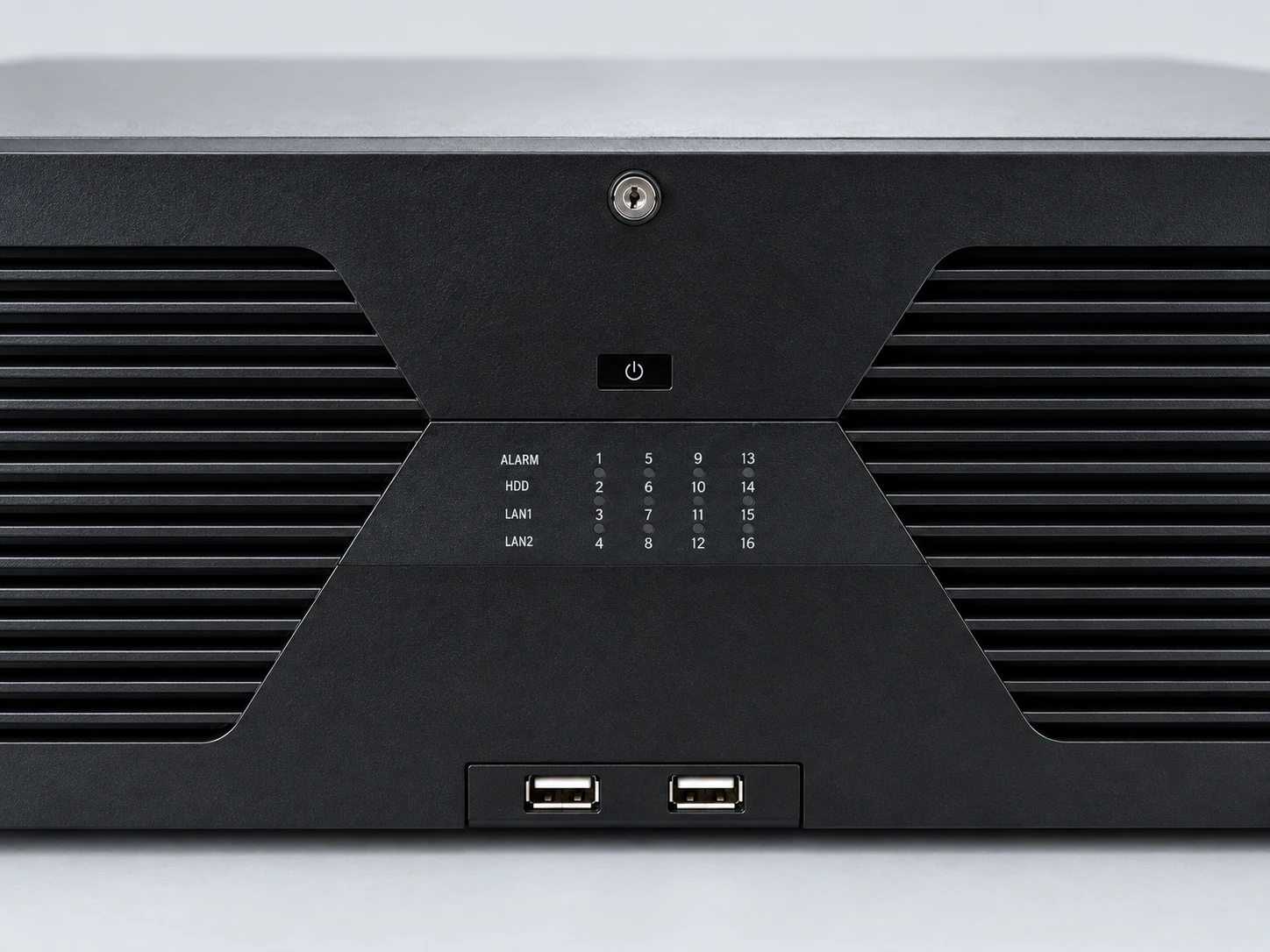

128CH Sibell 4K AI NVR (3U, 16 SATA)
A 128-channel AI network recorder with sixteen SATA connections in a 3U chassis. Large channel counts make network and storage planning especially important. Work through camera bitrates, retention targets and recorder specifications together rather than sizing the system from channel count alone.
Pricing and availability are provided by our authorized reseller.
Key features
Feature illustrations are representative. See specifications for this model.
16 SATA Bays
Storage capacity sized to the recorder's channel count and retention needs.
Modern Compression
H.265S/H.265+/H.265/H.264 keeps storage consumption down.
Recorder-Level AI
Perimeter Protection, Face Detection, Face Recognition, LPR.
Free Remote Apps
Remote viewing via Sibell Mobile, Super Live Plus, NVMS Lite.
NDAA Compliant
Conforms to National Defense Authorization Act requirements.
Technical specifications
| Number Of Cameras | 128 |
|---|---|
| Number Of SATA Connections | 16 |
| Has Alarm Inputs / Outputs | Yes |
| Video Output Types | HDMI/VGA |
| Video Output Resolutions: | 4K × 2K / 1920 × 1080 / 1280 × 1024 |
| Size | 3U |
| Resolutions Capable | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF |
| Max Bandwidth | 768 Mbps |
| Display Screen Split | 1/4/6/8/9/13/16/25/32/36/64 |
| Compression of Video | H.265S/H.265+/H.265/H.264 |
| Connection Apps | Sibell Mobile, Super Live Plus, NVMS Lite |
|---|---|
| Perimeter Protection | Yes |
| Object Detection | No |
| Face Detection | Yes |
| Face Recognition | Yes |
| Smart Motion Detection | No |
| LPR | Yes |
| Available installed storage | 2TB, 4TB, 6TB, 10TB, 12TB, 16TB, 20TB, 24TB, 32TB, 36TB, 40TB, 48TB, 64TB, 80TB, 96TB, 112TB, 128TB, 144TB, 160TB |
| Largest offered drive configuration | 16 × 10TB Seagate surveillance drives |
Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
