24 true 8MP cameras
12 bullet + 12 dome/turret cameras record up to 3840 × 2160 at 20fps with fixed 2.8mm lenses.
SYS-SB32-8MP-M-C24

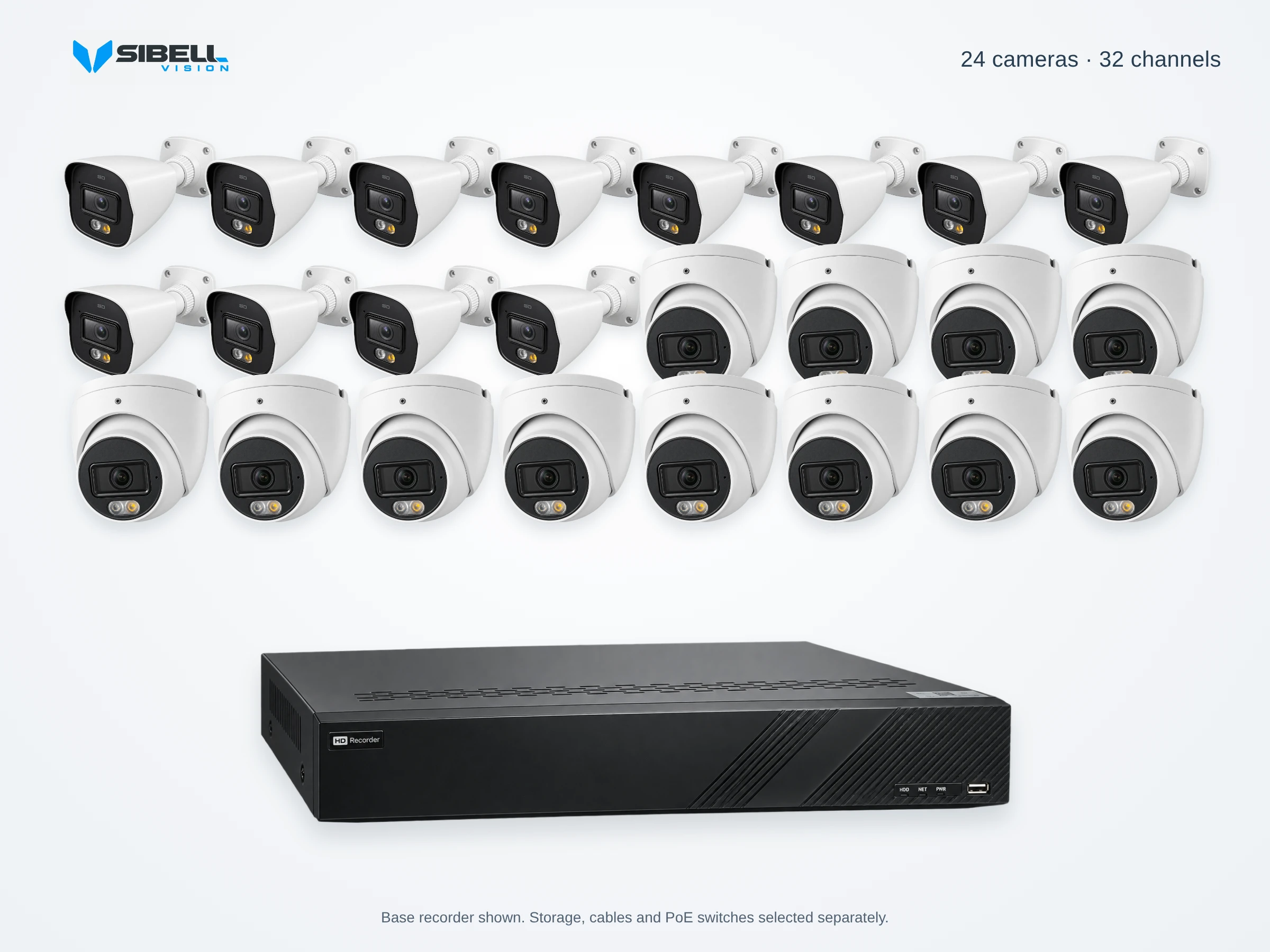

24-Camera 4K Bullet and Dome System with 32-Channel NVR
24 cameras included with a 32-channel recorder. 8 channels remain available for future cameras. 12 bullet + 12 dome/turret cameras provide 8MP video through fixed 2.8mm lenses. The recorder’s 16 built-in PoE ports power 16 cameras. The other 8 need PoE switch ports: add the optional PoE Switches package (1 × 8-port PoE switch, 5-port gigabit switch and 3 patch leads) or use PoE ports you already have. Choose storage, ready-terminated camera cables and PoE switches at Security Camera King.
Number of cameras
24 cameras included · 32-channel recorder · Room for 8 more
Pricing and availability are provided by our authorized reseller.
Key features
Feature illustrations are representative. See specifications for this model.
Wide-angle coverage
106° horizontal field of view suits entrances, rooms and general property coverage.
Infrared and white-light viewing
Dual illumination with smart supplement light; documented IR and white-light reach is 20–30m.
PoE for all 24 cameras
The recorder’s 16 built-in PoE ports power 16 cameras. The other 8 need PoE switch ports: add the optional PoE Switches package (1 × 8-port PoE switch, 5-port gigabit switch and 3 patch leads, $116.38) or use PoE ports you already have. The gigabit switch in that option links the recorder and PoE switches to your network; it does not supply PoE. Switch appearance may vary with availability.
Storage sized to suit
Choose 2TB, 4TB, 6TB, 10TB, 12TB, 16TB, 20TB, 24TB, 32TB, 36TB, 40TB, 48TB, 64TB, 80TB from the Storage Options drop-down; drives are installed in the recorder before dispatch. Select No Storage to fit your own compatible surveillance drive.
Smart camera events
Smart motion detection, line crossing, region intrusion and object events, configured in the camera and supported recorder menus.
NDAA compliant
Sibell Vision cameras and recorder meet the NDAA sourcing requirement for US government and contractor sites.
IP67 camera housings
Outdoor-rated camera housings; keep terminations weather-protected and the recorder indoors.
Cables when you need them
Add 24 × 100ft CAT6 camera cables + 1 patch lead for $295.29, ready-terminated. Leave this option off when using existing cabling.
Free app, no subscription
View live and recorded video with the free SuperLive Plus app for iOS and Android; footage stays on your recorder with no cloud fees.
Technical specifications
Complete System
12 specifications| Package SKU | SYS-SB32-8MP-M-C24 |
|---|---|
| Camera count | 24 |
| Camera combination | 12 bullet + 12 dome/turret cameras |
| Recorder model | NVR-SB32C-P4K |
| Recording channels | 32 |
| Included camera resolution | 8MP / 4K |
| Storage | Optional; choose 2TB, 4TB, 6TB, 10TB, 12TB, 16TB, 20TB, 24TB, 32TB, 36TB, 40TB, 48TB, 64TB, 80TB from the Storage Options drop-down, installed before dispatch |
|---|---|
| Storage bays available | 4 SATA bays; up to 16TB per bay; 64TB total |
| Cables | Optional add-on ($295.29): 24 × 100-foot ready-terminated CAT6 camera cables plus 1 × 5ft patch lead; base price includes no cables |
| Spare recorder channels | 8 |
| Package saving | 5% compared with the listed components bought separately |
| Warranty | Cameras and recorder: 3 years under SCK policy; accessories vary |
Bullet Camera — IPOB-SB8IR28F
32 specifications
| Model | IPOB-SB8IR28F |
|---|---|
| Quantity | 12 |
| Housing | Bullet |
| Resolution | 8MP / 3840 × 2160 |
| Image sensor | 1/2.8-inch CMOS |
| Installed lens | 2.8mm fixed, F1.6 |
| Field of view | 106° horizontal / 57° vertical / 124° diagonal |
| Focus | Fixed; no motorized optical zoom |
| Maximum main-stream rate | 20fps at 8MP; up to 30fps at lower resolutions (60Hz mode) |
| Main-stream compression | H.265+, H.265, H.264+, H.264 |
| Streams | Three video streams |
| Bitrate range | 64Kbps–12Mbps; CBR or VBR |
| Day/night | ICR automatic switching |
| Illumination | Infrared and white light with smart supplement light |
| IR / white-light range | 20–30m each, depending on conditions |
| Minimum illumination | 0.02 lux at F1.6, AGC on; 0 lux with illumination |
| Wide dynamic range | 120dB |
|---|---|
| Image controls | 3D DNR, BLC, HLC, defog, ROI, mirror/flip and corridor pattern |
| Audio | Built-in microphone; 1-channel audio input; G.711A/U |
| Local storage | microSD slot up to 256GB; card not included |
| Network | RJ45 Ethernet; ONVIF; RTSP; P2P |
| Detection | Motion, smart motion, line crossing, region intrusion, abandoned/missing objects and video exception |
| Classification | Human / motor vehicle / non-motor vehicle for supported smart events |
| License-plate recognition | Not provided by the included cameras |
| Power | IEEE 802.3af PoE or DC12V; package uses PoE |
| Ingress protection | IP67 camera housing; protect cable connections separately |
| Operating conditions | −30°C to 60°C (−22°F to 140°F); less than 95% RH, non-condensing |
| Mounting | Wall or ceiling; specialty mounts sold separately |
| Reset | Reset control provided |
| Maximum camera power | Less than 7W |
| Dimensions | 167.6 × 75 × 74.6 mm |
| Net camera weight | Approximately 0.42kg |
Dome / Turret Camera — IPOD-SB8IR28AF
32 specifications
| Model | IPOD-SB8IR28AF |
|---|---|
| Quantity | 12 |
| Housing | Dome / turret |
| Resolution | 8MP / 3840 × 2160 |
| Image sensor | 1/2.8-inch CMOS |
| Installed lens | 2.8mm fixed, F1.6 |
| Field of view | 106° horizontal / 57° vertical / 124° diagonal |
| Focus | Fixed; no motorized optical zoom |
| Maximum main-stream rate | 20fps at 8MP; up to 30fps at lower resolutions (60Hz mode) |
| Main-stream compression | H.265+, H.265, H.264+, H.264 |
| Streams | Three video streams |
| Bitrate range | 64Kbps–12Mbps; CBR or VBR |
| Day/night | ICR automatic switching |
| Illumination | Infrared and white light with smart supplement light |
| IR / white-light range | 20–30m each, depending on conditions |
| Minimum illumination | 0.02 lux at F1.6, AGC on; 0 lux with illumination |
| Wide dynamic range | 120dB |
|---|---|
| Image controls | 3D DNR, BLC, HLC, defog, ROI, mirror/flip and corridor pattern |
| Audio | Built-in microphone; 1-channel audio input; G.711A/U |
| Local storage | microSD slot up to 256GB; card not included |
| Network | RJ45 Ethernet; ONVIF; RTSP; P2P |
| Detection | Motion, smart motion, line crossing, region intrusion, abandoned/missing objects and video exception |
| Classification | Human / motor vehicle / non-motor vehicle for supported smart events |
| License-plate recognition | Not provided by the included cameras |
| Power | IEEE 802.3af PoE or DC12V; package uses PoE |
| Ingress protection | IP67 camera housing; protect cable connections separately |
| Operating conditions | −30°C to 60°C (−22°F to 140°F); less than 95% RH, non-condensing |
| Mounting | Wall or ceiling; specialty mounts sold separately |
| Reset | Reset control provided |
| Maximum camera power | Less than 6.5W |
| Dimensions | 94.6mm diameter × 82.8mm height |
| Net camera weight | Approximately 0.45kg |
Recorder — NVR-SB32C-P4K
28 specifications
| Model | NVR-SB32C-P4K |
|---|---|
| IP camera inputs | 32 |
| Maximum supported input resolution | 12MP (recorder input capability; included cameras are 8MP) |
| Incoming / outgoing bandwidth | 192 / 192Mbps |
| Video compression | H.265S / H.265+ / H.265 / H.264 |
| Built-in PoE ports | 16 × 100Mbps RJ45 |
| PoE standards | IEEE 802.3af/at |
| Recorder PoE budget | Up to 150W |
| LAN connections | 2 × gigabit RJ45 |
| Storage bays | 4 SATA bays |
| Supported per-drive capacity | Up to 16TB per bay; 64TB total |
| Installed drives | Only when a Storage Option is selected; fitted before dispatch |
| Local display outputs | HDMI1 up to 4K; HDMI2 and VGA up to 1080p |
| Decoding / playback examples | 1 × 12MP or 4 × 1080p |
| Maximum simultaneous playback channels | 16 (subject to resolution and decoding limits) |
|---|---|
| Recording modes | Manual, scheduled, motion and supported event recording |
| Search modes | Time, event, tag and smart search |
| Backup | USB storage and network backup |
| USB ports | 1 × USB 3.0; 2 × USB 2.0 |
| Network audio inputs | 32 channels from IP cameras |
| Audio connections | RCA two-way audio input / local audio output |
| Mobile platforms | iOS / Android via supported software |
| Maximum client connections | 128 |
| Power supply | ATX 300W (PoE model) |
| Dimensions (W × D × H) | 440 × 390 × 70 mm |
| Operating conditions | −10°C to 50°C; 10–90% humidity; indoor installation |
| Analytics compatibility | Event support depends on camera, firmware and settings; camera/recorder feature lists do not guarantee every AI function on all channels |
| License-plate recognition in this package | Not provided by the included cameras |
Camera connections
6 specifications
| Included cameras | 24 |
|---|---|
| Recorder capacity | 32 channels |
| Recorder PoE ports | 16 |
| Spare recording channels | 8 |
|---|---|
| Connections | The recorder’s 16 built-in PoE ports power 16 cameras. The other 8 need PoE switch ports: add the optional PoE Switches package (1 × 8-port PoE switch, 5-port gigabit switch and 3 patch leads, $116.38) or use PoE ports you already have. The gigabit switch in that option links the recorder and PoE switches to your network; it does not supply PoE. Switch appearance may vary with availability. |
| Cameras needing external PoE | 8 |
Optional PoE Switches
10 specifications
| Included in base price | No; optional PoE Switches add-on |
|---|---|
| Option price | $116.38 |
| Option contents | 1 × 8-port PoE switch, 5-port gigabit switch and 3 patch leads |
| 8-port PoE switch | 1 × POE-8MB2GP: 8 PoE ports (ports 1–4 PoE+) plus 2 uplink ports (LAN and NVR); 10/100Mbps; 125W PoE budget |
| Gigabit switch | 1 × Switch-5G: 5 × 10/100/1000Mbps Ethernet; no PoE output; appearance may vary |
| Patch leads | 3 × 5ft CAT5 |
|---|---|
| External PoE ports supplied | 8 for the 8 cameras beyond the recorder’s 16 PoE ports |
| Without this option | Power the other 8 cameras from PoE switch ports you already have |
| Installation | Indoor, ventilated and dry |
| Bandwidth planning | Keep camera totals within each switch uplink and the NVR’s 192Mbps incoming limit; allow overhead |
Optional eight-bay recorder
5 specifications
| Model | NVR-SB32-P4K |
|---|---|
| When included | Storage choices above 64TB |
| Drive bays | 8 SATA bays |
| Largest installed-storage option | 80TB |
|---|---|
| Pricing | Recorder upgrade and installed drives included in the selected storage option price. |
Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
