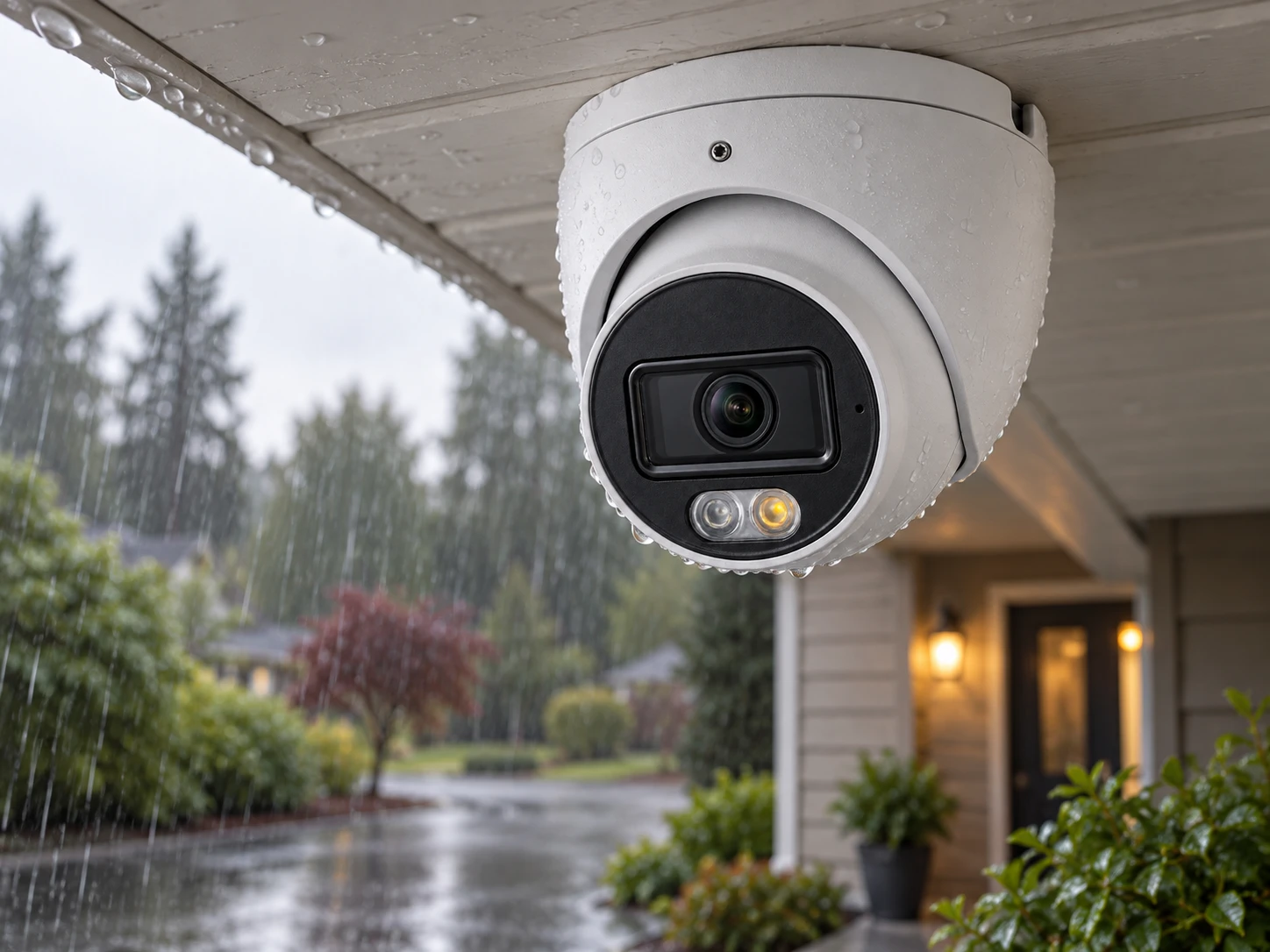

Illustrated installation. Surrounding equipment and furnishings are not included.

1 of 7

Open full-resolution image

IPOD-SB8IR28AF

Name: IPOD-SB8IR28AF 8MP Dual Illumination IP Fixed Lens Dome
Brand: Sibell
SKU: IPOD-SB8IR28AF

8MP Dual Illumination IP Fixed Lens Dome

This fixed-lens 8MP IP dome combines infrared and white-light illumination. It provides a consistent viewpoint once mounted. Choose the location around the lens coverage, then configure the lighting behavior to suit the scene and review recording settings for the connected NVR.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Key features

Feature illustrations are representative. See specifications for this model.

Resolution: A monitor shows a brick courtyard with a circular zoom inset revealing brick and leaf detail.

8MP Resolution

Sharp detail from a 1/2.8 inch CMOS sensor.

Feature illustration: Close-up of a compact fixed security-camera lens with clean optical glass, a broad courtyard softly reflected in the lens

Fixed Lens

2.8mm @ F1.6.

Night Vision

Illumination reach: 20-30m.

Smart motion detection: A camera watches a driveway while a tablet highlights a walking person with a yellow box.

Smart Detection

Object Detection, Smart Motion Detection.

Feature illustration: Macro of the small microphone opening in a security camera body, nearby human conversation softly out of focus, no exposed giant microphone

Audio

Built In Mic.

Feature illustration: White dome security camera fixed beneath an exterior soffit, rain streaks and crisp water droplets, approaching storm beyond a commercial entrance

IP67 Weatherproof

Sealed for outdoor installation.

Feature illustration: Security camera beside two neatly arranged alternative power connections, Ethernet plug and low-voltage barrel lead, both clearly shown separately

Flexible Power

DC 12V / PoE.

Technical specifications

Features	H.265+ \| 3D DNR, HWDR, HLC, BLC, Defog \| ROI Coding \| Support Smart Supplement Light \| SMD Support
Lens	2.8mm @ F1.6
MP	8MP
Image Resolutions	8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ), 5MP( 2592 × 1944), 4MP ( 2560 × 1520), 2K(2560 × 1440 ), 3MP(2304 × 1296), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
Sensor Size	1/2.8 inch CMOS
IR Distance	20-30m
IP Rating	IP67
Voltage	DC 12V / PoE
Temp Range	-22° F ~ +140° F/ Less than 95% RH
Dimensions	3.72in x 3.25in x 3.25in

Weight	1.06 lb
Audio	Built In Mic
SD Card Compatible	Yes
Perimeter Protection	No
Object Detection	Yes
Face Detection	No
Face Recognition	No
Smart Motion Detection	Yes
LPR	No
