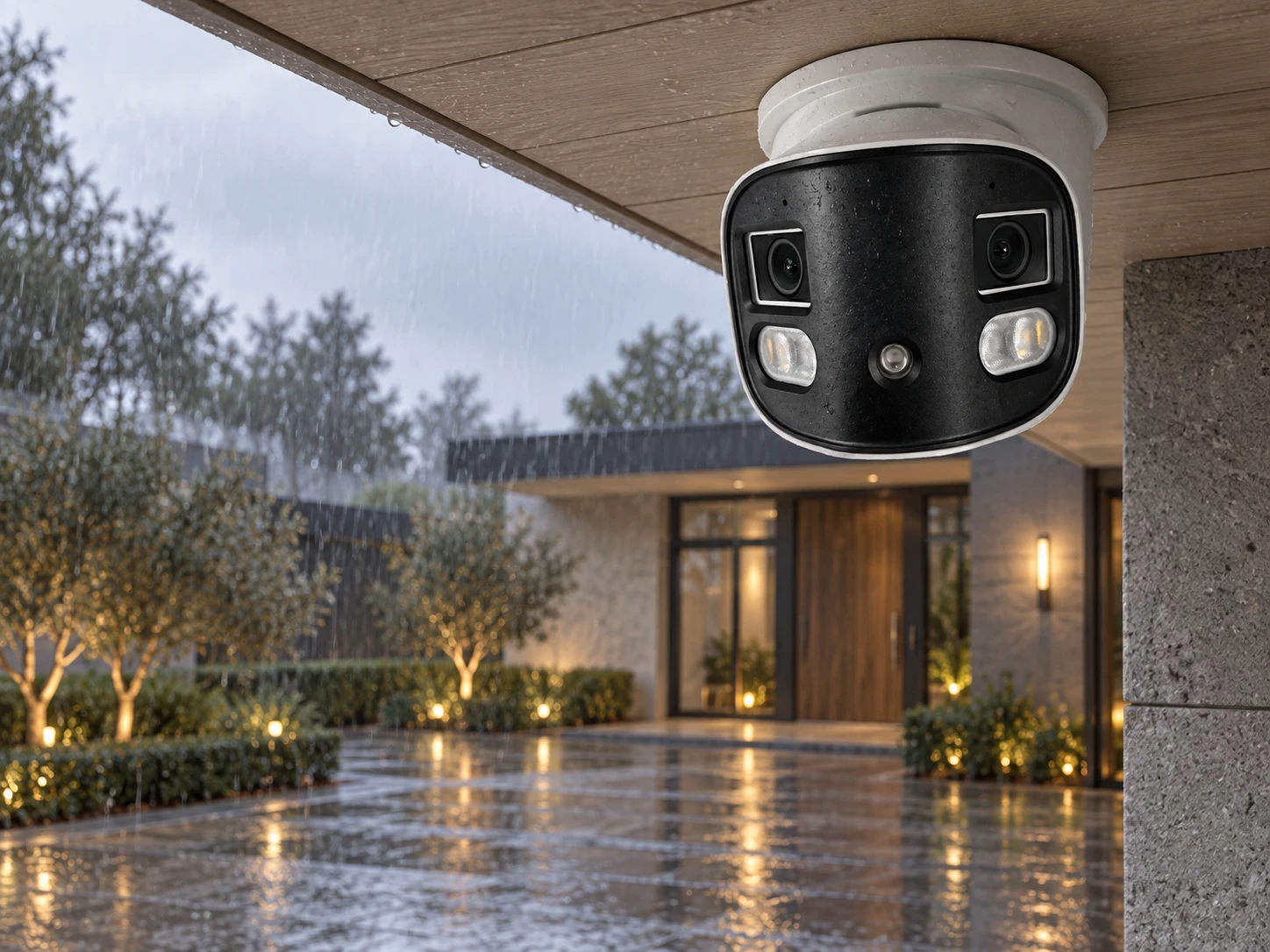

IPOD-SB8IR28AF-180 8MP 180° Panoramic IP Turret Camera — Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.

1 of 8

Open full-resolution image

IPOD-SB8IR28AF-180

Name: IPOD-SB8IR28AF-180 8MP 180° Panoramic IP Turret Camera
Brand: Sibell
SKU: IPOD-SB8IR28AF-180

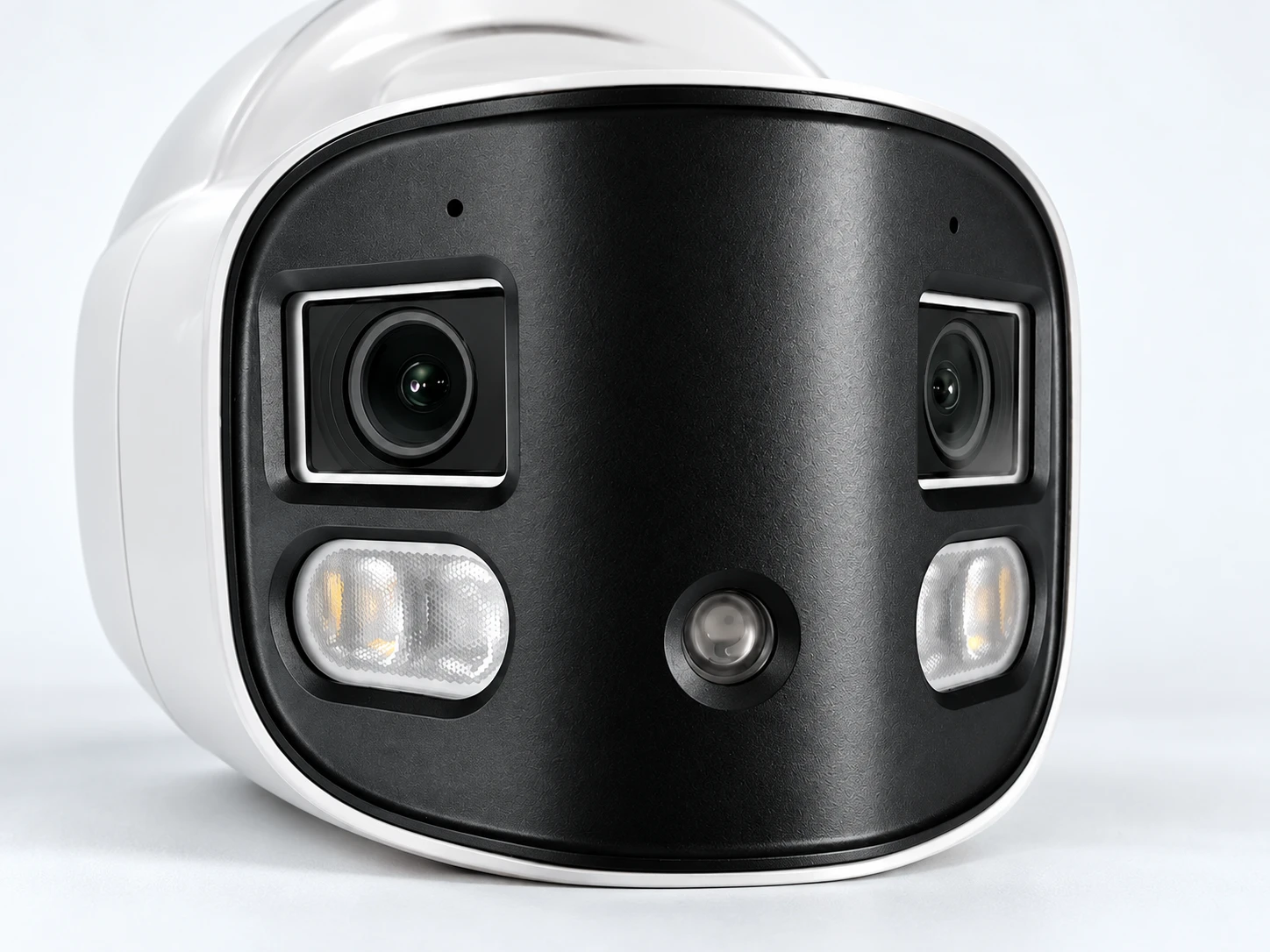

8MP 180° Panoramic IP Turret Camera

Bring a broad scene into a single 180-degree panoramic view with this 8MP turret. Compare the panoramic format with conventional fixed cameras when deciding how to cover a wider area. Plan mounting height and scene geometry to use the available view effectively.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Key features

Feature illustrations are representative. See specifications for this model.

Resolution: A monitor shows a brick courtyard with a circular zoom inset revealing brick and leaf detail.

8MP Resolution

Sharp detail from a 1/2.7" Progressive Scan CMOS x2 sensor.

Feature illustration: Close-up of a compact fixed security-camera lens with clean optical glass, a broad courtyard softly reflected in the lens

Fixed Lens

2.8mm @ f1.6.

Night Vision

Illumination reach: IR Range: up to 30m; White light range: up to 20m.

Smart motion detection: A camera watches a driveway while a tablet highlights a walking person with a yellow box.

Smart Detection

Perimeter Protection, Object Detection, Face Detection, Smart Motion Detection.

Feature illustration: Macro of the small microphone opening in a security camera body, nearby human conversation softly out of focus, no exposed giant microphone

Audio

Built In Mic.

Feature illustration: Outdoor bullet security camera weathering driving rain above a windblown industrial courtyard, droplets frozen in side light

IP66 Weatherproof

Sealed for outdoor installation.

Feature illustration: Security camera beside two neatly arranged alternative power connections, Ethernet plug and low-voltage barrel lead, both clearly shown separately

Flexible Power

12V DC/POE.

Technical specifications

Features	H.265+/H.265/H.264+/H.264/MJPEG coding \| ICR auto switch, true day / night vision \| Support smart supplement light \| 3D DNR, WDR, HLC, BLC and ROI coding \| Support three streams
Lens	2.8mm @ f1.6
MP	8MP
Image Resolutions	8MP (4640×1760), 6MP(3632×1632), 4MP(3200×1200), 2MP (2304×864), 2048×768, 1600×608, 1200×448, 960×368, 640×240
Sensor Size	1/2.7" Progressive Scan CMOS x2
IR Distance	IR Range: up to 30m; White light range: up to 20m
IP Rating	IP66
Voltage	12V DC/POE
Temp Range	- 30 °C ~ 60 °C (-22°F~140°F); Humidity: less than 95 % (non-condensing)
Dimensions	4.40in x 4.0in

Weight	1.6 lb
Audio	Built In Mic
SD Card Compatible	Yes
Perimeter Protection	Yes
Object Detection	Yes
Face Detection	Yes
Face Recognition	No
Smart Motion Detection	Yes
LPR	No
