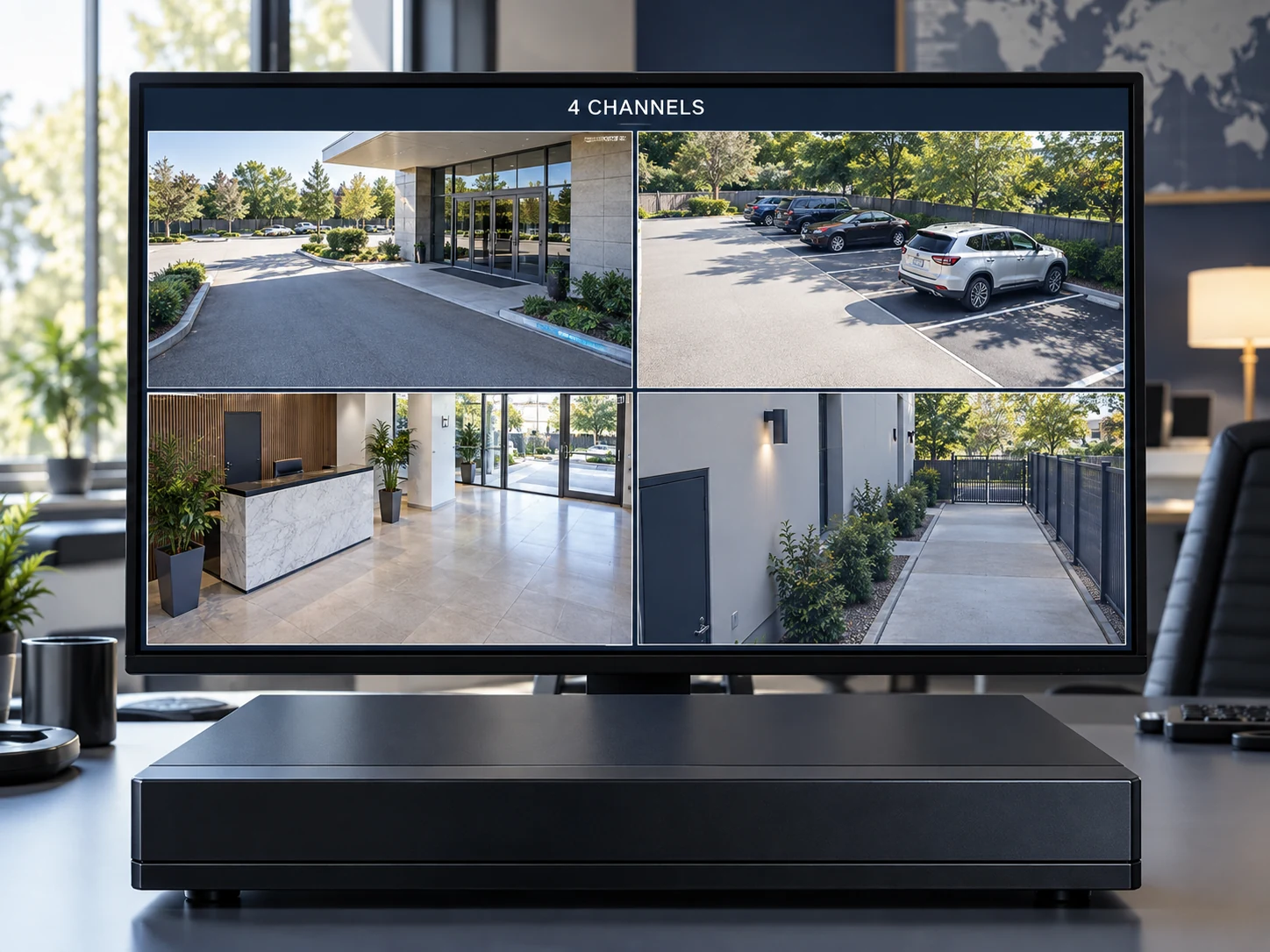

4 Channels
Records up to 4 cameras with 80 Mbps total bandwidth.

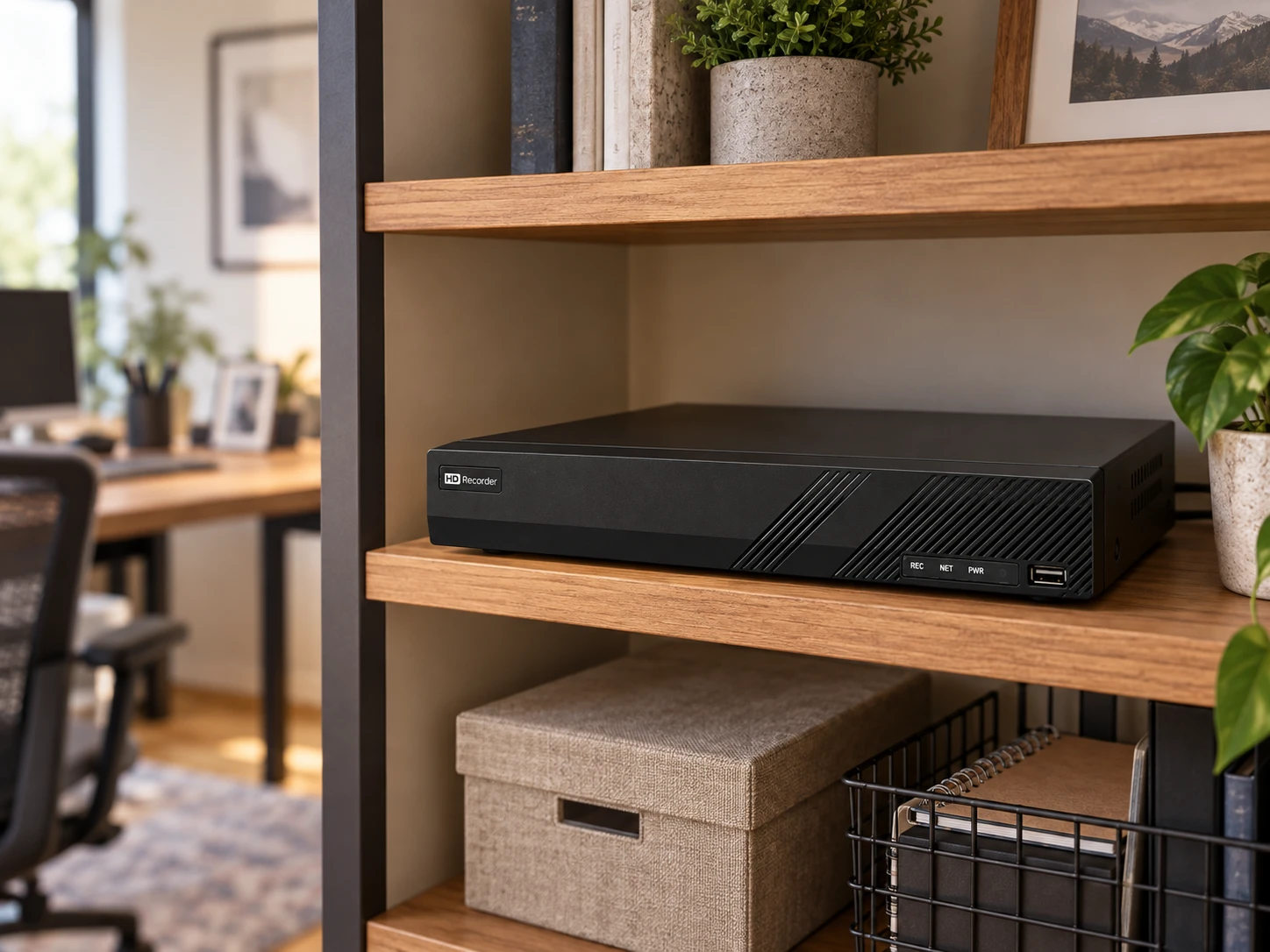

Illustrated installation. Surrounding equipment and furnishings are not included.
1 of 8
Open full-resolution image NVR-SB4ME-P4KB2

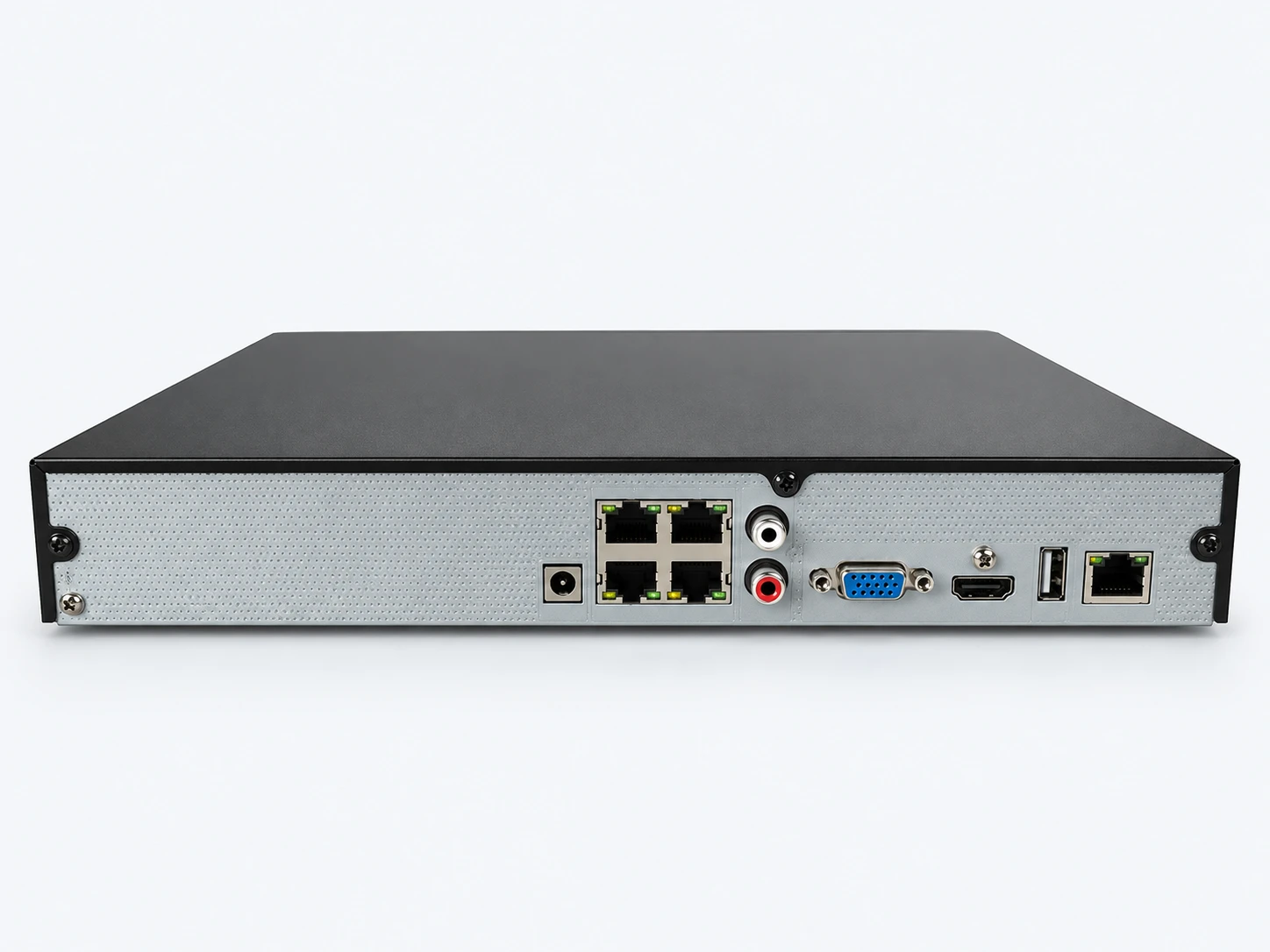

4CH Sibell 4K AI Mini NVR with 4 PoE Ports (V2)
The four-channel V2 mini NVR includes four PoE ports for a compact IP system. Match its recording capabilities to the cameras you plan to connect. Allow for any future expansion before selecting the channel count, and size the drive around your retention target.
Pricing and availability are provided by our authorized reseller.
Key features
Feature illustrations are representative. See specifications for this model.
1 SATA Bay
Storage capacity sized to the recorder's channel count and retention needs.
Modern Compression
H.265S / H.265+ / H.265 / H.264 keeps storage consumption down.
Recorder-Level AI
Perimeter Protection, Object Detection, Face Detection, Smart Motion Detection, LPR.
NDAA Compliant
Conforms to National Defense Authorization Act requirements.
Technical specifications
| Number Of Cameras | 4 |
|---|---|
| Number Of SATA Connections | 1 |
| Has Alarm Inputs / Outputs | Yes |
| Video Output Types | HDMI/VGA |
| Video Output Resolutions: | HDMI : 3840 x 2160 / 1920 x 1080 / 1280 x 1024/ 1024 x 768 | VGA: 1920 x 1080 / 1280 1024/ 1024 x 768 |
| Size | Mini 1U |
| Resolutions Capable | 8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/ 960H/D1/CIF |
| Max Bandwidth | 80 Mbps |
| Display Screen Split | 1/4 |
| Compression of Video | H.265S / H.265+ / H.265 / H.264 |
|---|---|
| Perimeter Protection | Yes |
| Object Detection | Yes |
| Face Detection | Yes |
| Face Recognition | No |
| Smart Motion Detection | Yes |
| LPR | Yes |
| Available installed storage | 2TB, 4TB, 6TB, 10TB |
| Largest offered drive configuration | 1 × 10TB Seagate surveillance drives |
Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
