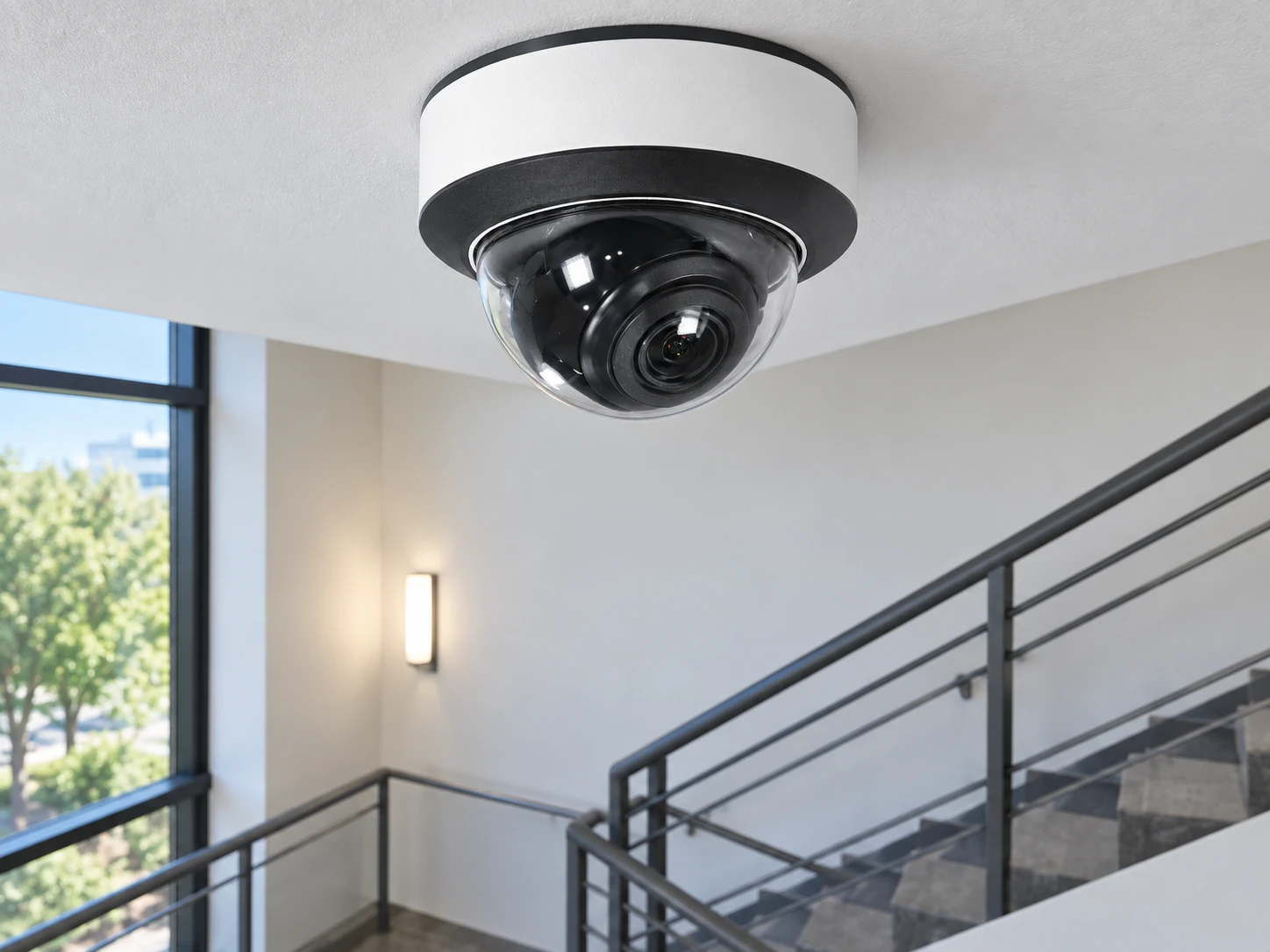

IPVD-SB5IRZ 5MP Motorized Lens IP Vandal Dome — Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.

1 of 7

Open full-resolution image

IPVD-SB5IRZ

Name: IPVD-SB5IRZ 5MP Motorized Lens IP Vandal Dome
Brand: Sibell
SKU: IPVD-SB5IRZ

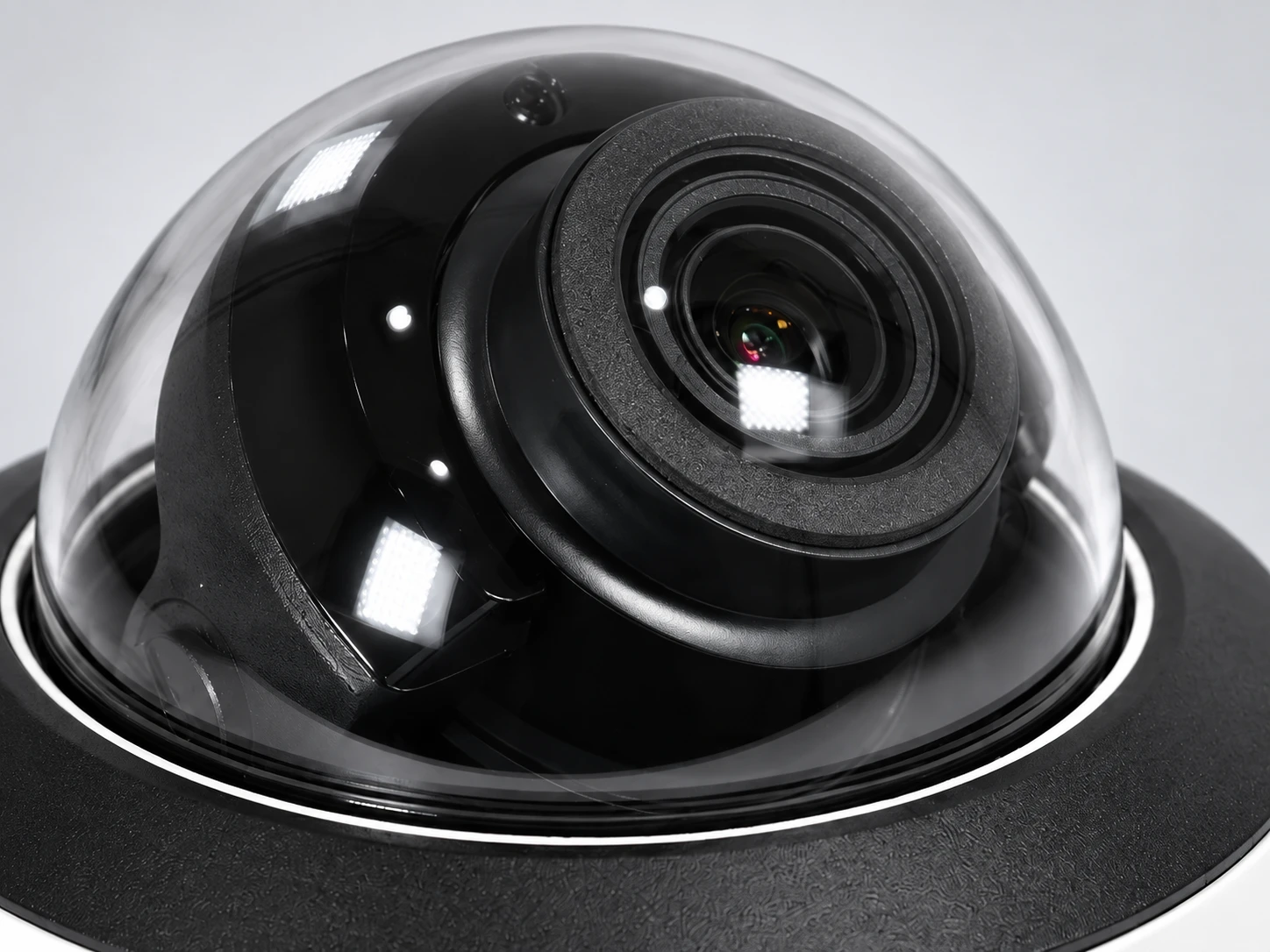

5MP Motorized Lens IP Vandal Dome

A 5MP IP vandal dome with a motorized lens for adjusting the scene during commissioning. Compare it with a fixed-lens model when the final framing is uncertain. Check mounting clearances and the environmental specifications for the intended camera position.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Key features

Feature illustrations are representative. See specifications for this model.

Resolution: A monitor shows a brick courtyard with a circular zoom inset revealing brick and leaf detail.

5MP Resolution

Sharp detail from a 1/2.7 inch CMOS sensor.

Motorized Lens

2.8-12mm.

Night Vision

Illumination reach: 98~164 Feet.

Smart motion detection: A camera watches a driveway while a tablet highlights a walking person with a yellow box.

Smart Detection

Object Detection.

Feature illustration: White dome security camera fixed beneath an exterior soffit, rain streaks and crisp water droplets, approaching storm beyond a commercial entrance

IP67 Weatherproof

Sealed for outdoor installation.

Feature illustration: Security camera beside two neatly arranged alternative power connections, Ethernet plug and low-voltage barrel lead, both clearly shown separately

Flexible Power

DC 12V / PoE.

NDAA Compliant

Conforms to National Defense Authorization Act requirements.

Technical specifications

Features	H.265 \| PoE \| DWDR
Lens	2.8-12mm
MP	5MP
Image Resolutions	5MP (2592×1944), 1080P (1920×1080), 720P (1280×720), D1, CIF, (480×240)
Sensor Size	1/2.7 inch CMOS
IR Distance	98~164 Feet
IP Rating	IP67
Voltage	DC 12V / PoE
Temp Range	-22° F ~ +140° F/ Less than 95% RH
Dimensions	5.55in x 3.94in x 3.94in
