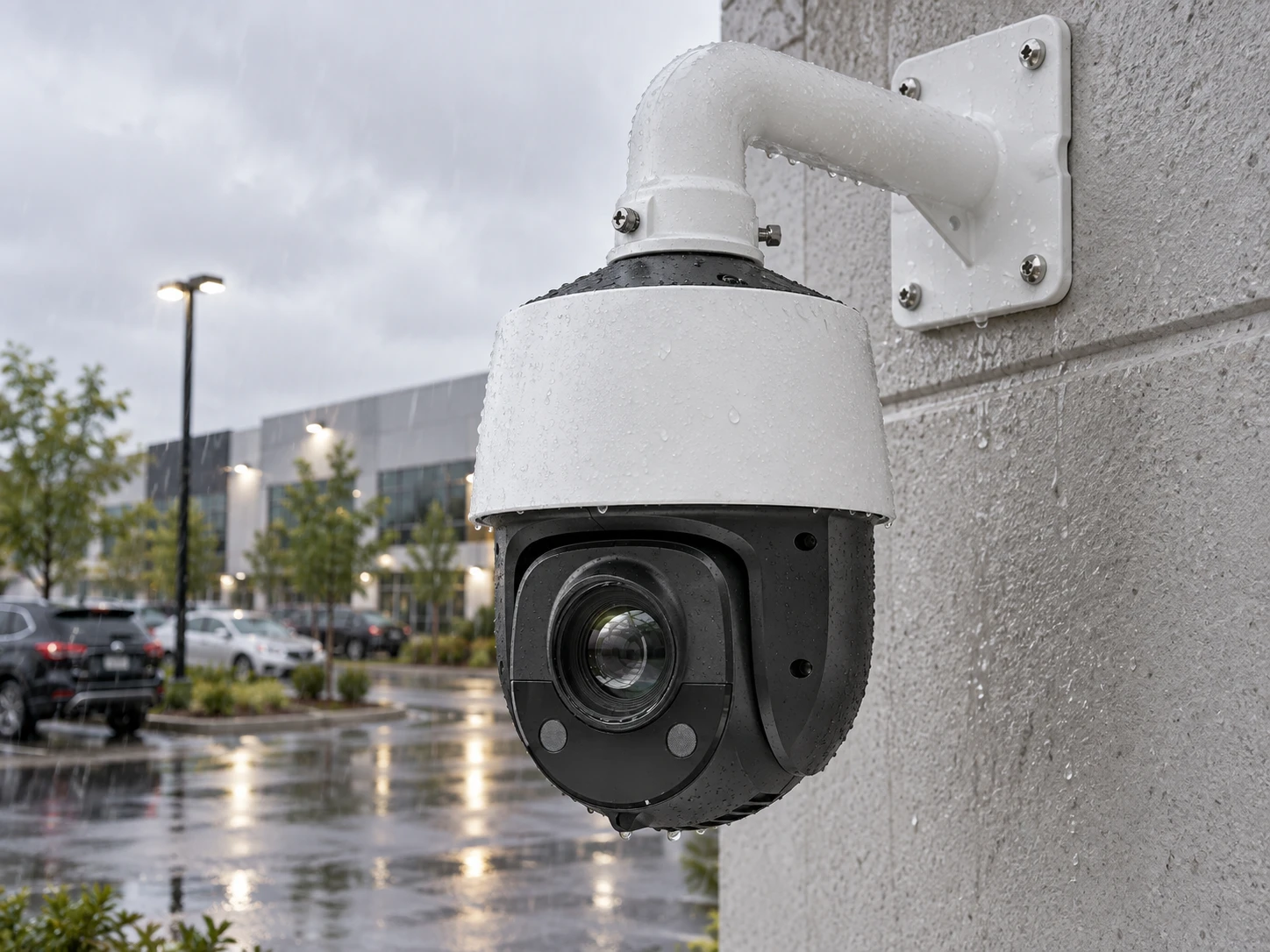

IPPTZ-SB8IR25XAI3 8MP 25X Zoom Smart AI IP PTZ Camera — Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.

1 of 7
Open full-resolution image

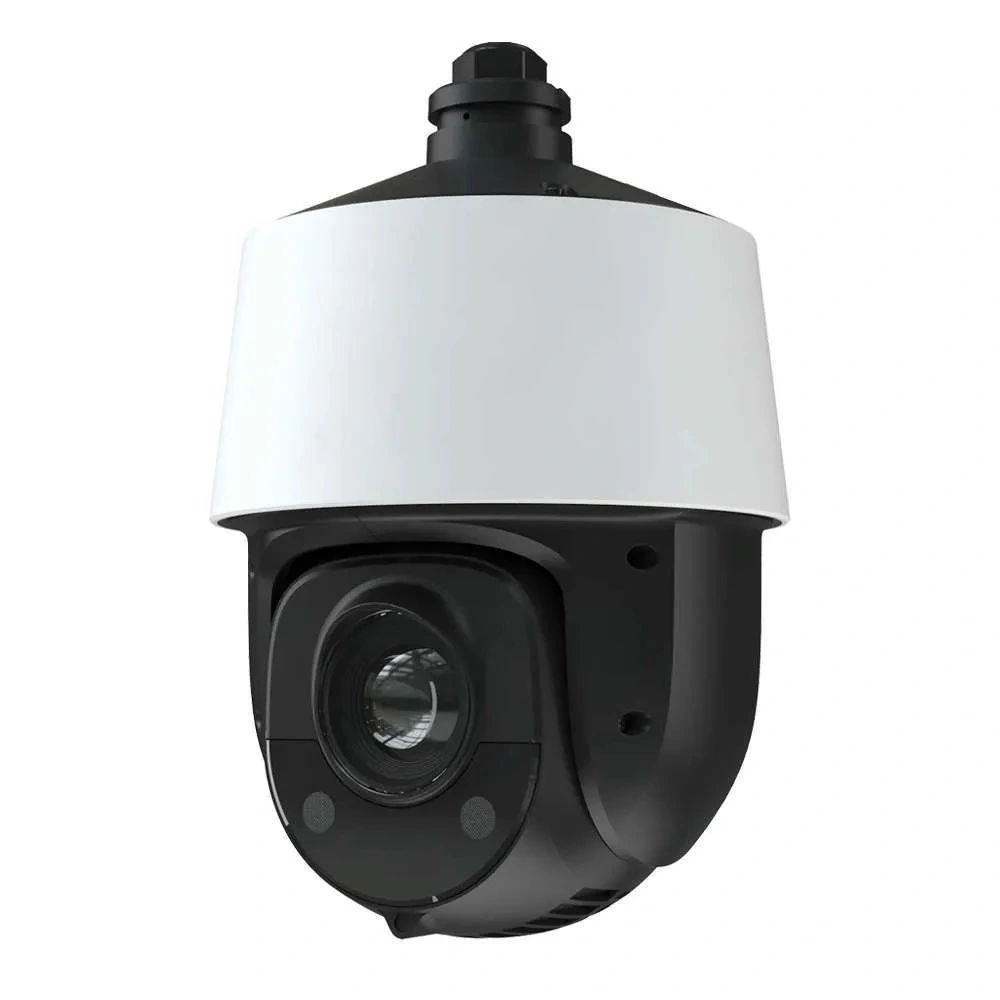

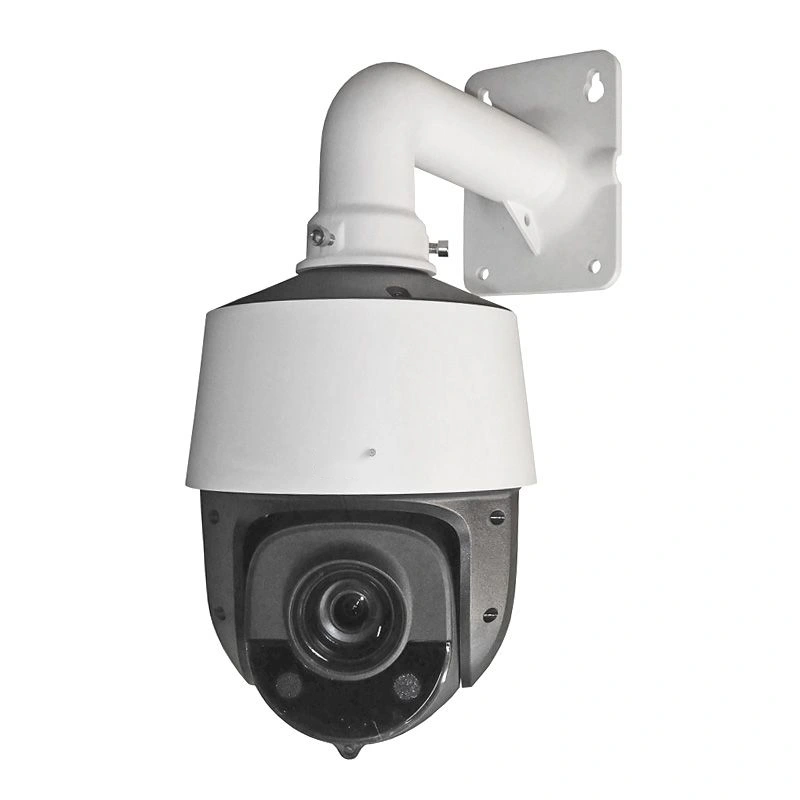

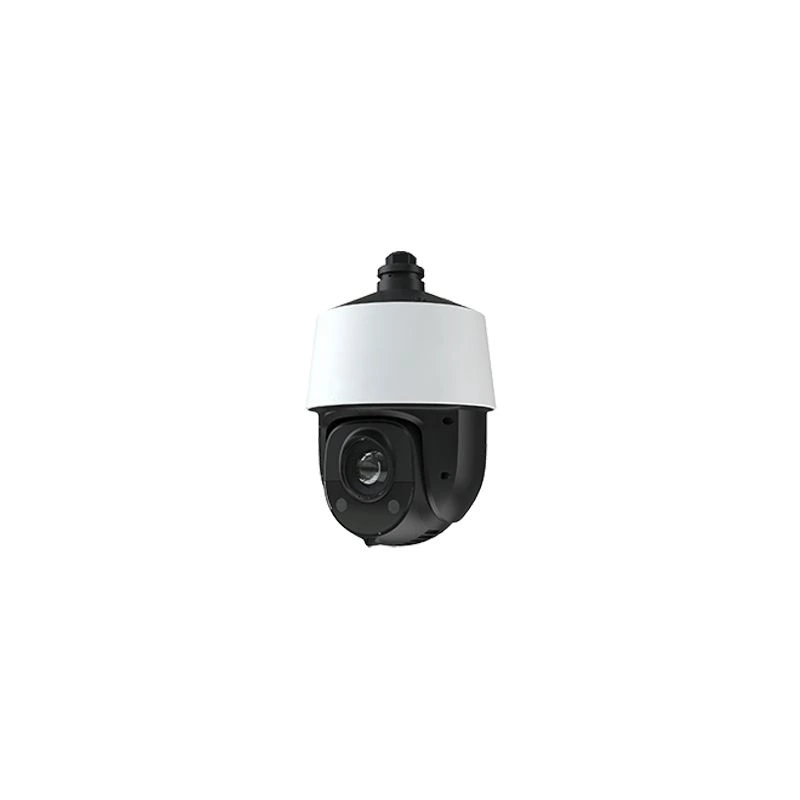

IPPTZ-SB8IR25XAI3

8MP 25X Zoom Smart AI IP PTZ Camera

The 4K member of the 4-inch PTZ pair. A 1/2.8-inch Sony sensor delivers 3840×2160 through the same 4.8–120mm 25× optical zoom lens, with 16× digital zoom on top and infrared to 150 m (492 ft). Smart tracking of people and vehicles, perimeter rules and face detection run on the camera. Power is PoE+ or 12 V DC at up to 24 W, protection is IP66 and IK10 including the lens window, and a microSD slot, alarm and audio interfaces are built in. Confirm the PoE+ class of the switch port before commissioning.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Key features

Feature illustrations are representative. See specifications for this model.

Resolution: A monitor shows a brick courtyard with a circular zoom inset revealing brick and leaf detail.

8MP on a SONY Sensor

4K-class detail from a 1/2.8" SONY progressive-scan CMOS.

Optical zoom: A wall-mounted PTZ camera beside a monitor showing a zoomed-in view of a distant gate.

25× Optical Zoom

4.8–120mm lens reads detail at distance without digital blur.

Infrared night vision: A wall-mounted camera at dusk beside a monitor showing a clear black-and-white view of a side path.

492 ft IR Range

Dual-stack Smart IR out to 150 meters.

Auto tracking: A PTZ camera follows a man walking along a sidewalk while a monitor highlights him with a yellow box.

Smart Tracking + AI

Follows people and vehicles; tripwire, intrusion and face recognition.

Feature illustration: High-power PoE injector and a large PTZ camera on a clean installation bench with a single Ethernet power/data connection, clear rugged connectors

PoE+ Powered

Runs on a standard 802.3at port or DC12V, max 24W.

Feature illustration: Outdoor bullet security camera weathering driving rain above a windblown industrial courtyard, droplets frozen in side light

IP66 / IK10

Weather and impact rated, –40°F to 140°F.

Feature illustration: ndaa

NDAA Compliant

Conforms to National Defense Authorization Act requirements.

Technical specifications

Features1/2.8" SONY progressive scan CMOS | WDR, BLC, HLC, 3D DNR, Smart IR | Smart tracking of people and vehicles | Face recognition, perimeter protection (tripwire, intrusion, region entry/exit) | H.265+/H.265/H.264+/H.264/MJPEG | PoE+ (802.3at) or DC12V | ONVIF, API and SDK
Lensf=4.8-120mm lens, 25x optical zoom, 16x digital zoom
MP8MP
Image Resolutions3840×2160, 2560×1440, 1920×1080, 1280×720
Sensor Size1/2.8" SONY progressive scan CMOS
IR Distance150m (492 FT)
IP RatingIP66, IK10
VoltageDC12V (3A) or PoE+ (802.3at, class 3), max 24W
Temp Range(-40°F ~ 140°F), 90%RH or less (non-condensing), cold start at -22°F

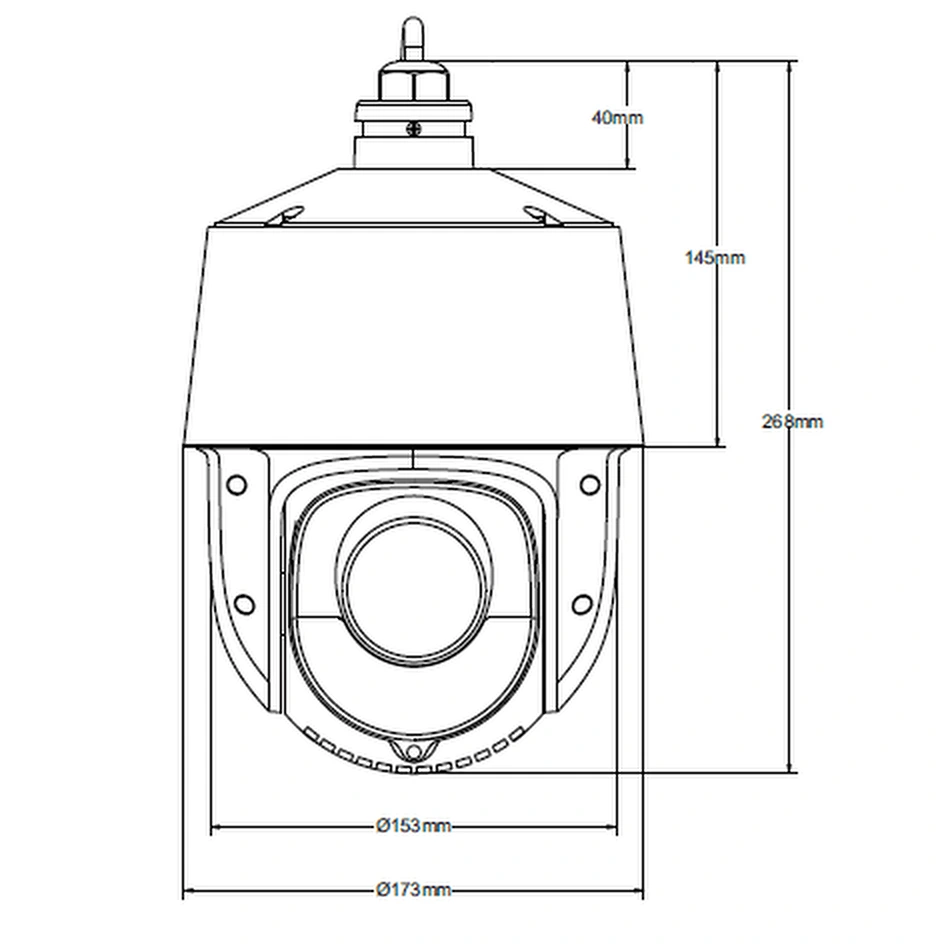

DimensionsΦ173mm × 268mm (Φ 6.8 inch × 10.6 inch)
WeightApprox. 2.1 Kg (4.63 lb.)
Audio1 MIC input, 1 line-level output
SD Card CompatibleOne MicroSD slot, up to 256G
Perimeter ProtectionYes
Object DetectionYes
Face DetectionYes
Face RecognitionYes
Smart Motion DetectionYes
LPRNo

Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.

Related PTZ cameras

View all PTZ cameras

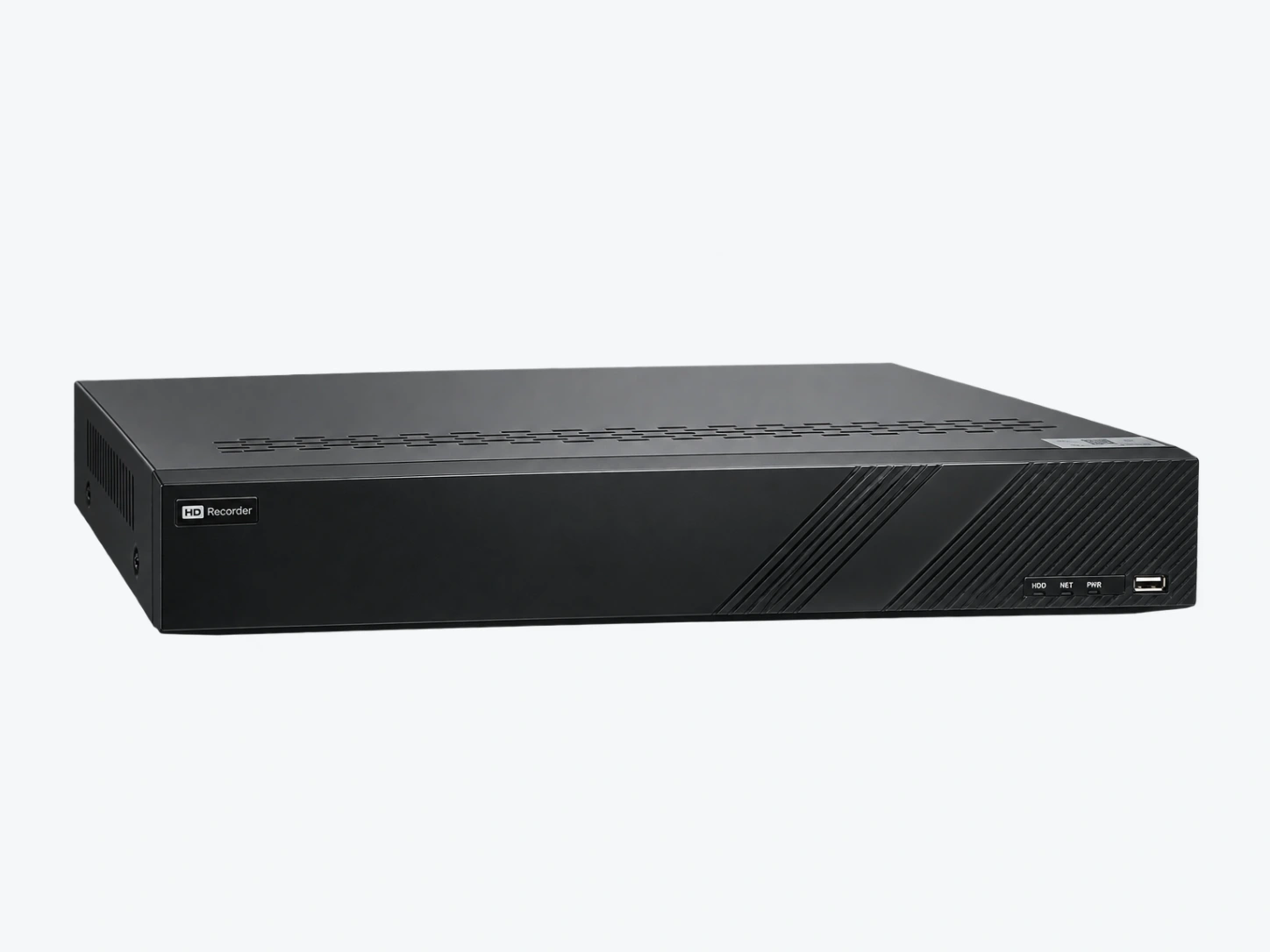

Recorders to pair with IPPTZ-SB8IR25XAI3
