IPPTZ-SB4IR25XAI2

4MP 25X Starlight Smart AI IP PTZ Camera

A 4-inch PTZ for open ground. The 4.8–120mm lens gives 25× optical zoom from a 4MP starlight sensor rated to 0.01 lux in color, and the infrared array reaches 160 m (525 ft). Smart tracking follows a person or vehicle that crosses a tripwire or enters a zone, zooming to hold it in frame. It runs on PoE+ or 12 V DC, is rated IP66 with an IK10 housing, and includes a microSD slot, alarm in/out and audio in/out. Plan the mount and PoE+ budget as part of the installation.

Product datasheet View at Security Camera King

Pricing and availability are provided by our authorized reseller.

Key features

Feature illustrations are representative. See specifications for this model.

Low-light: A wall-mounted security camera beside a tablet showing a clear night view of a softly lit courtyard.

4MP Starlight Sensor

1/2.7" BSI CMOS holds color down to 0.01 lux.

Optical zoom: A wall-mounted PTZ camera beside a monitor showing a zoomed-in view of a distant gate.

25× Optical Zoom

4.8–120mm lens reads detail at distance without digital blur.

Infrared night vision: A wall-mounted camera at dusk beside a monitor showing a clear black-and-white view of a side path.

525 ft IR Range

Dual-stack Smart IR out to 160 meters.

Auto tracking: A PTZ camera follows a man walking along a sidewalk while a monitor highlights him with a yellow box.

Smart Tracking + AI

Follows people and vehicles; tripwire, intrusion and face recognition.

Feature illustration: High-power PoE injector and a large PTZ camera on a clean installation bench with a single Ethernet power/data connection, clear rugged connectors

PoE+ Powered

Runs on a standard 802.3at port or DC12V, max 23W.

Feature illustration: Outdoor bullet security camera weathering driving rain above a windblown industrial courtyard, droplets frozen in side light

IP66 / IK10

Weather and impact rated, –40°F to 140°F.

Feature illustration: ndaa

NDAA Compliant

Conforms to National Defense Authorization Act requirements.

Technical specifications

FeaturesStarlight | WDR, BLC, HLC, 3D DNR, Smart IR | Smart tracking of people and vehicles | Face recognition, perimeter protection (tripwire, intrusion, region entry/exit) | H.265+/H.265/H.264+/H.264/MJPEG | PoE+ (802.3at) or DC12V | ONVIF, API and SDK
Lensf=4.8-120mm lens, 25x optical zoom
MP4MP
Image Resolutions2560×1440, 1920×1080, 1280×720
Sensor Size1/2.7" progressive scan CMOS, BSI
IR Distance160m (525 FT)
IP RatingIP66, IK10
VoltageDC12V (3A) or PoE+ (802.3at), max 23W
Temp Range(-40°F ~ 140°F), 90%RH or less (non-condensing), cold start at -22°F

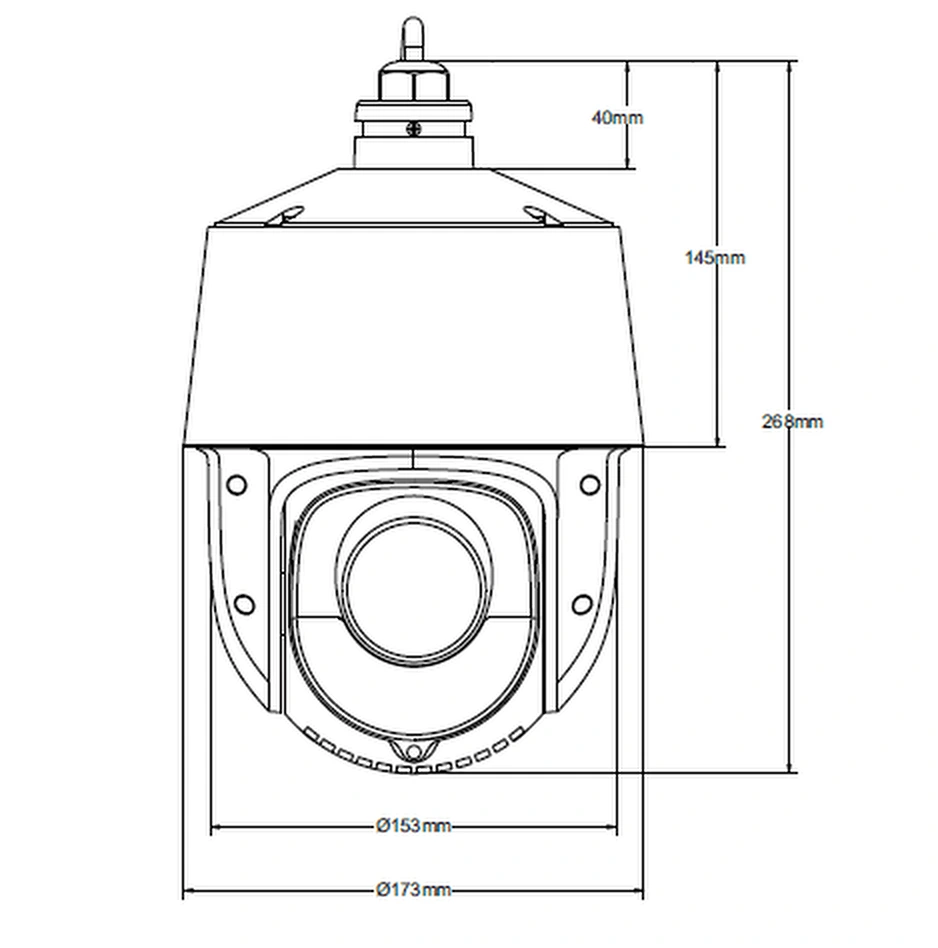

DimensionsΦ173mm × 268mm (Φ 6.8 inch × 10.6 inch)
WeightApprox. 2.1 Kg (4.63 lb.)
Audio1 MIC input, 1 line-level output
SD Card CompatibleOne MicroSD slot, up to 256G
Perimeter ProtectionYes
Object DetectionYes
Face DetectionYes
Face RecognitionYes
Smart Motion DetectionYes
LPRNo

Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
