4 Channels
Records up to 4 cameras with 40 Mbps total bandwidth.

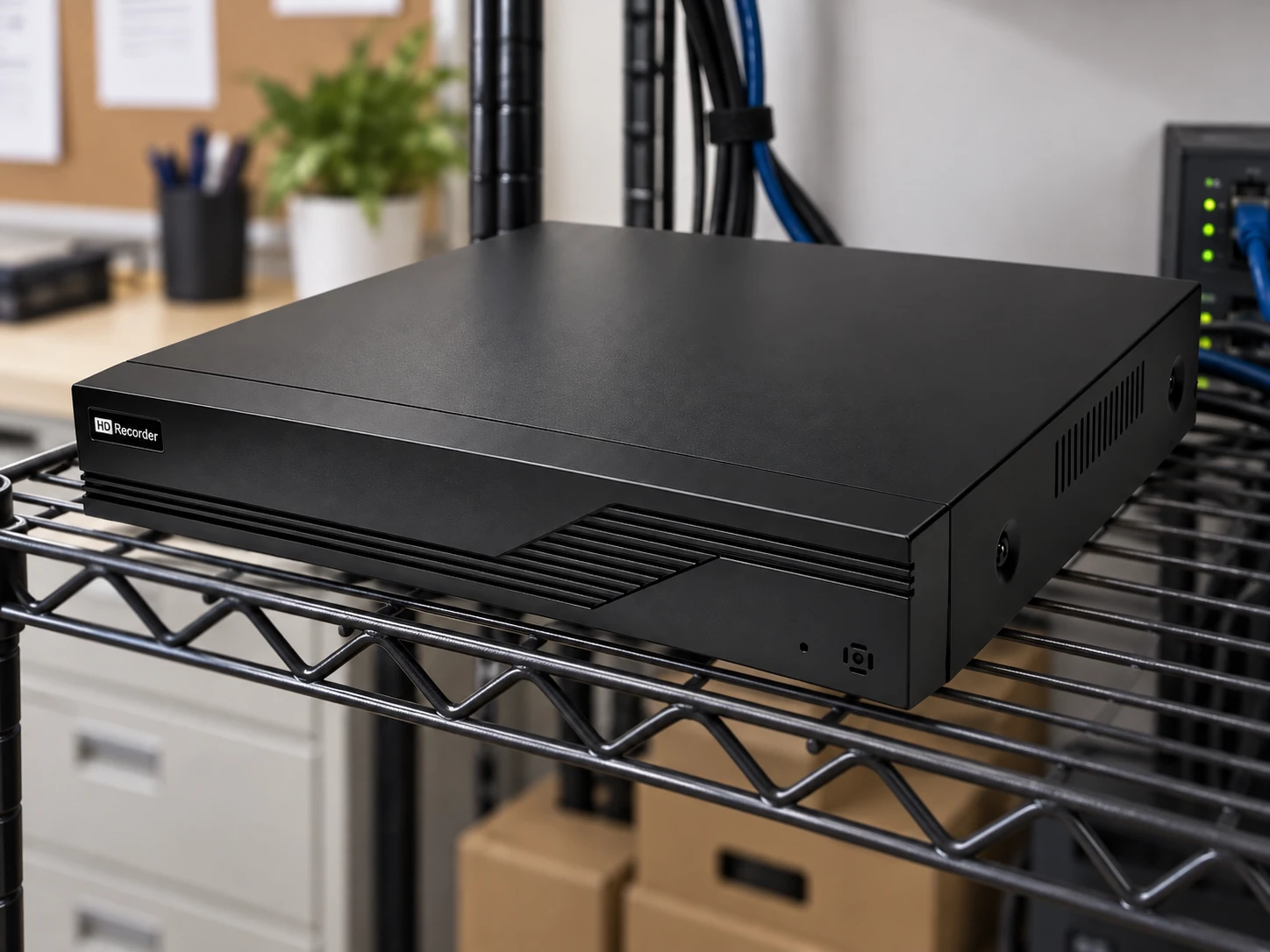

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.
1 of 6
Open full-resolution image PENDVR-SBE4ME

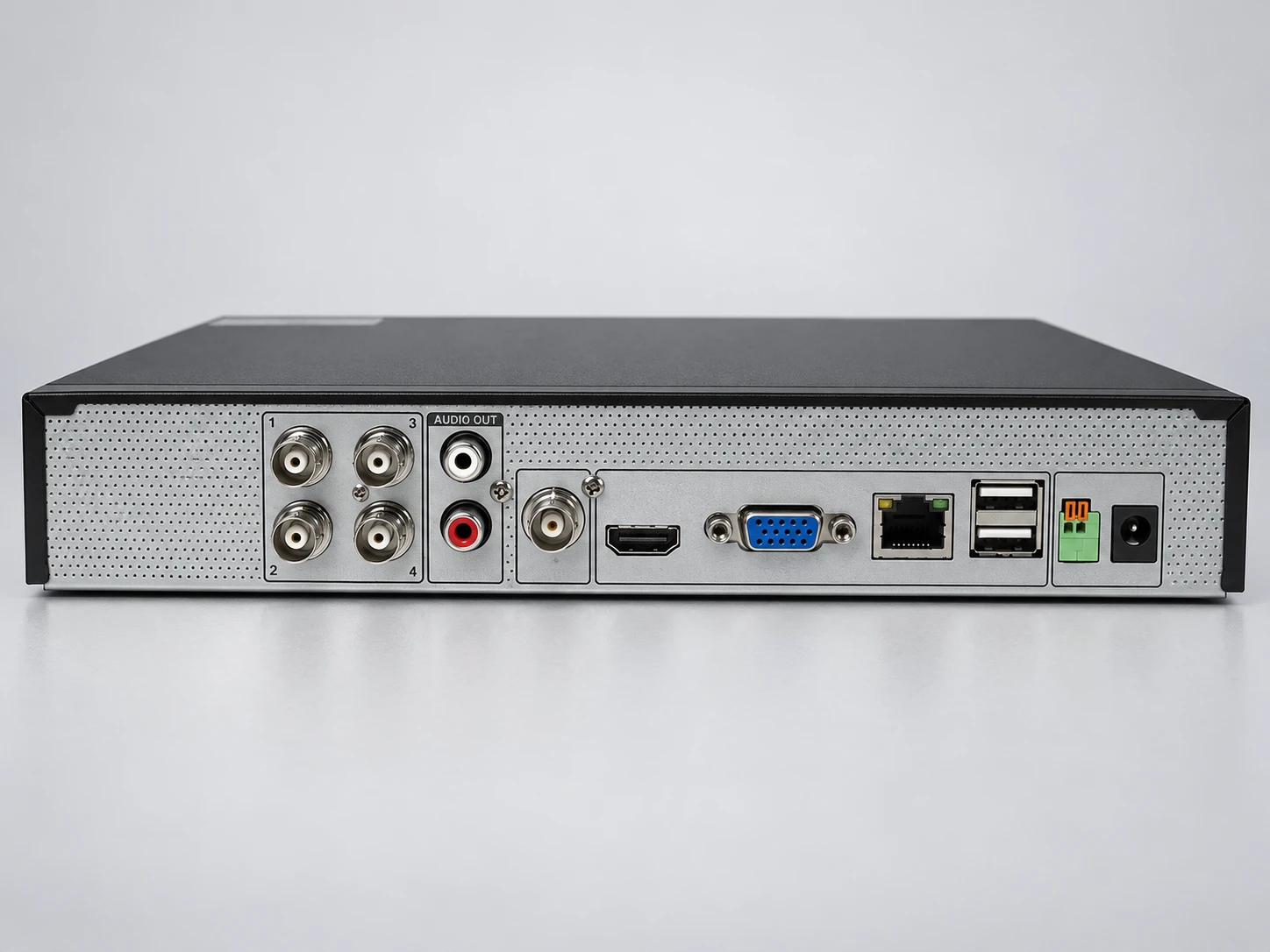

4CH Sibell 1080P Penta-Brid DVR (Mini 1U)
A four-channel 1080P Penta-Brid recorder in the Mini 1U format. Compare this model when working with an existing camera set rather than selecting a higher-resolution recorder by default. Check the supported signal formats and channel limits against every connected camera.
Pricing and availability are provided by our authorized reseller.
Key features
Feature illustrations are representative. See specifications for this model.
1 SATA Bay
Storage capacity sized to the recorder's channel count and retention needs.
Modern Compression
H.265 keeps storage consumption down.
Penta-Brid Inputs
Records HD-over-coax (AHD/TVI/CVI), legacy analog, and IP cameras together.
NDAA Compliant
Conforms to National Defense Authorization Act requirements.
Technical specifications
| Number Of Cameras | 4 |
|---|---|
| Number Of SATA Connections | 1 |
| Has Alarm Inputs / Outputs | No |
| Video Output Types | HDMI/VGA/BNC |
| Video Output Resolutions: | (1920x1080)/(1280x1024)/(1024x768) |
| Size | Mini 1U |
| Resolutions Capable | 5M-N/4M-N/1080P/1080P-N/720P/WD1 |
| Max Bandwidth | 40 Mbps |
| Display Screen Split | 1/4/6/9 |
| Compression of Video | H.265 |
|---|---|
| Perimeter Protection | No |
| Object Detection | No |
| Face Detection | No |
| Face Recognition | No |
| Smart Motion Detection | No |
| LPR | No |
| Available installed storage | 2TB, 4TB, 6TB, 10TB |
| Largest offered drive configuration | 1 × 10TB Seagate surveillance drives |
Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
