IPOD-SB4IR28AD

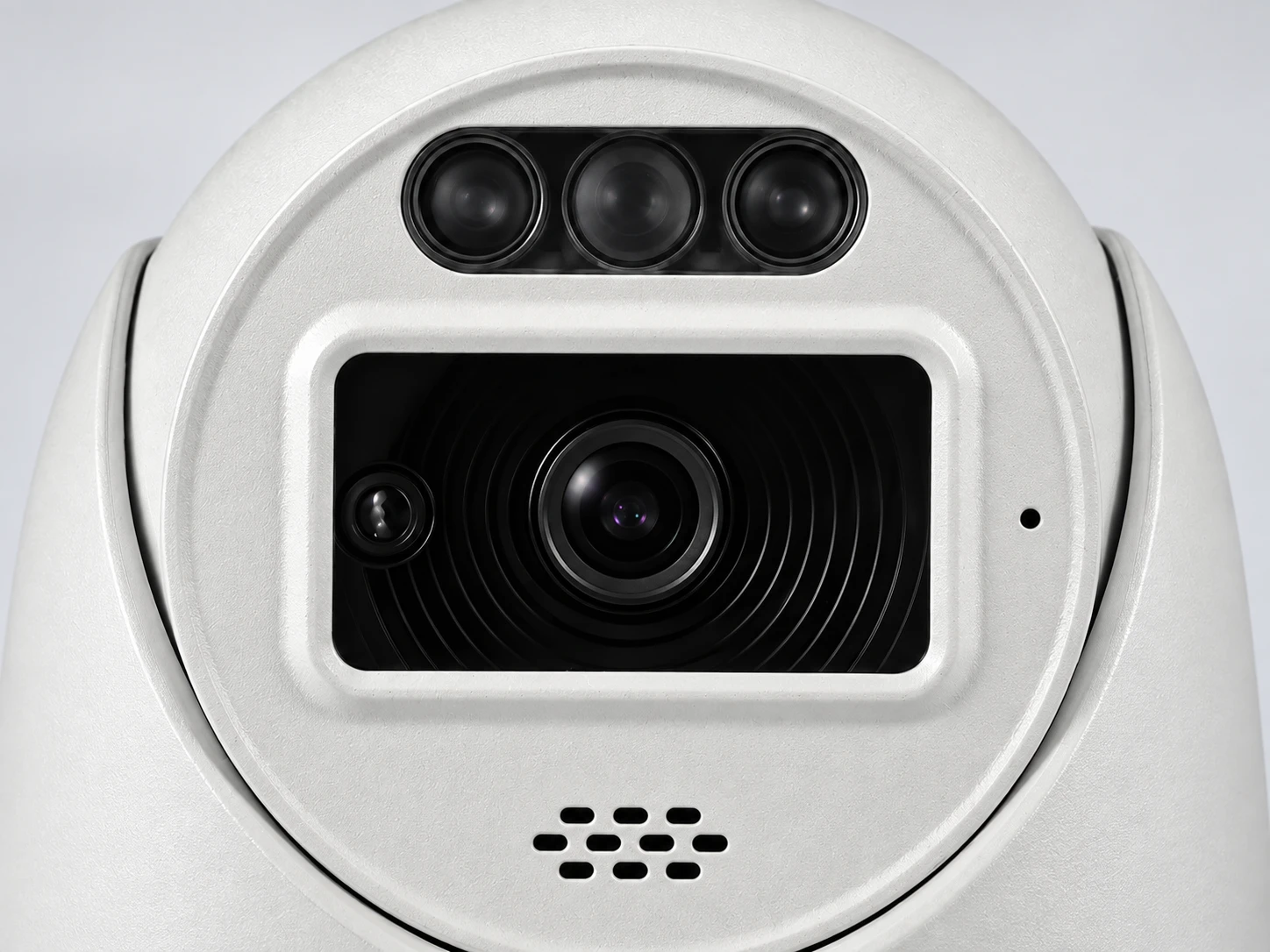

4MP Active Deterrence IP Dome with Speaker & Mic

This 4MP IP dome includes both a speaker and microphone for its active-deterrence feature set. Plan how those functions will be used at the camera location. Verify supported audio behavior and event settings before relying on a particular response workflow.

Pricing and availability are provided by our authorized reseller.

Technical specifications

FeaturesBuilt-in Mic,1CH built-in speaker | Built-in micro SD card slot, up to 256GB | Blue and red light warning (flashing alternately) | H.265+/H265/H.264+/H264/ MJPEG coding
Lens2.8mm F1.4
MP4MP
Image Resolutions4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
Sensor Size1 / 3 CMOS
IR Distance98-164 feet
IP RatingIP66
Voltage12V DC/POE
Temp Range-22°F~140°F
Dimensions4.4in x 3.9in
Weight1.4 lb
AudioBuilt In Mic
SD Card CompatibleYes
Perimeter ProtectionYes
Object DetectionNo
Face DetectionNo
Face RecognitionNo
Smart Motion DetectionNo
LPRNo

Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.

Additional documents
