IP66 Weatherproof
Sealed against rain, dust, and wash-downs for harsh outdoor exposure.

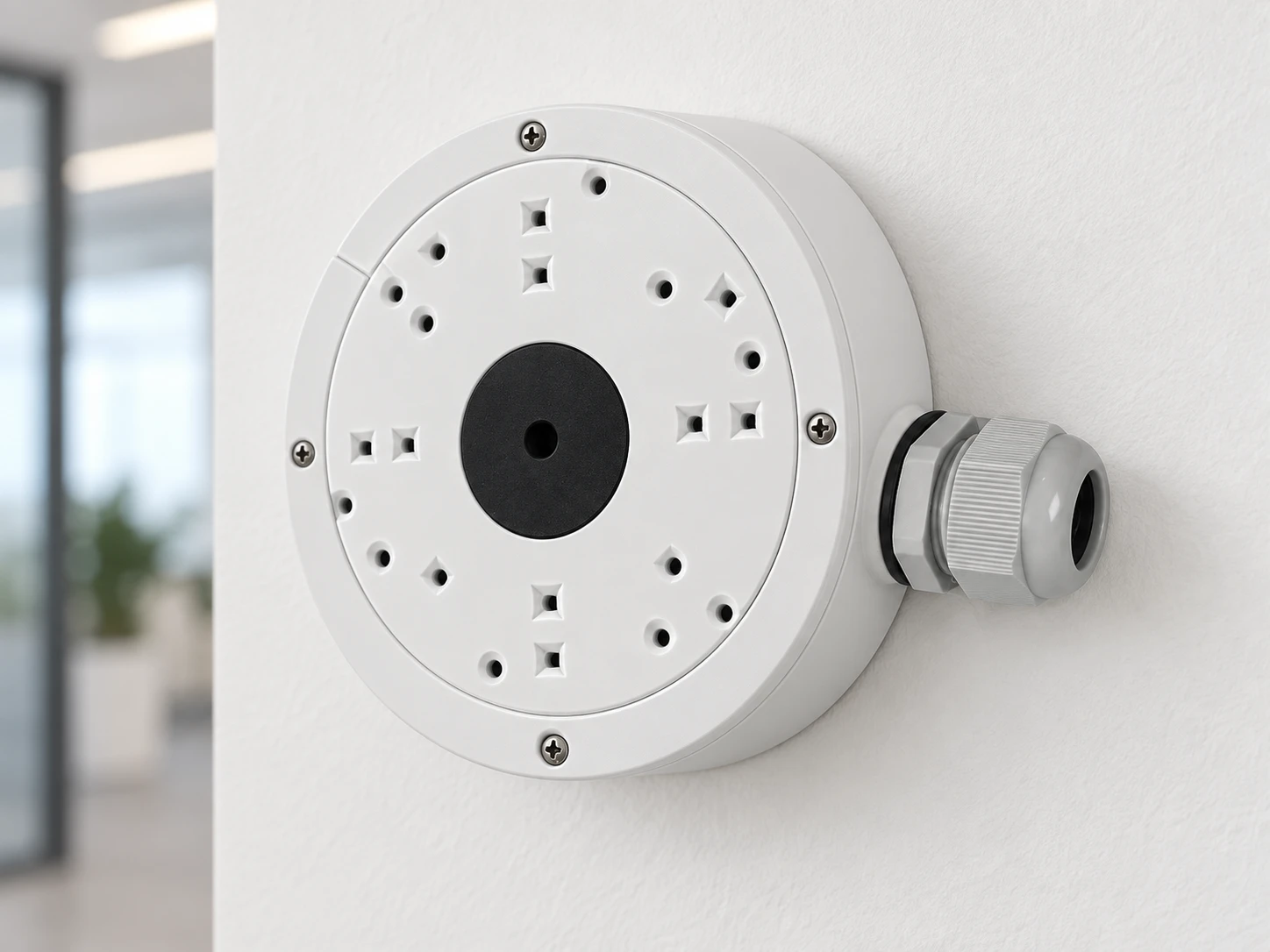

Illustrated installation. Surrounding equipment, furnishings and separate mounting accessories are not included.
1 of 7
Open full-resolution image JB-SB302

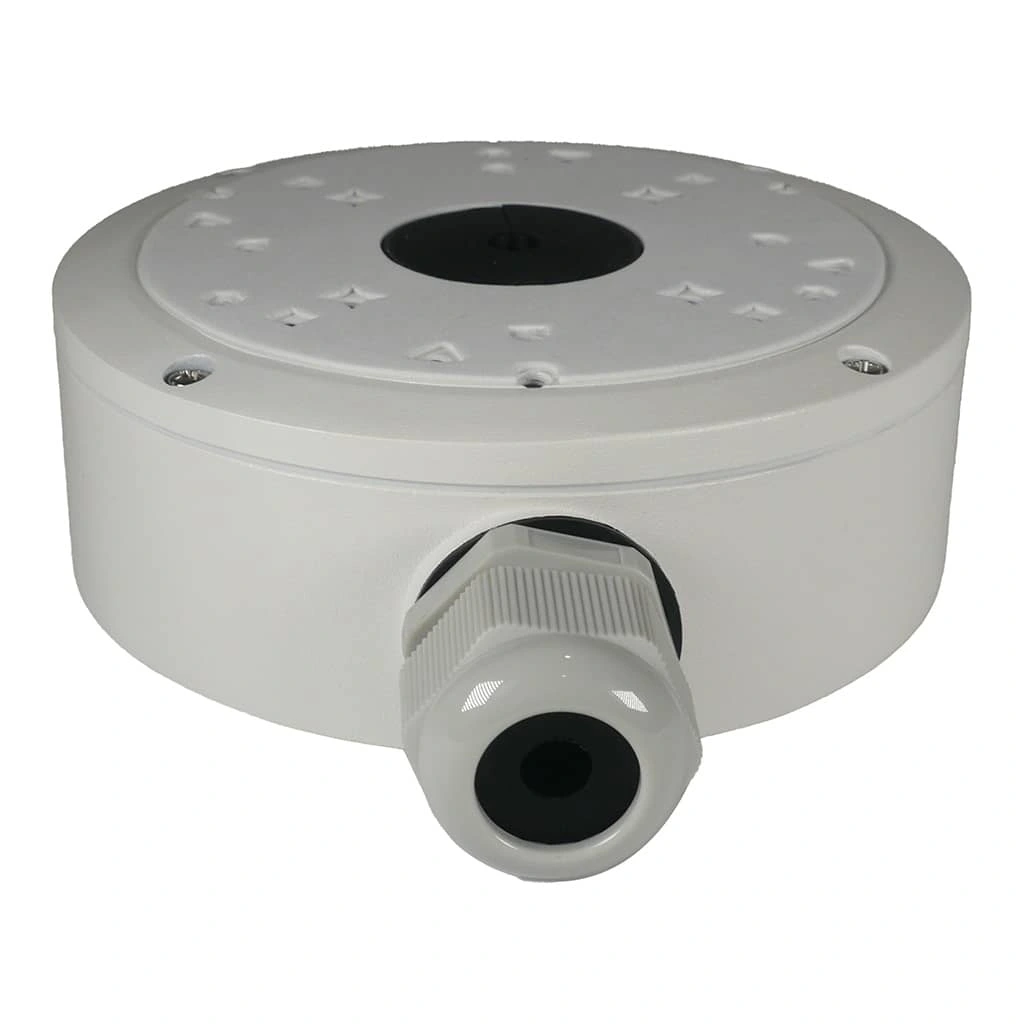

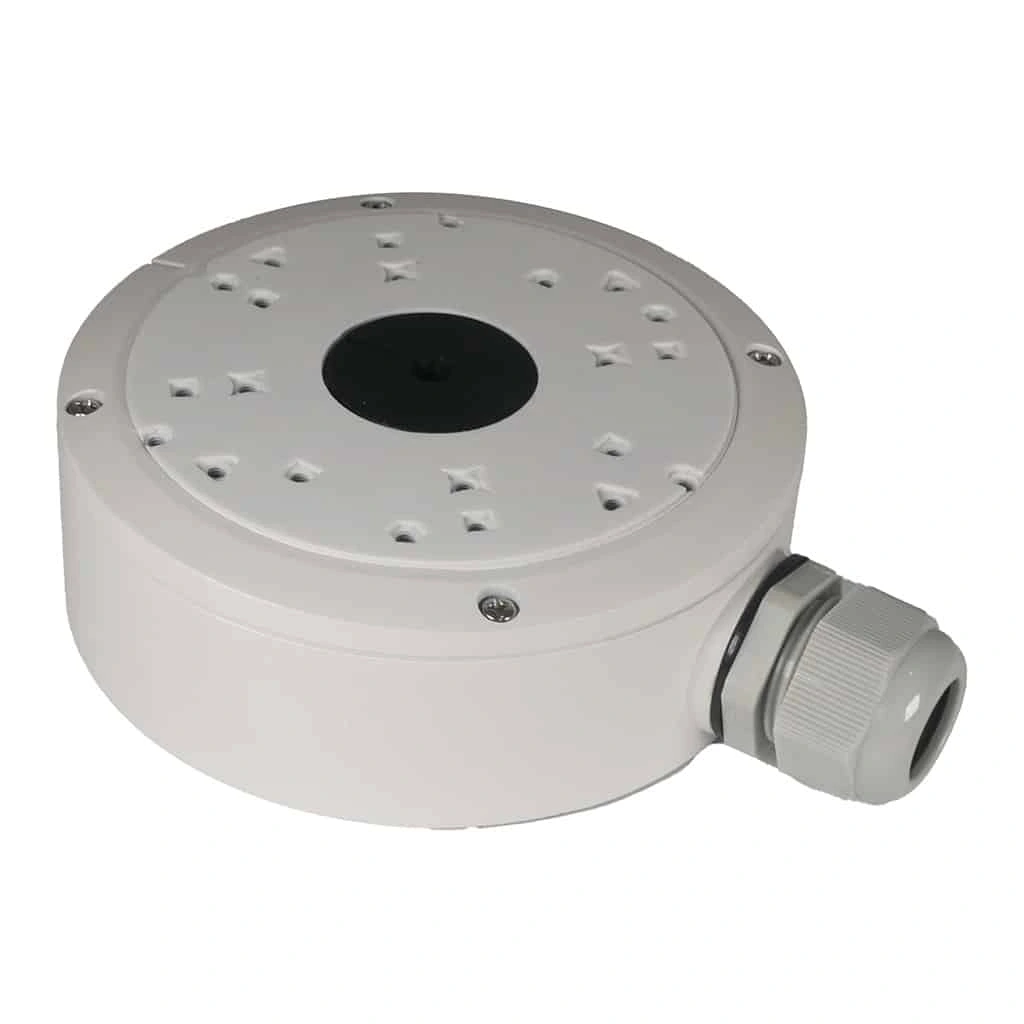

Junction Box Mount for Sibell Cameras
An aluminum-alloy junction box that mounts to a wall or ceiling and holds the camera's cable joint inside a sealed IP66 housing. Cable can enter from the bottom or the side, so the run can be surface-mounted or brought through the wall. The body measures 139.3 x 50 mm and weighs 512 g. The mounting surface should take at least three times the combined weight of the box and the camera, and the camera's fixing pattern should be checked against the box before ordering.
Pricing and availability are provided by our authorized reseller.
Key features
Feature illustrations are representative. See specifications for this model.

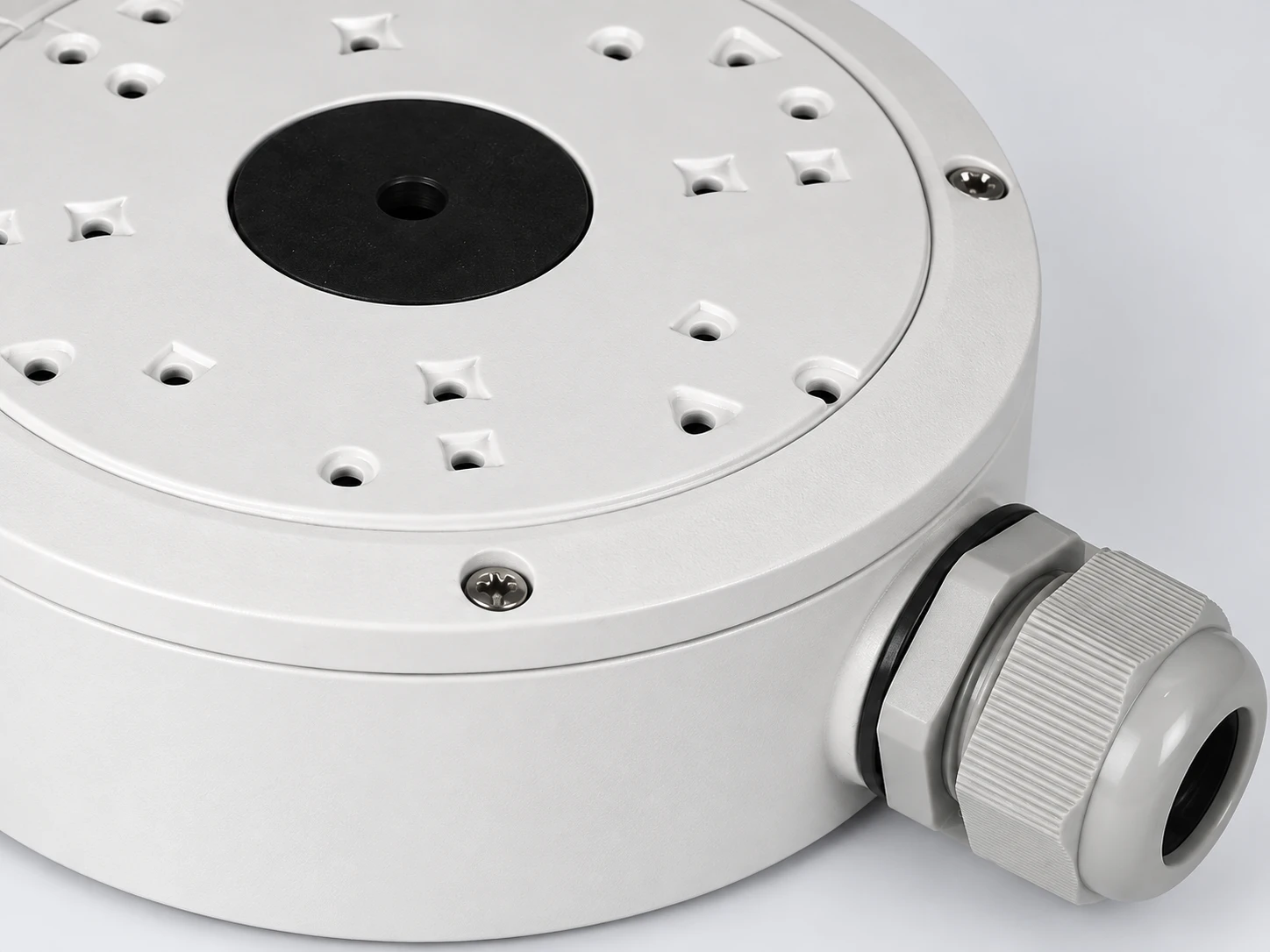

Dual Cable Inlets
Bottom and side entry points give conduit runs flexible routing.
Aluminum Alloy Build
Spray-treated aluminum housing in white for lasting durability.
Wall or Ceiling
Mounts to either surface as a clean, protected termination point.
Wide Operating Range
Rated -40°F to +140°F and 10% to 90% humidity.
Technical specifications
| Material | Aluminum alloy |
|---|---|
| Color | White |
| Dimensions | 139.3x50mm |
| Net Weight | 512g |
| Protection Grade | IP66 |
| Working Temperature | -40°C~+60°C (-40°F~+140°F) |
|---|---|
| Working Humidity | 10%~90% |
| Mounting | Wall or ceiling mounting |

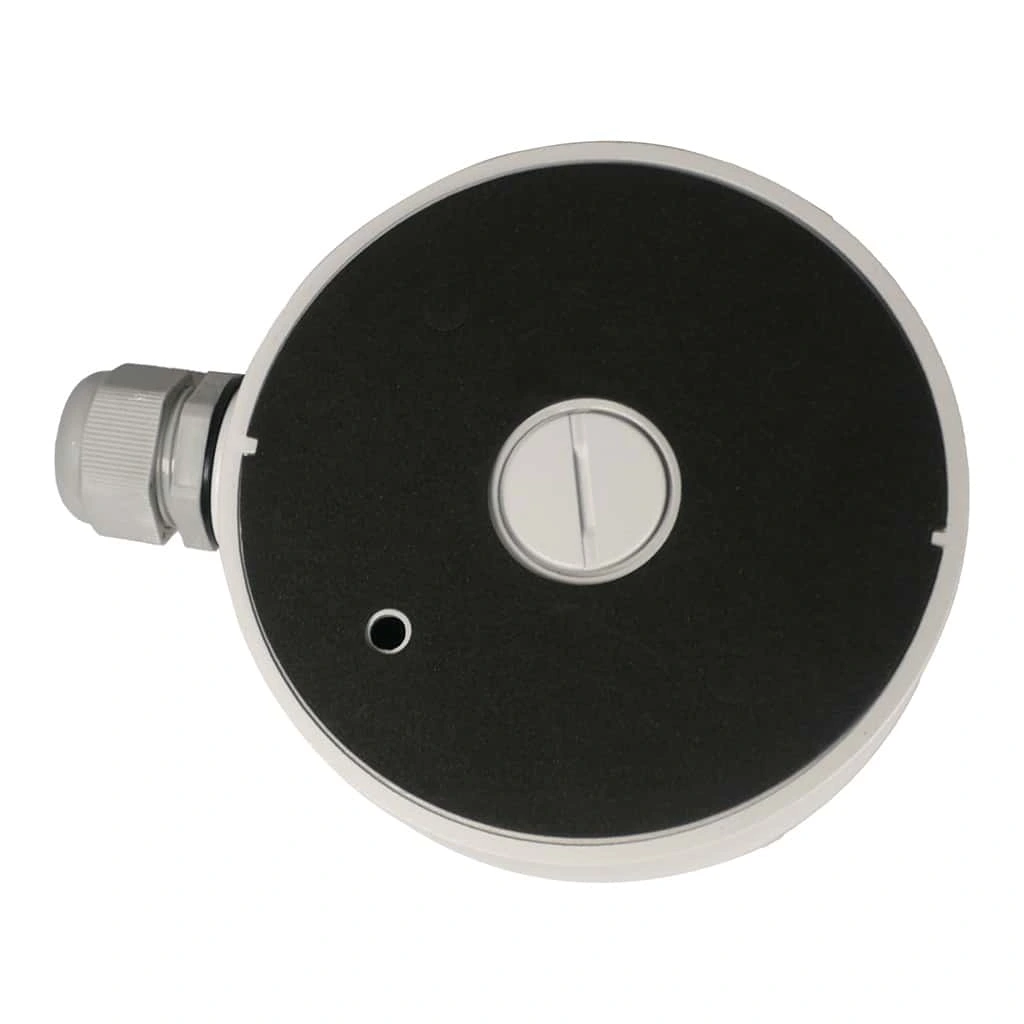

| Cable Entry | Bottom inlet and side inlet |
| Load Bearing | Wall must withstand at least 3 times the weight of camera and junction box |
Review the product datasheet when specifying the system. Confirm any conflicting values with the reseller before installation.
